Antenna Status Check

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. Select the "Antenna Status Check".

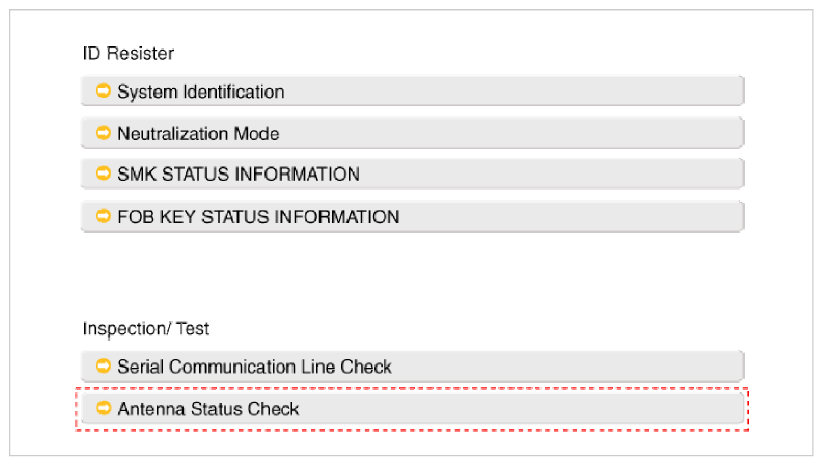

    Fig 1: Display - ID Register Screen
    G09366116Courtesy of HYUNDAI MOTOR AMERICA
  3. After IG ON, select the "Antenna Status Check".

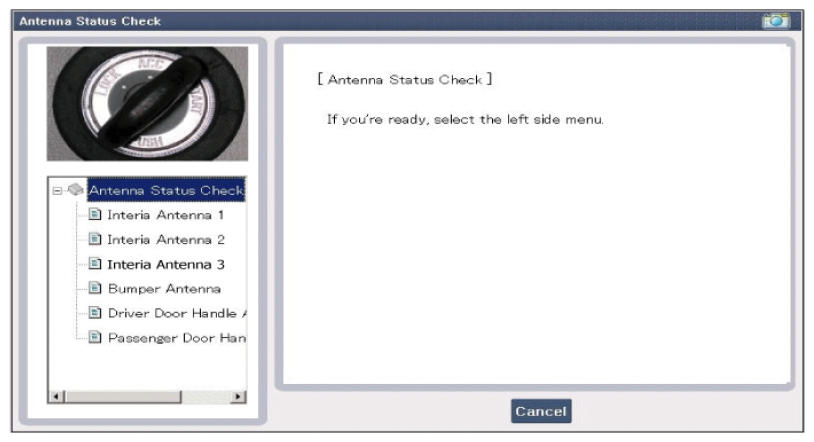

    Fig 2: Display - Antenna Status Check Screen
    G09366117Courtesy of HYUNDAI MOTOR AMERICA
  4. Set the smart key near the related antenna and operate it with a GDS.

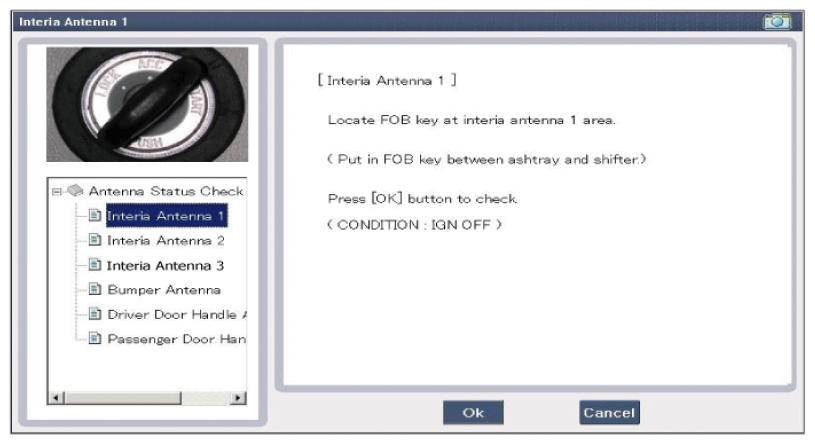

    Fig 3: Display - Interia 1 Antenna Screen
    G09366118Courtesy of HYUNDAI MOTOR AMERICA

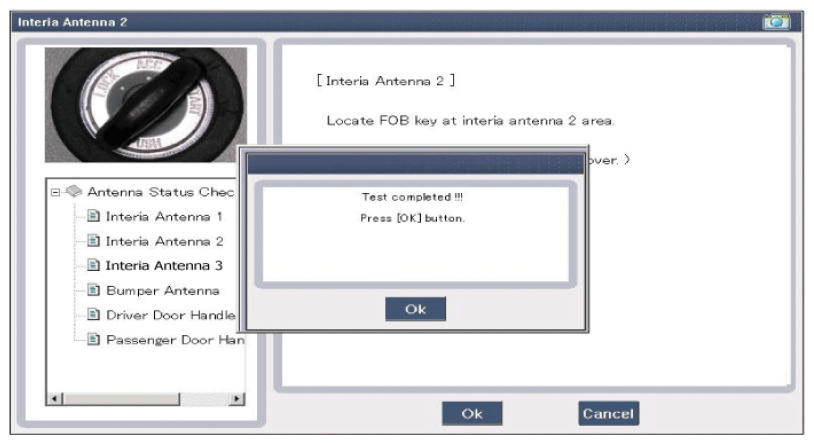

    Fig 4: Display - Interia Antenna Test Completed Screen
    G09366119Courtesy of HYUNDAI MOTOR AMERICA
  5. If the smart key runs normal, the related antenna, smart key (transmission, reception) and exterior receiver are normal.
  6. Antenna status
    1. INTERIOR Antenna 1
    2. INTERIOR Antenna 2
    3. INTERIOR Antenna 3
    4. BUMPER/Trunk Antenna
    5. DRV_DR Antenna
    6. AST_DR Antenna
