Signal Waveform

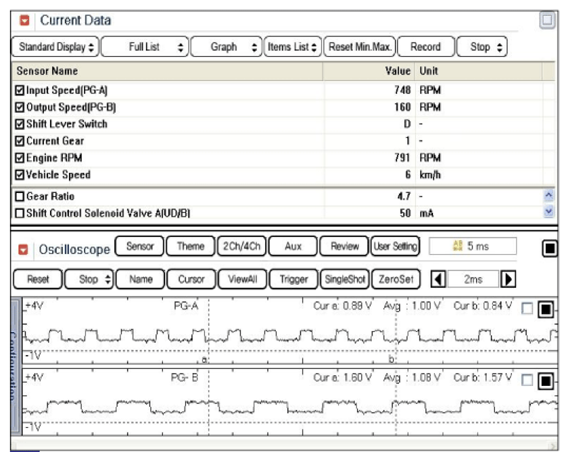

Fig 1: Display - Input & Output Speed Sensor Current Data And Signal Waveform (1 Of 2)
G09150615Courtesy of HYUNDAI MOTOR AMERICA

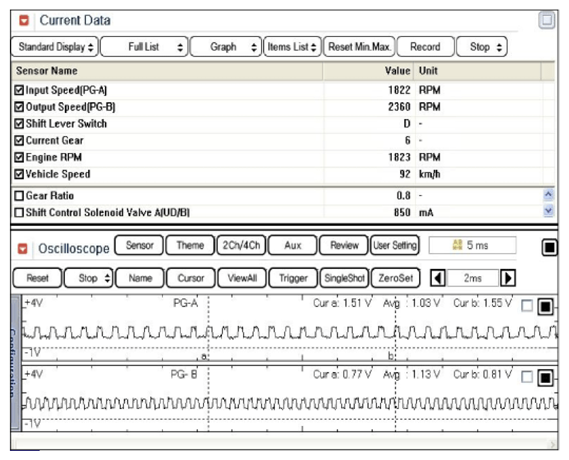

Fig 2: Display - Input & Output Speed Sensor Current Data And Signal Waveform (2 Of 2)
G09150616Courtesy of HYUNDAI MOTOR AMERICA
