Components Location

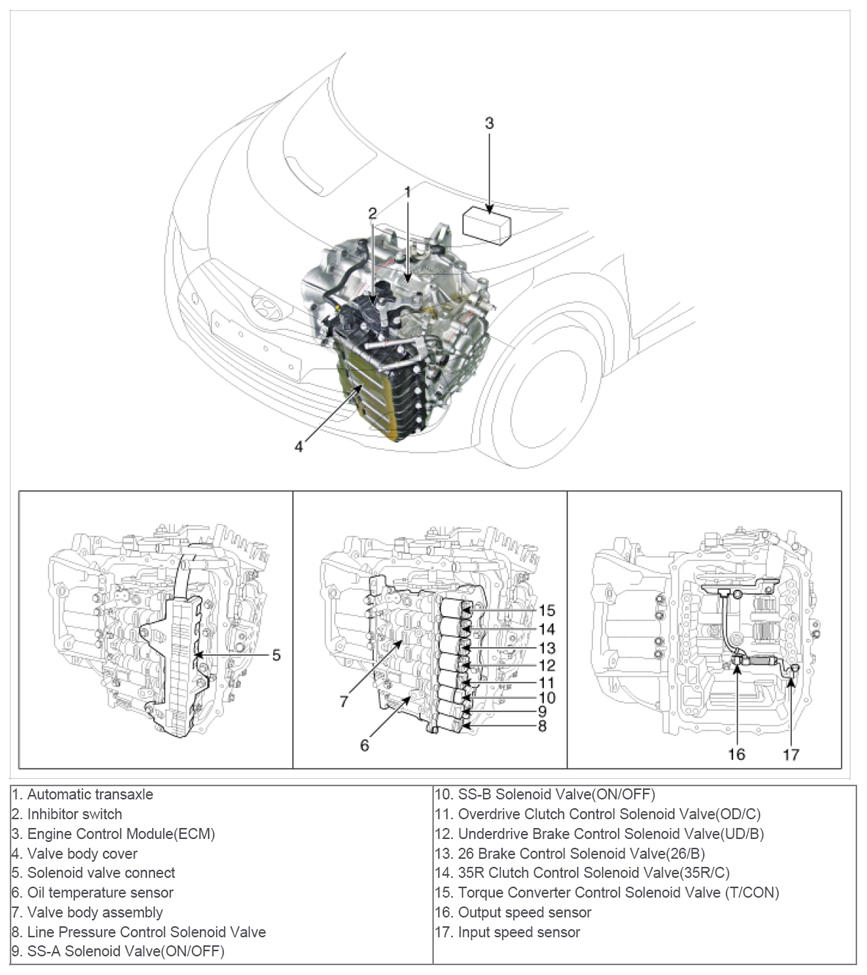

Fig 1: Identifying Automatic Transaxle System Related Components
Courtesy of HYUNDAI MOTOR AMERICA

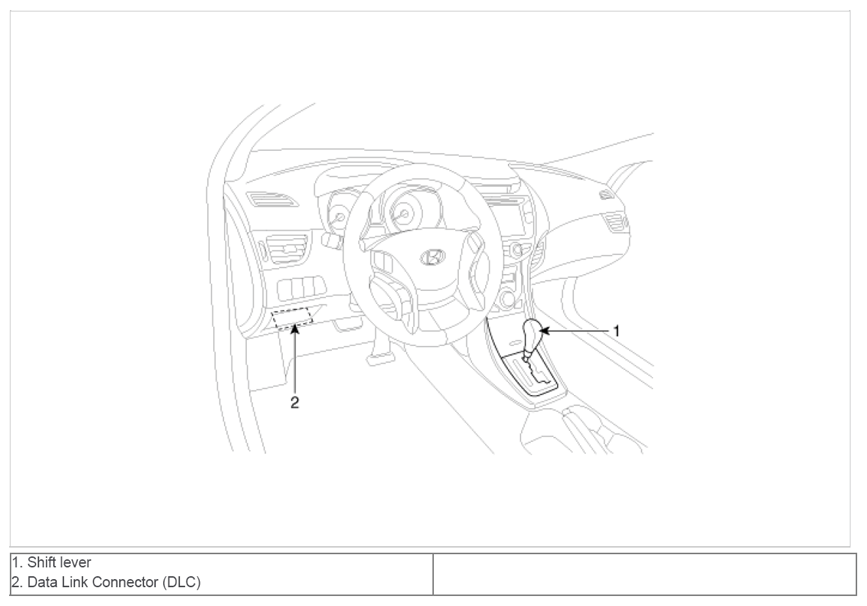

Fig 2: Identifying Shift Lever And Data Link Connector
Courtesy of HYUNDAI MOTOR AMERICA
