Veloster Turbo, Automatic Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System Diagnosis (1 Of 2) - Turbo
>>
DTC P0130: O2 Sensor Circuit (Bank 1/Sensor 1)
>>
General Information
>>
Diagnostic Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Diagnostic Circuit Diagram

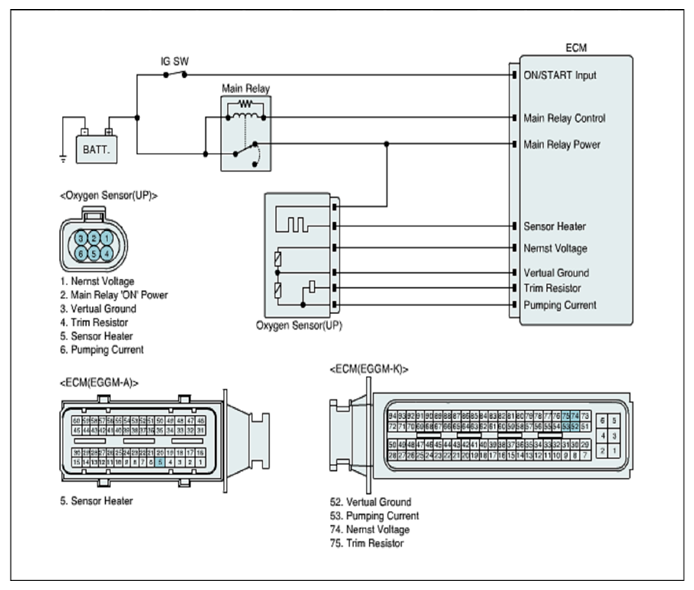

Fig 1: Oxygen Sensor (UP) Diagnostic Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
