Fuse: Locations

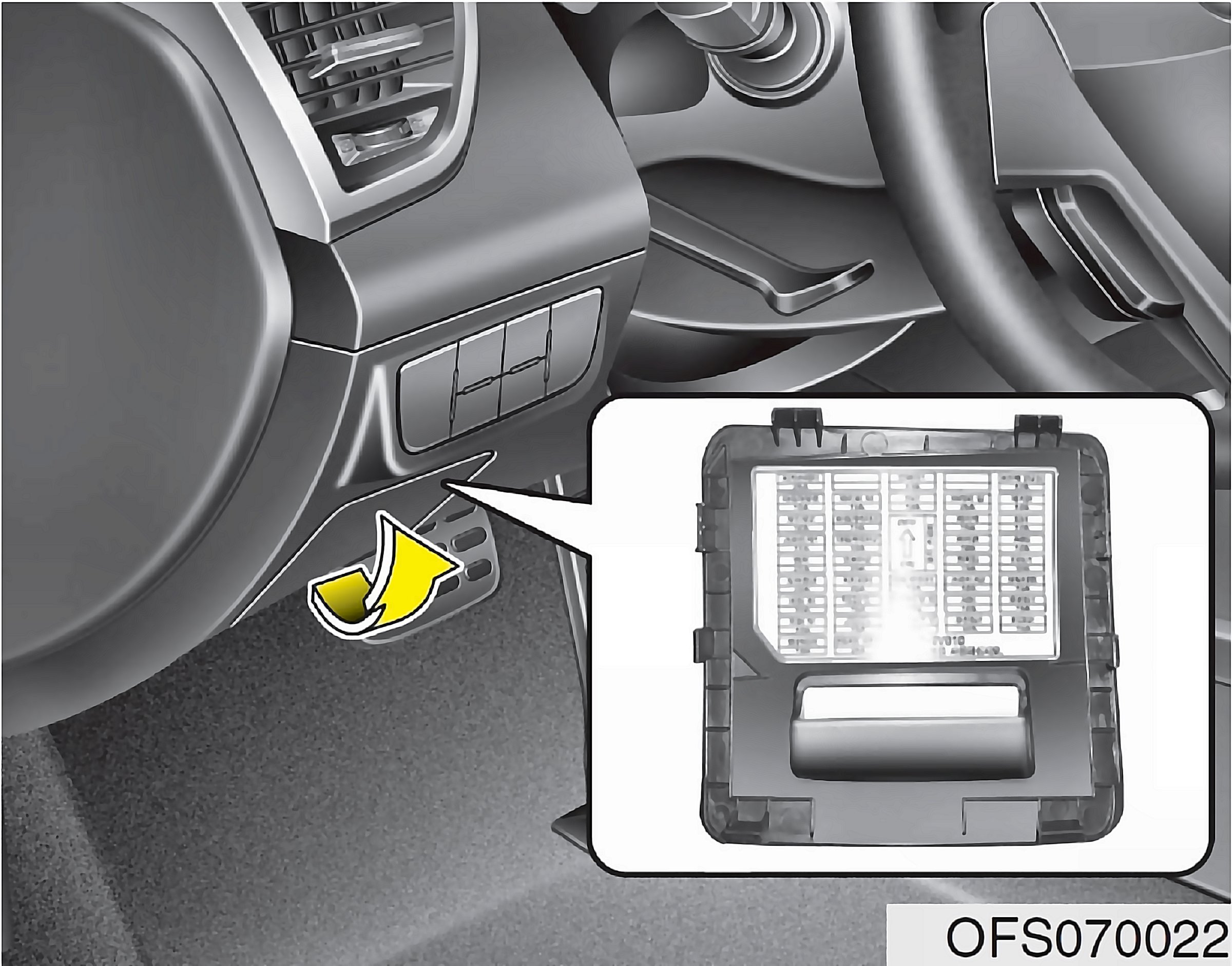

Inner Fuse Panel Location:

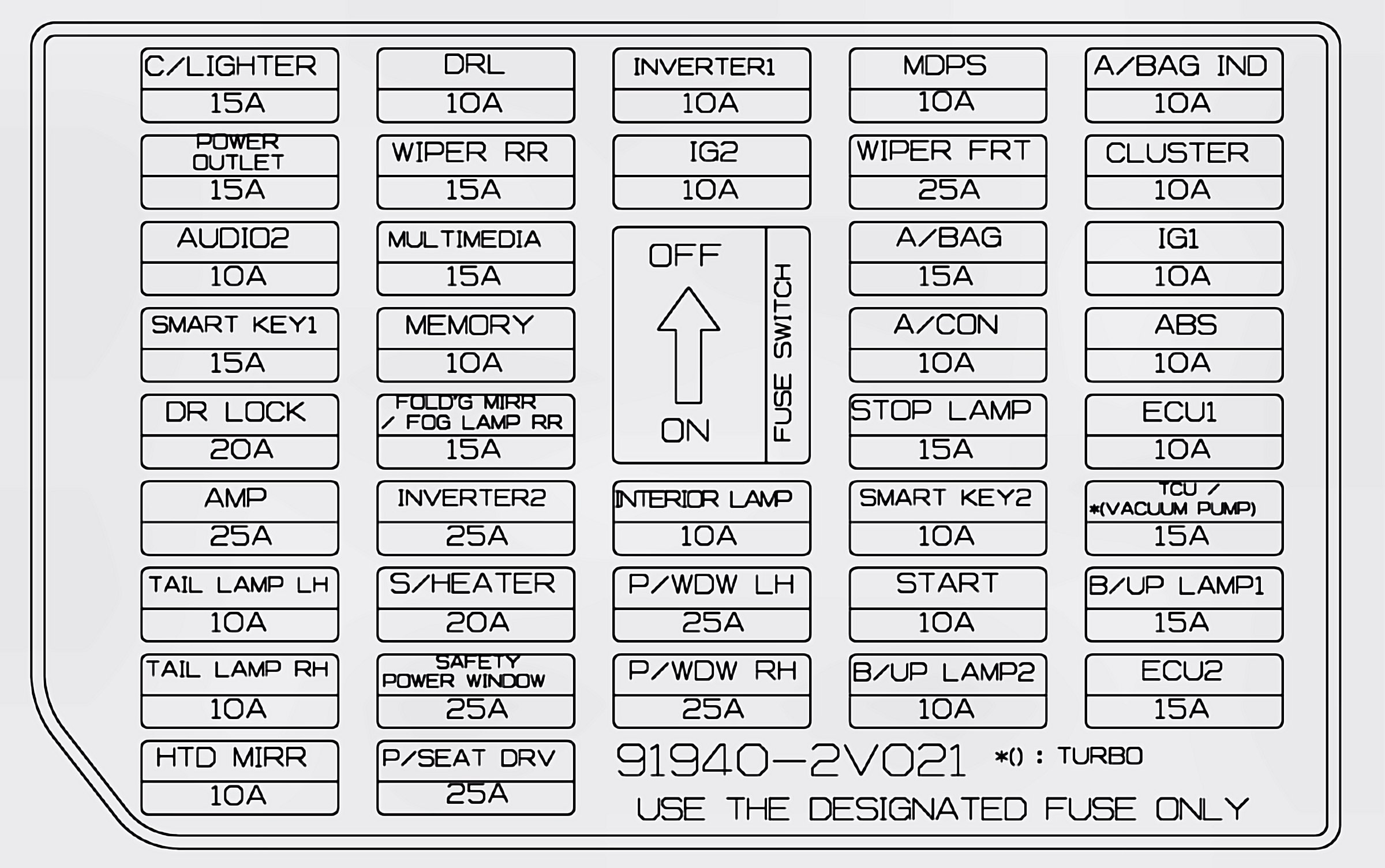

Inner Fuse Panel Description:

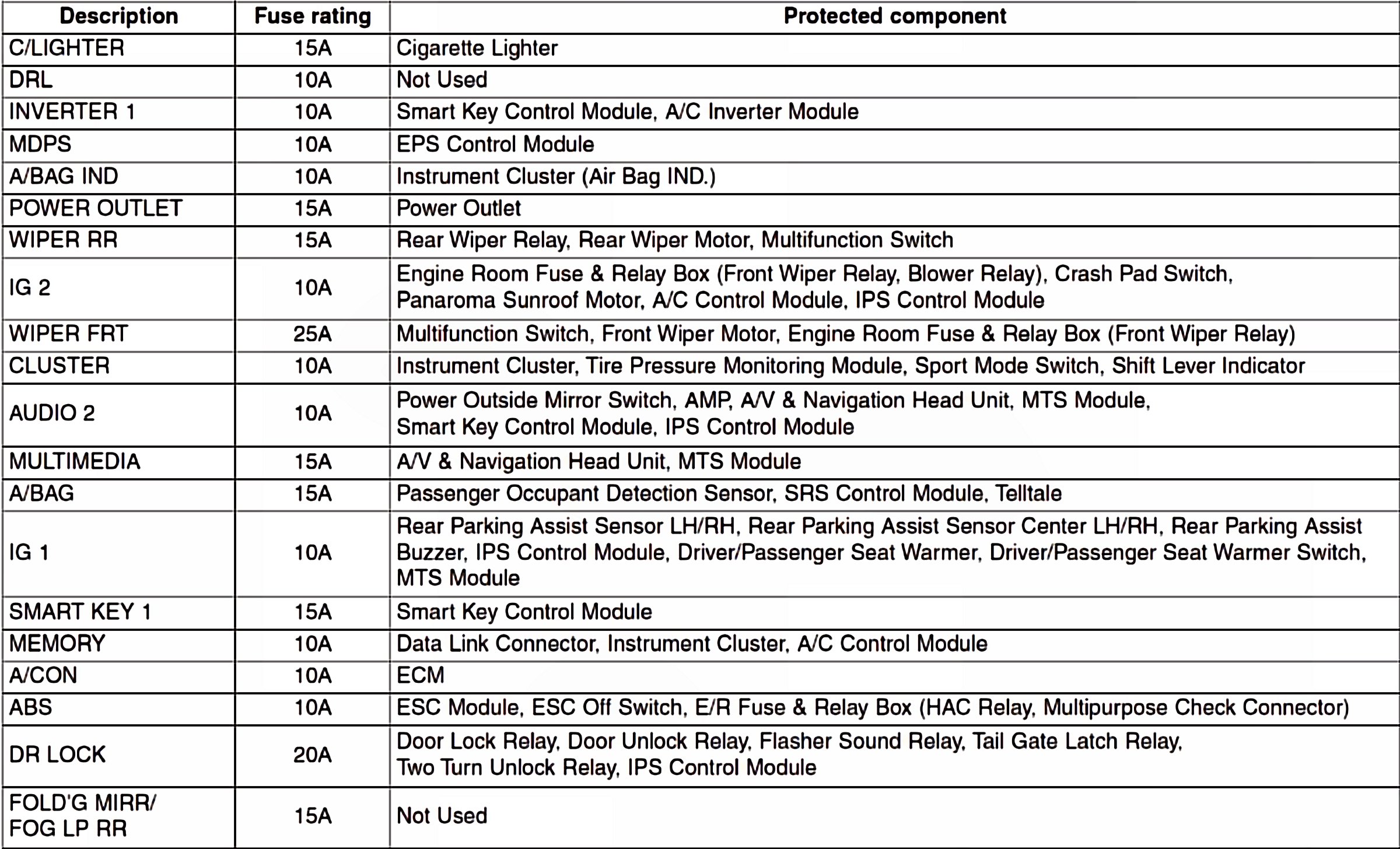

Fuse To Circuit Description:

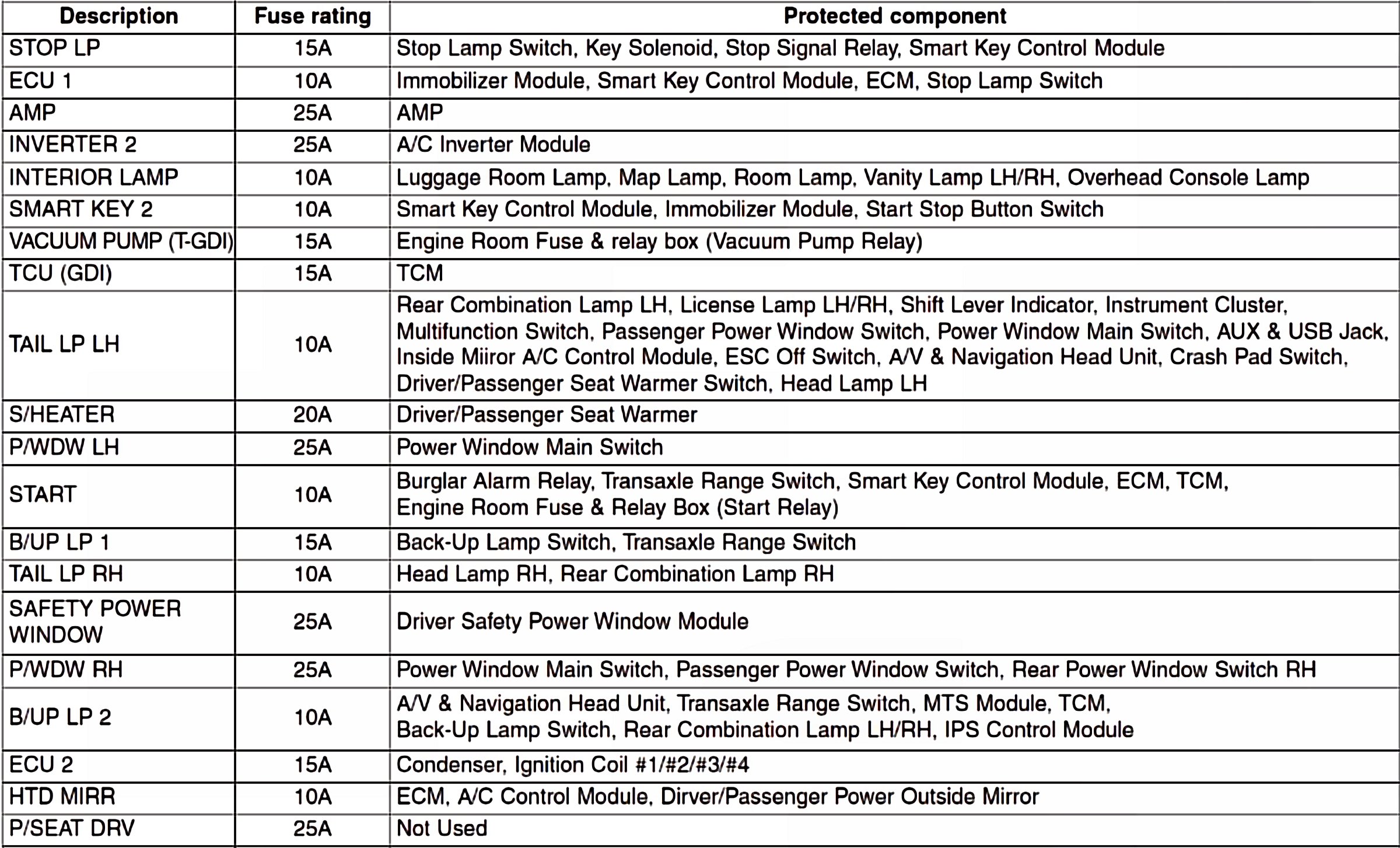

Fuse To Circuit Description Cont.:

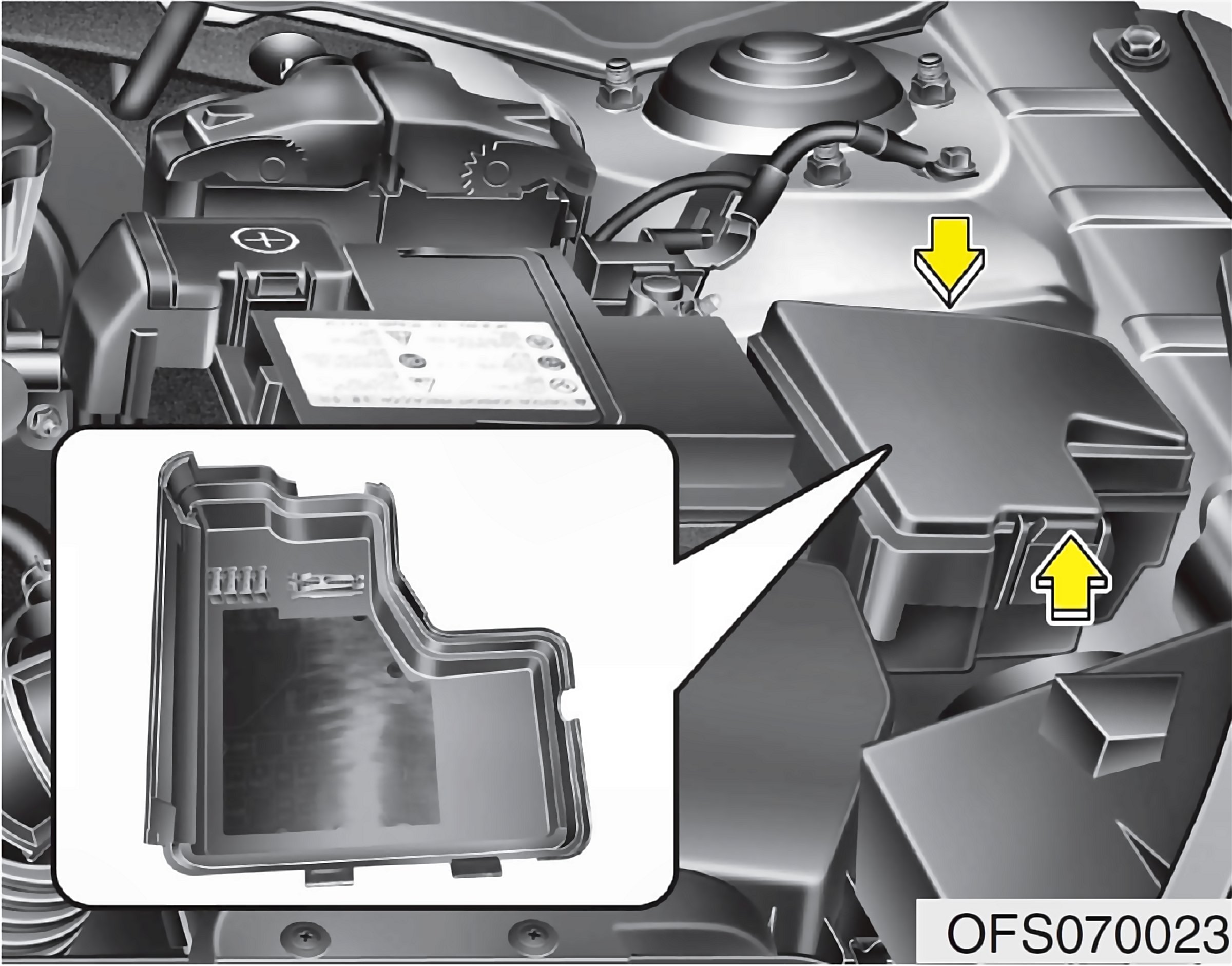

Engine Compartment Fuse Panel Location:

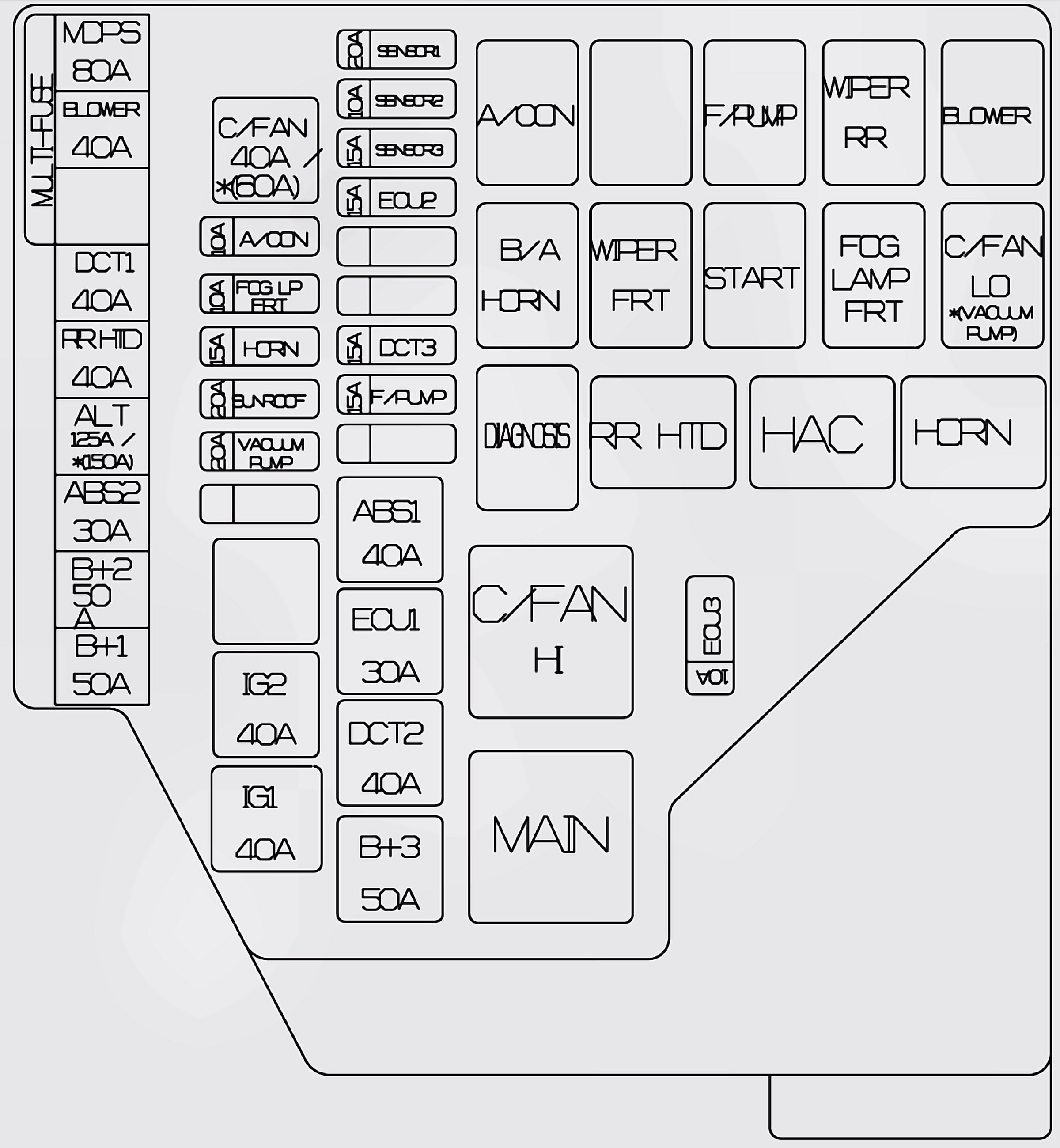

Engine Compartment Fuse Panel Description:

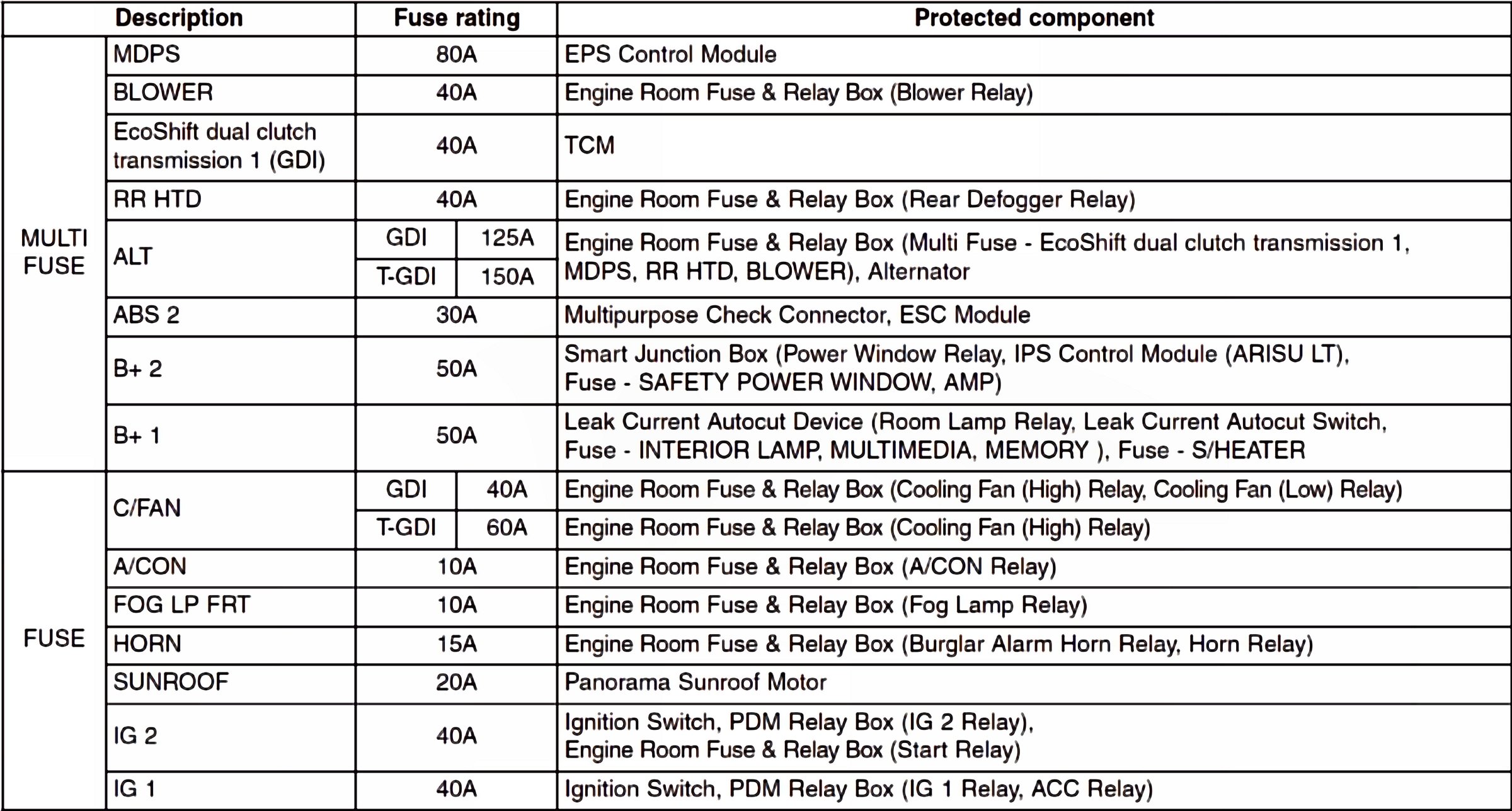

Fuse To Circuit Description:

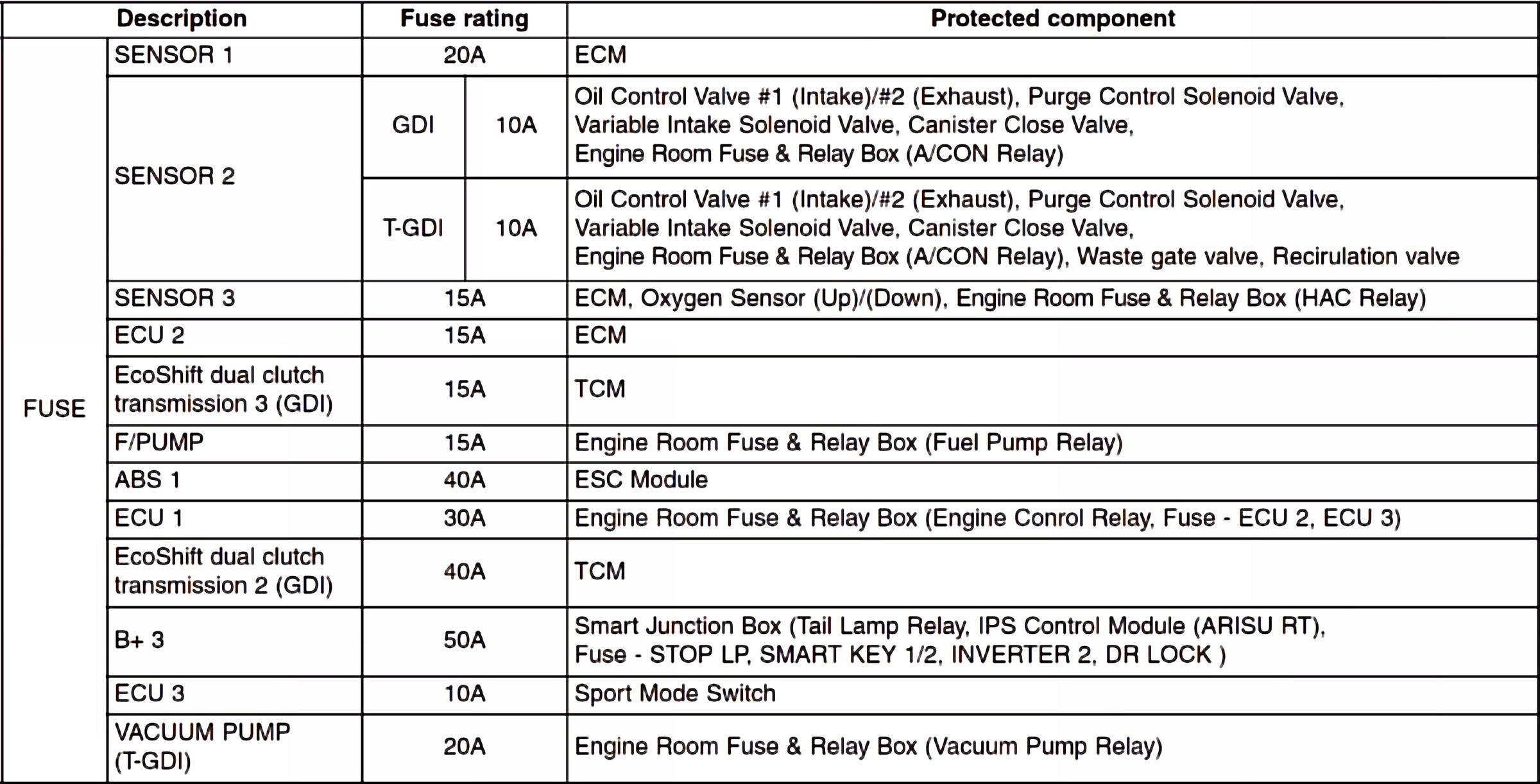

Fuse To Circuit Description Cont.:
