Engine Control Module





Harness Connector

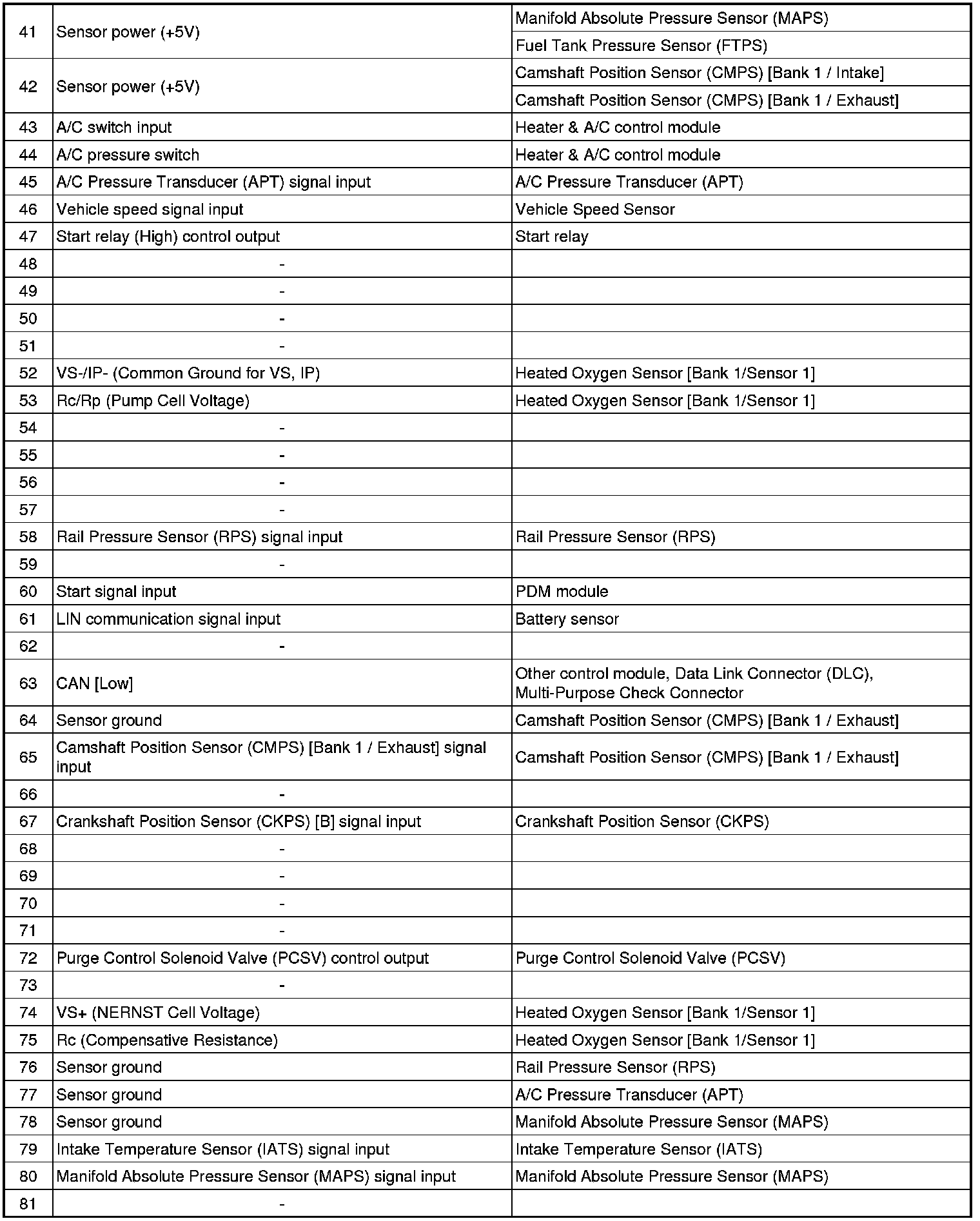

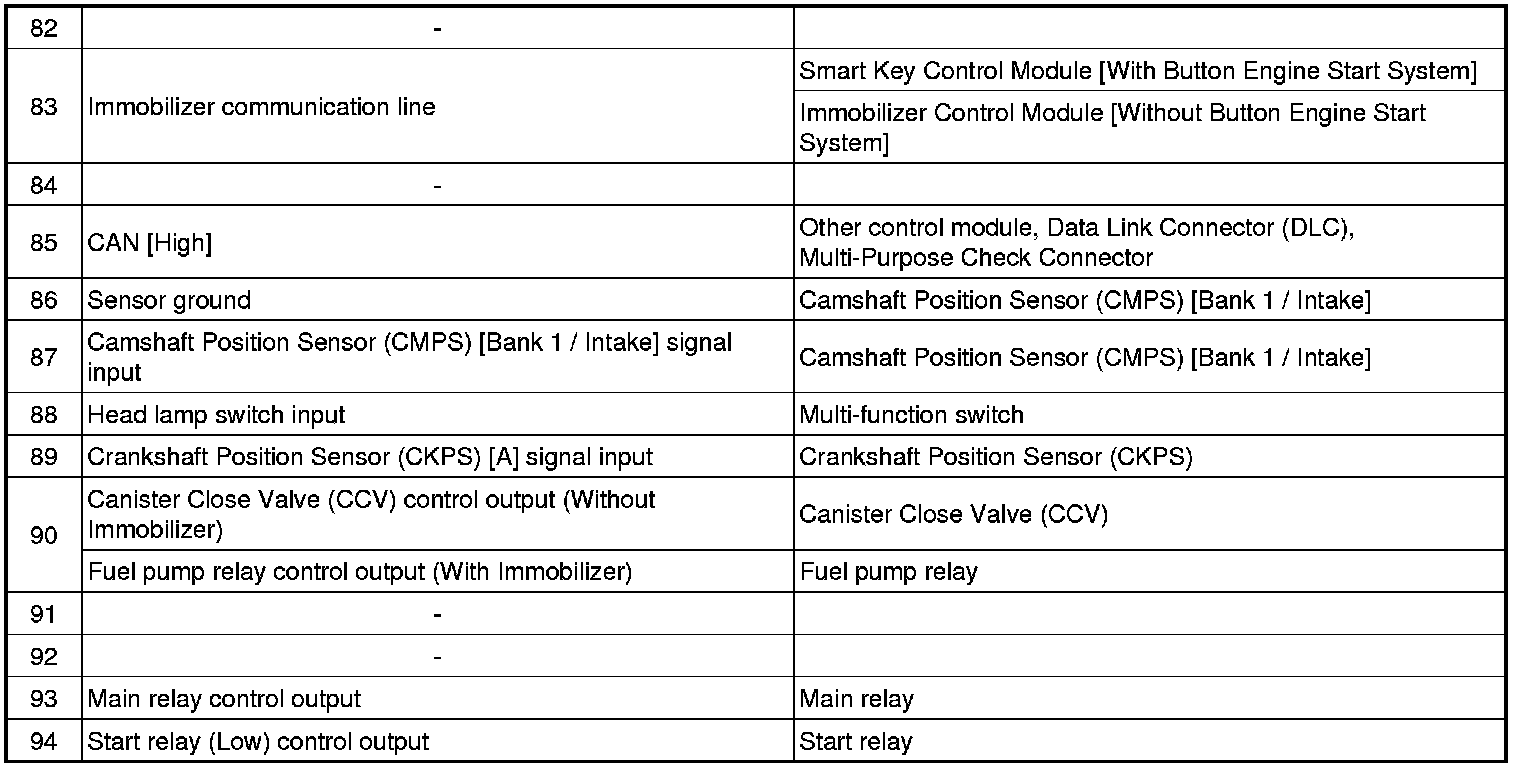

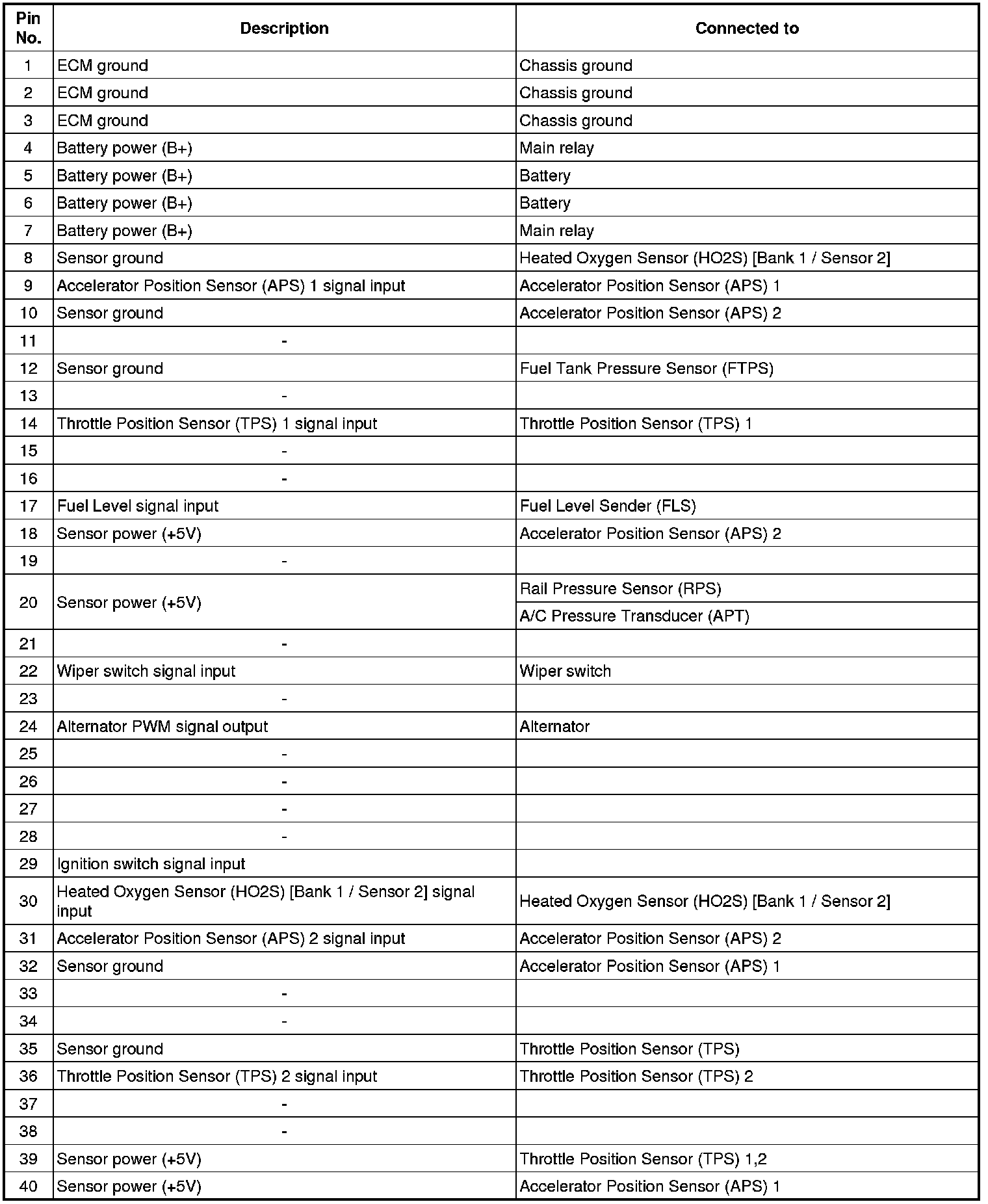

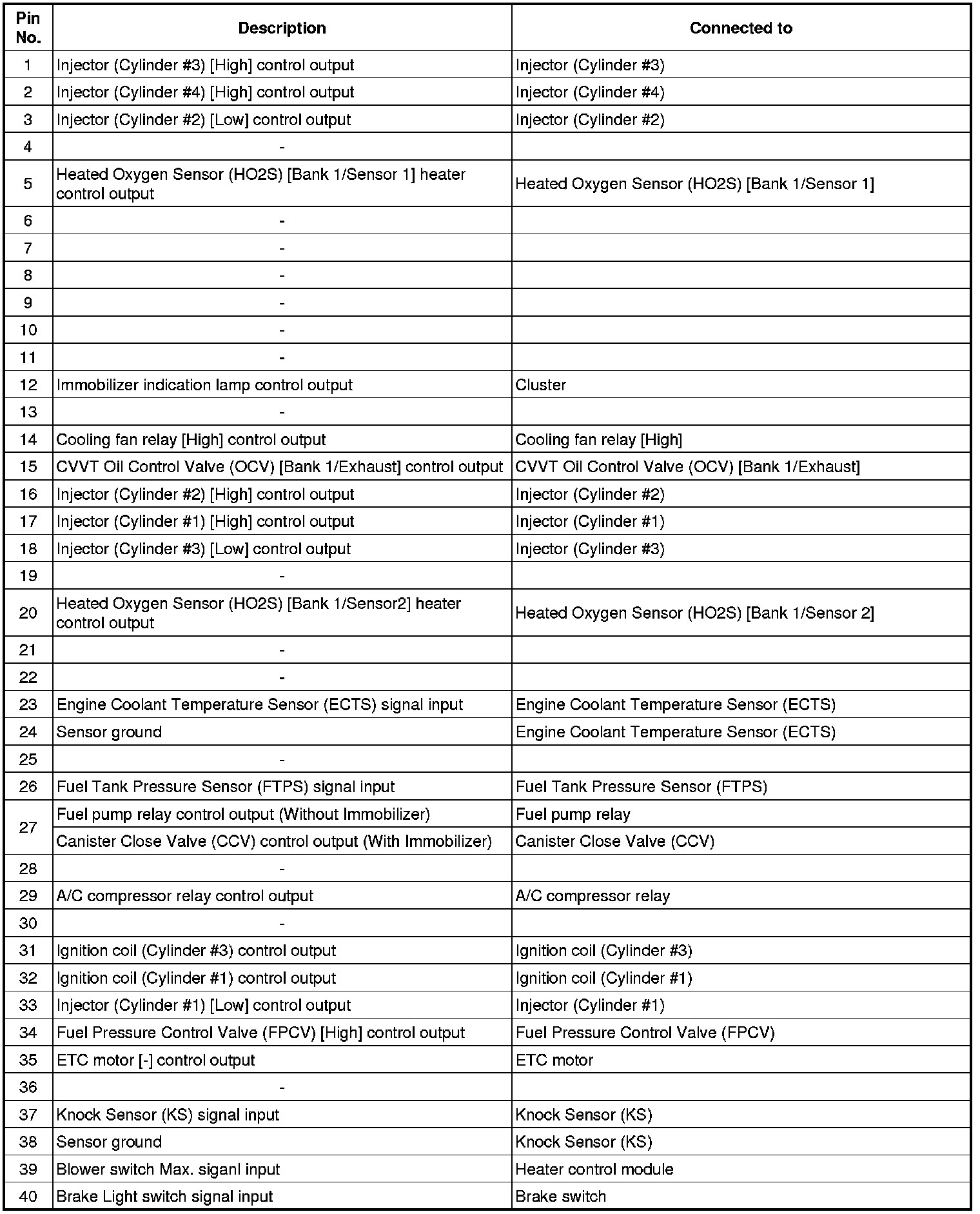

ECM Terminal Function
Connector [EGGM-A]









Connector [EGGM-K]

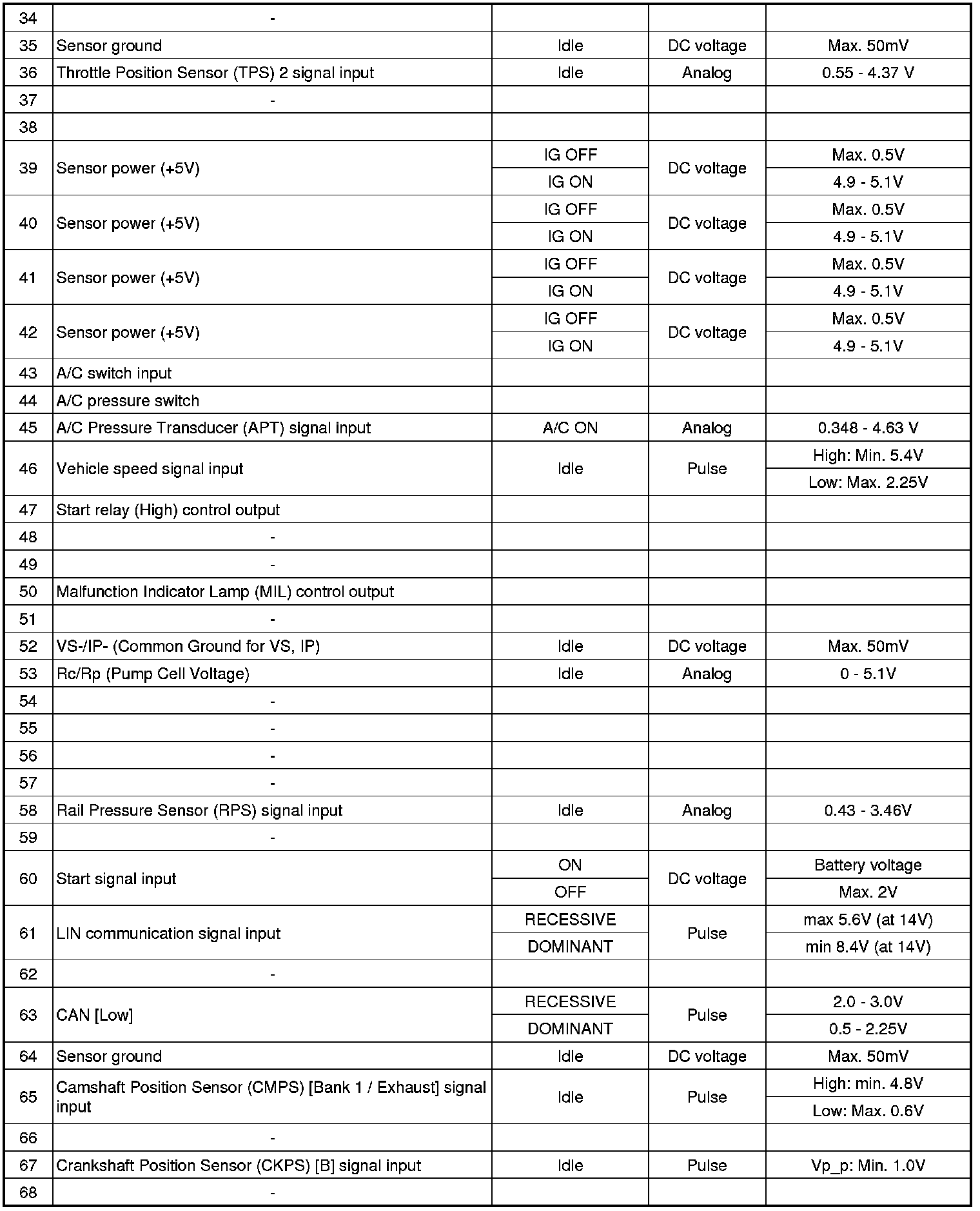

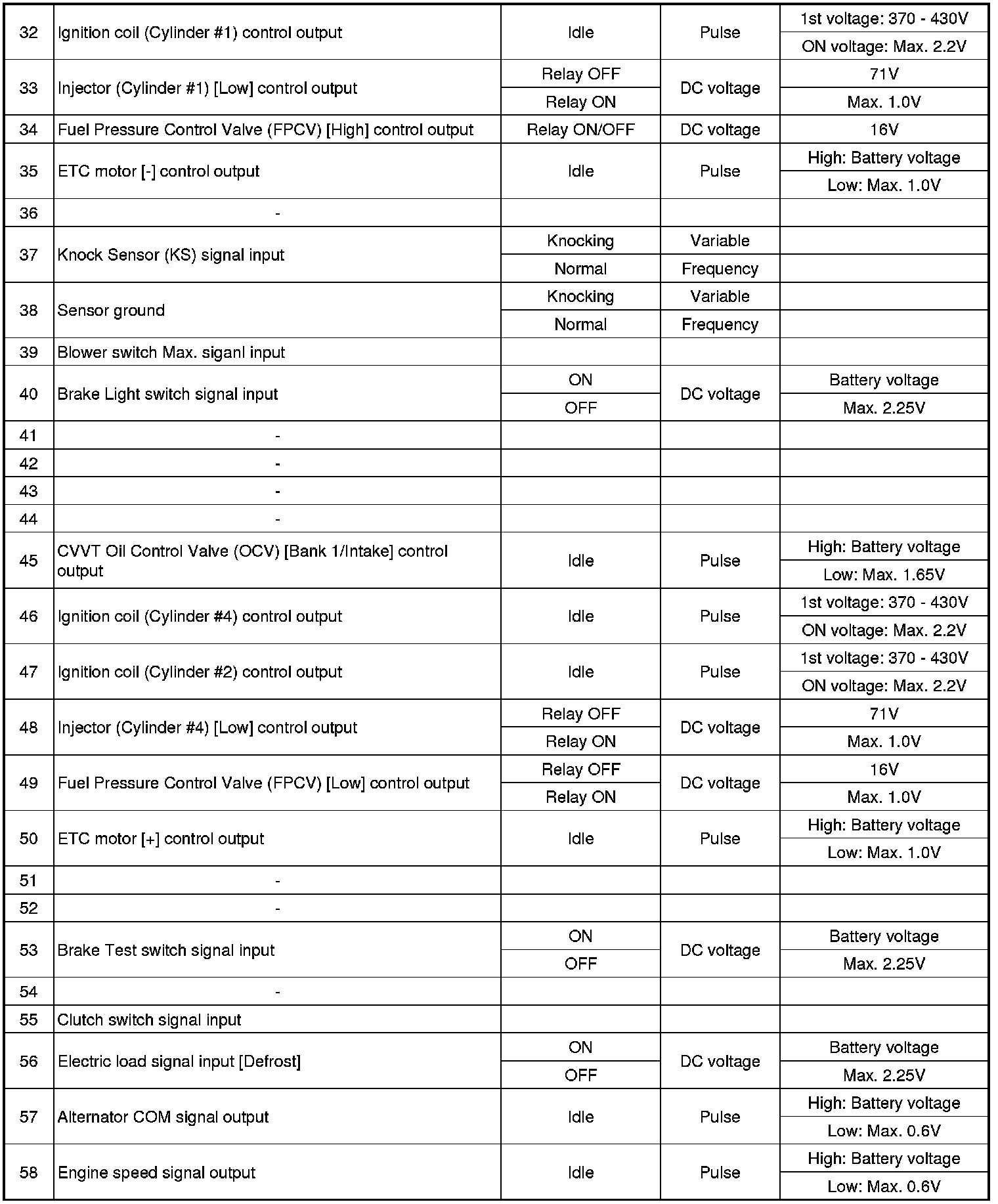

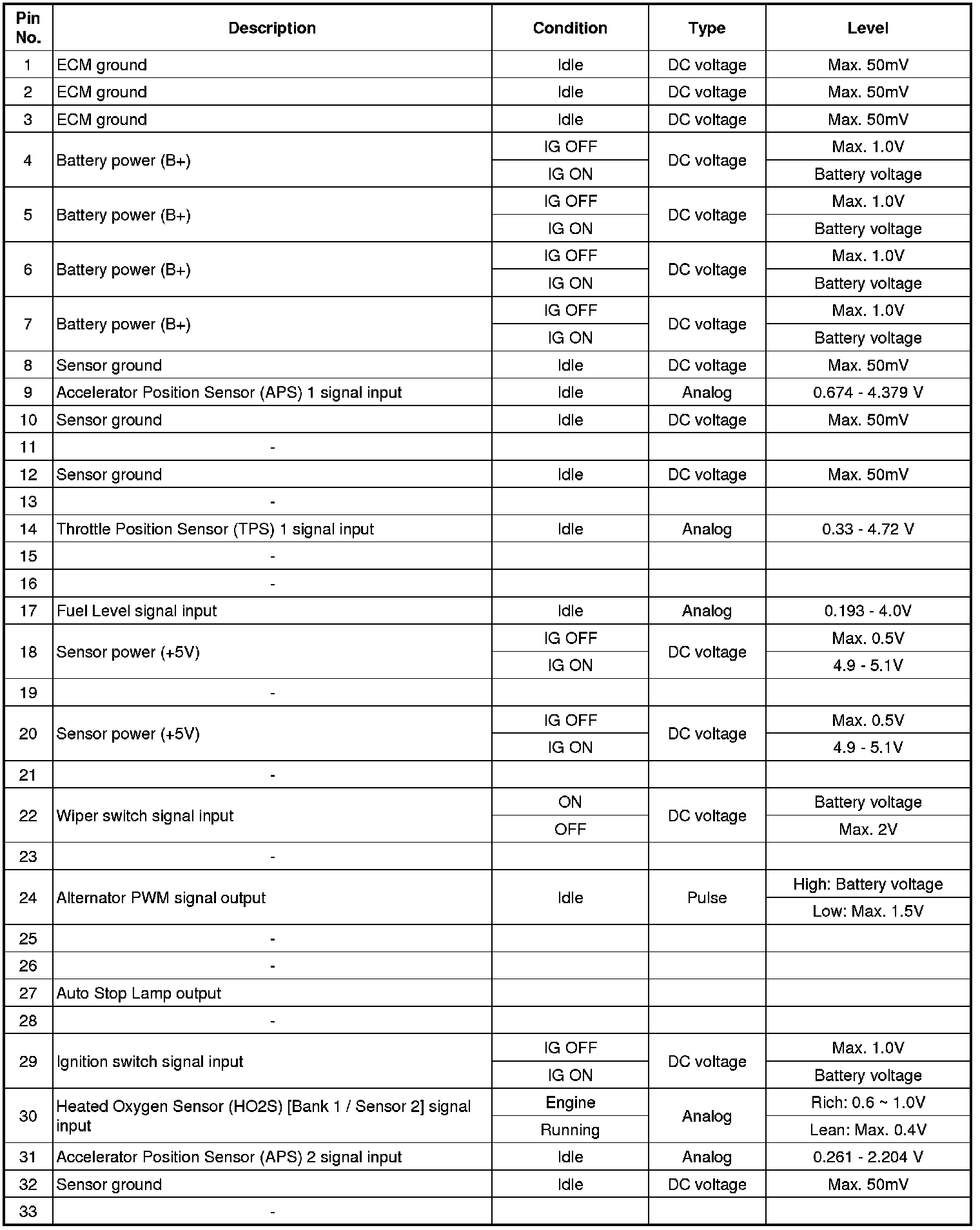

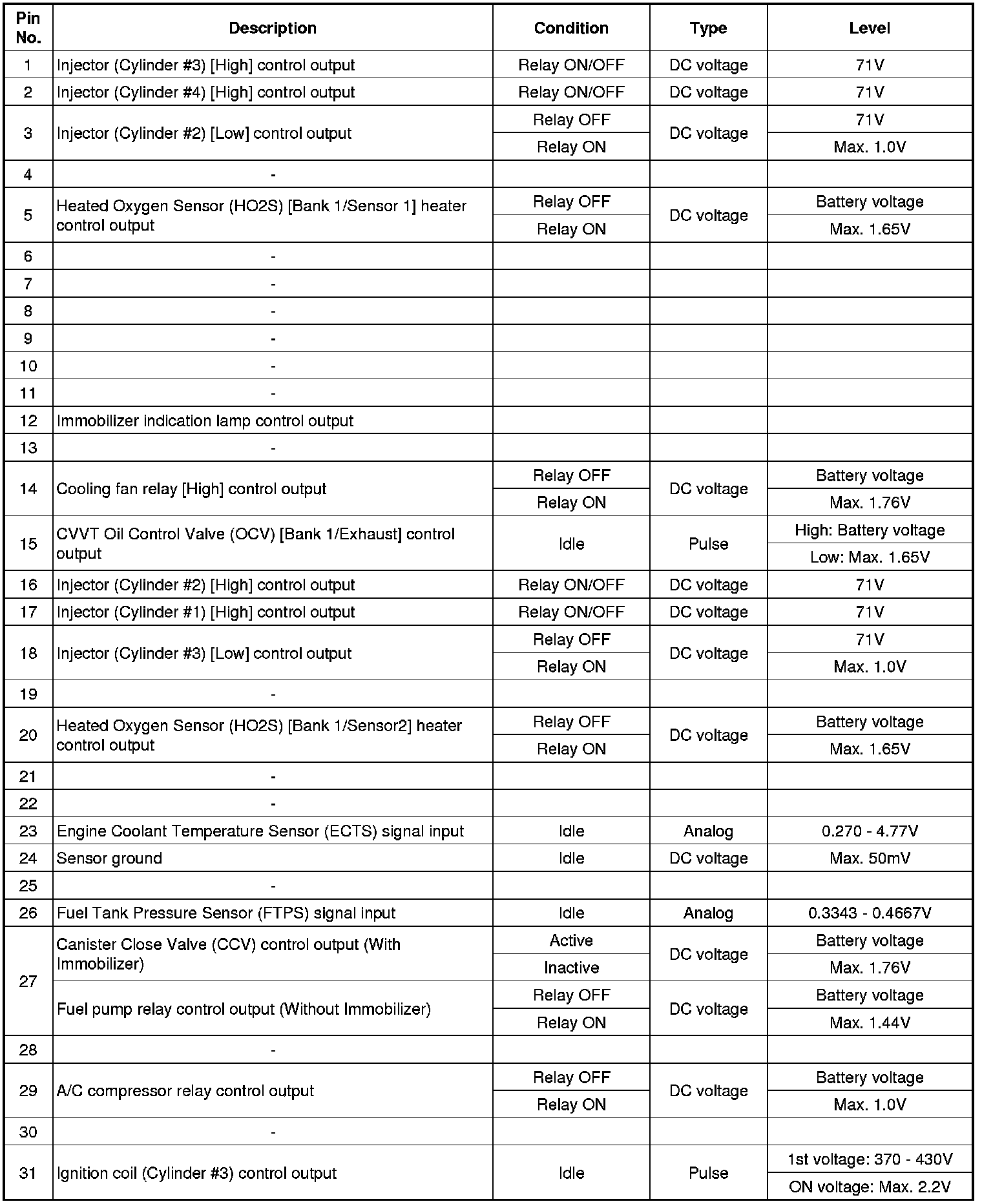

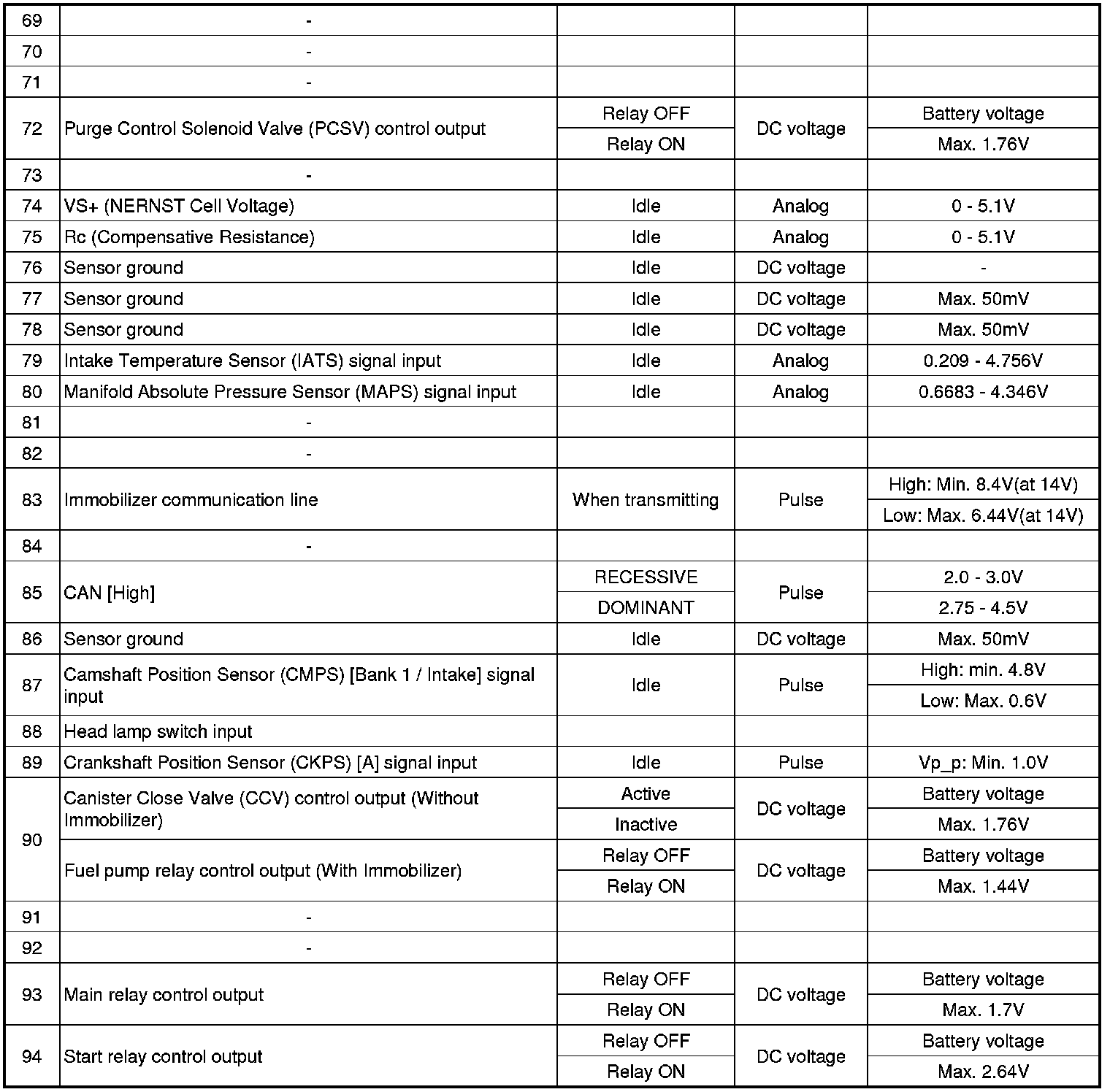

ECM Terminal Input/Output Signal
Connector [EGGM-A]













Connector [EGGM-K]














Circuit Diagram
