Repair procedures: Removal

WARNING: This page is about a different car, the 2012 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.

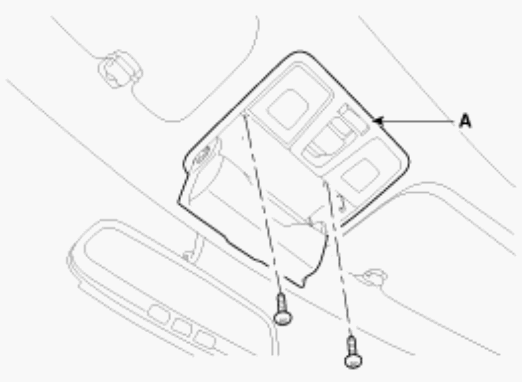

Loosen 2 screws holding the overhead console (A).
Remove the overhead console (A) after loosening 2 screws.

Fig 1: Identifying Overhead Console With Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA

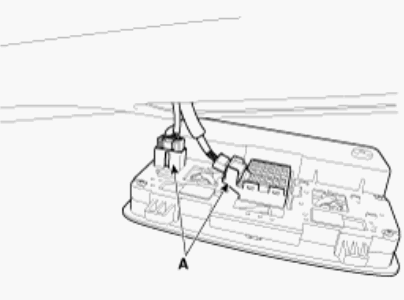

Disconnect the connectors (A) of sunroof switch and lamp switch then remove the overhead console lamp assembly.

Fig 2: Identifying Sunroof Switch Connectors
Courtesy of HYUNDAI MOTOR AMERICA

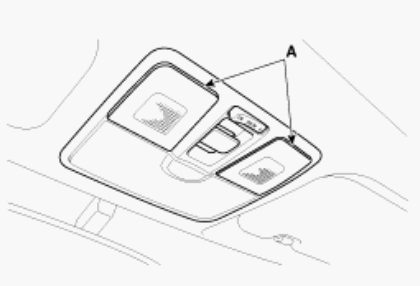

If necessary to replace the bulb, replace the bulb after removing the overhead console lens (A).

Fig 3: Identifying Overhead Console Lens
Courtesy of HYUNDAI MOTOR AMERICA
