Measuring Resistance

  1. Disconnect the cruise control switch connector from the control switch.

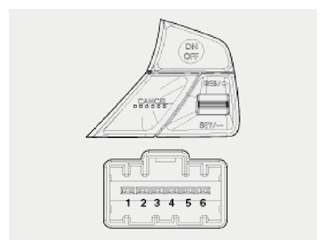

    Fig 1: Identifying Cruise Control Switch Connector Terminals
    G09150355Courtesy of HYUNDAI MOTOR AMERICA
  2. Measure resistance between terminals on the control switch when each function switch is ON (switch is depressed).
    Function switch Terminal Resistance
    CANCEL 3 - 4 180Ω ± 5%
    SET/- 3 - 4 330Ω ± 5%
    RES/+ 3 - 4 550Ω ± 5%
    ON/OFF 3 - 4 880Ω ± 5%
  3. If not within specification, replace switch.
