Engine Control System Diagnosis (2 Of 3)
>>
DTC P0564: Cruise Control Multi-Function Input A Circuit
>>
General Information
>>
Diagnostic Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Diagnostic Circuit Diagram

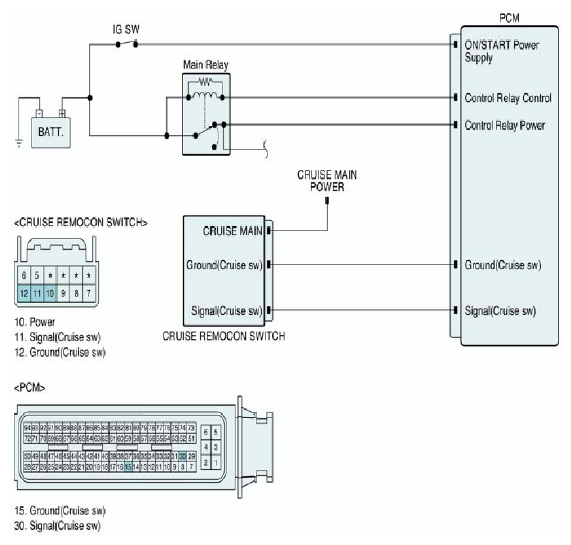

Fig 1: Cruise Remocon Switch Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
