Components and Components Location: Components

WARNING: This page is about a different variant/trim than selected.

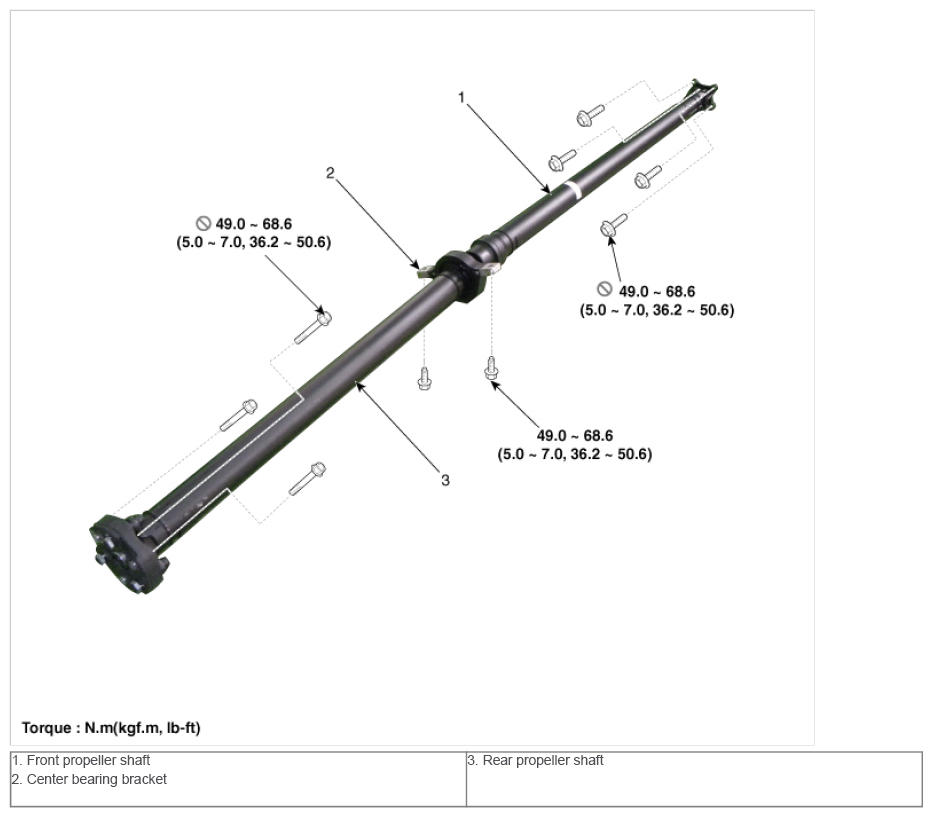

Fig 1: Propeller Shaft Assembly Replacement Components With Torque Specifications
G09267820Courtesy of HYUNDAI MOTOR AMERICA
