Repair Procedures: Removal

Disconnect the negative (-) battery terminal.
Remove the driver airbag module.
Refer to DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING .
Remove the steering wheel.
Refer to STEERING COLUMN AND SHAFT .
Remove the steering wheel cover (A) after loosening the screws.

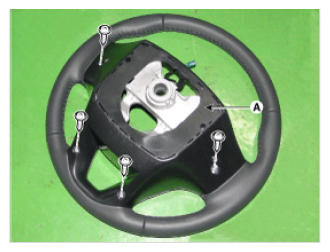

Fig 1: Identifying Steering Wheel Cover Screws (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

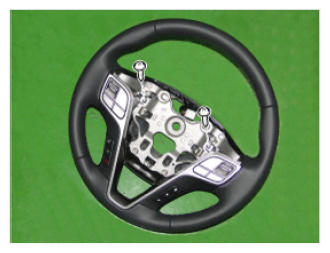

Fig 2: Identifying Steering Wheel Cover Screws (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Loosen the screws after disconnecting the steering wheel remote control switch connector (A).

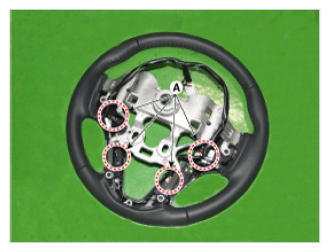

Fig 3: Identifying Steering Wheel Remote Control Switch Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the remote control switch (A).

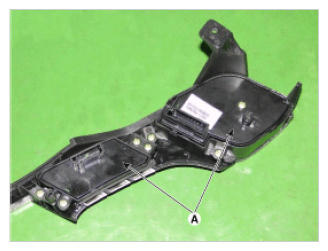

Fig 4: Identifying Remote Control Switches
Courtesy of HYUNDAI MOTOR AMERICA
