Monitor GDS Data: Notes

  1. Connect GDS to Data Link Connector (DLC).
  2. Ignition "ON" & engine "OFF".
  3. Select "Current Data" mode and monitor "Inhibitor switch" parameter.
  4. Change a shift lever from P-range to D-range.

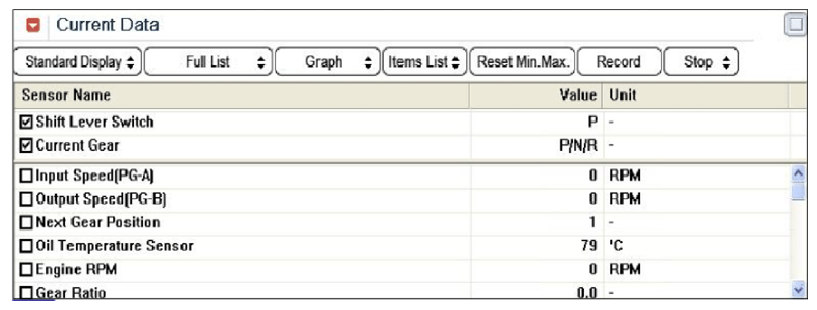

    Fig 1: Display - Current Data Screen (P Range)
    G09273952Courtesy of HYUNDAI MOTOR AMERICA

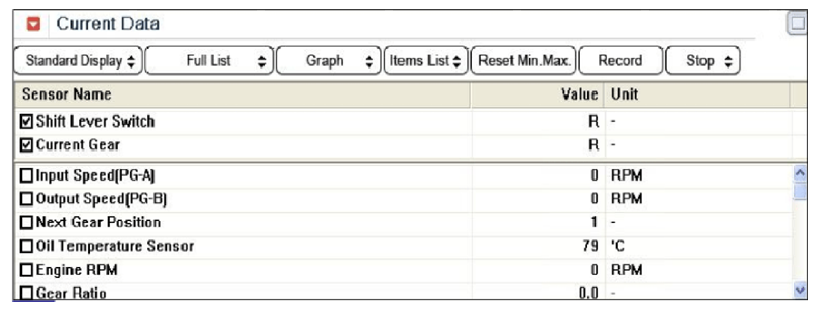

    Fig 2: Display - Current Data Screen (R Range)
    G09273953Courtesy of HYUNDAI MOTOR AMERICA

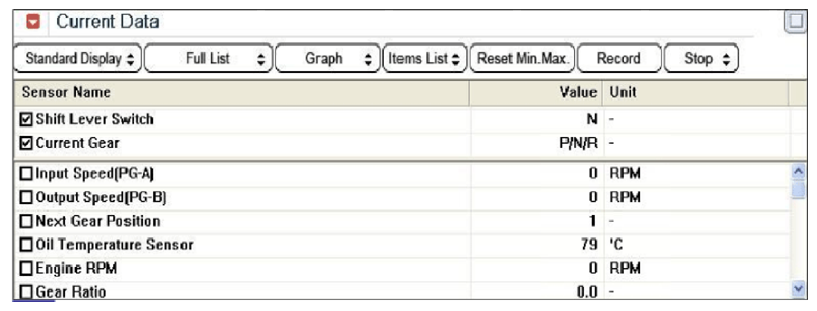

    Fig 3: Display - Current Data Screen (N Range)
    G09273954Courtesy of HYUNDAI MOTOR AMERICA

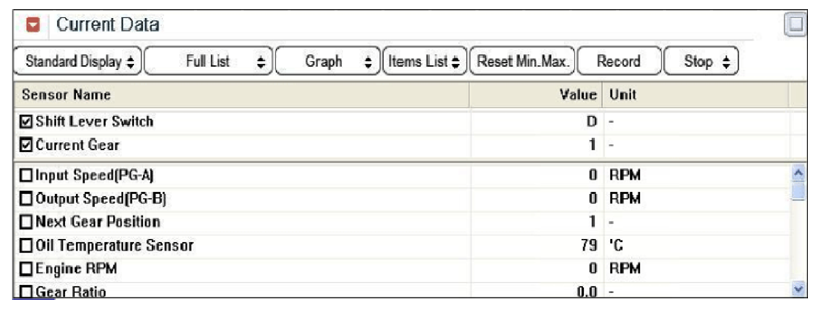

    Fig 4: Display - Current Data Screen (D Range)
    G09273955Courtesy of HYUNDAI MOTOR AMERICA
  5. Is the Inhibitor switch value changed in specification?

    YES

    • P0705 can be happened When Shift Cable alignment is not correct between TGS Lever and Transmission Range Sensor. so Do not replace "Inhibitor Switch" and Check the Alignment of Shift Cable.
