Driver Power Window Switch
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Driver Power Window Switch

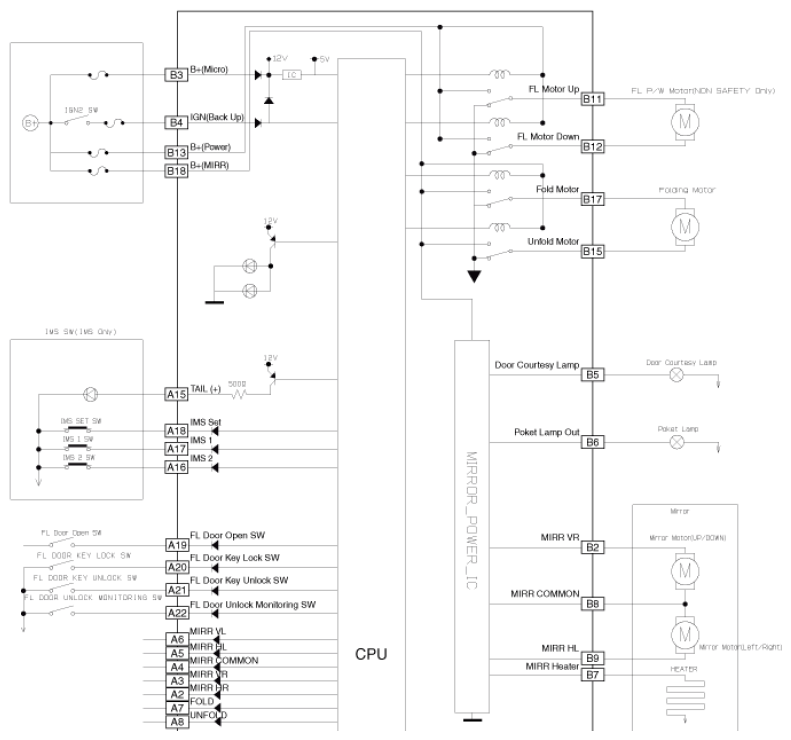

Fig 1: Driver Power Window Switch - Circuit Diagram (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

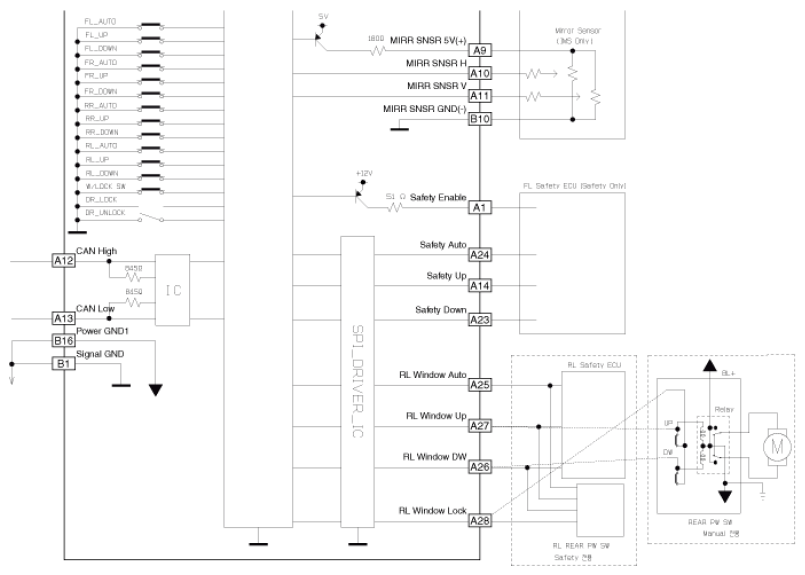

Fig 2: Driver Power Window Switch - Circuit Diagram (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
