Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Power Tailgate Module
>>
Power Liftgate Unit
>>
Schematic Diagrams
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

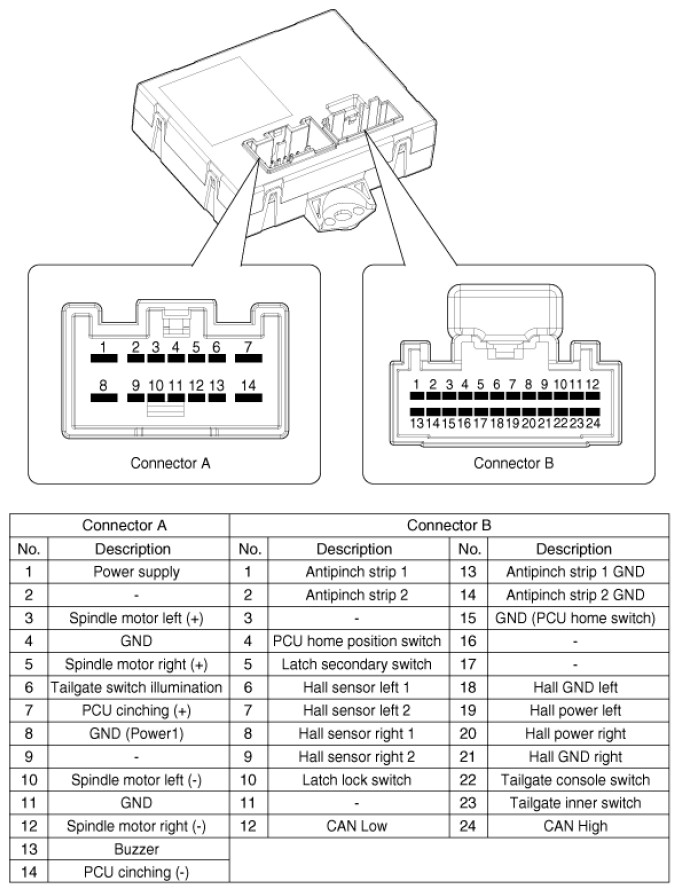

Fig 1: Power Liftgate Unit - Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
