Control Module: Diagrams





1. TCM Connector and Terminal Function

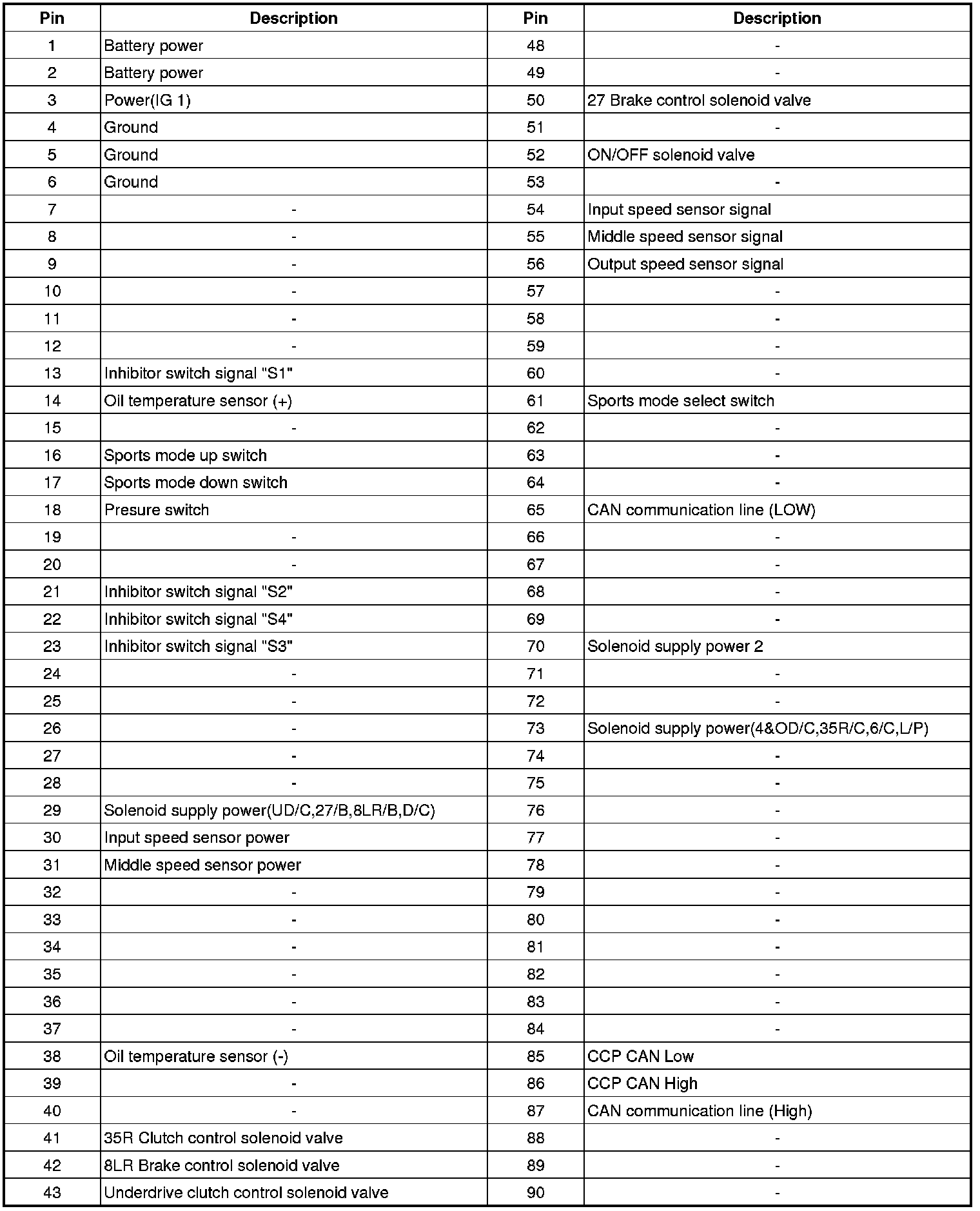

2. TCM Terminal Function

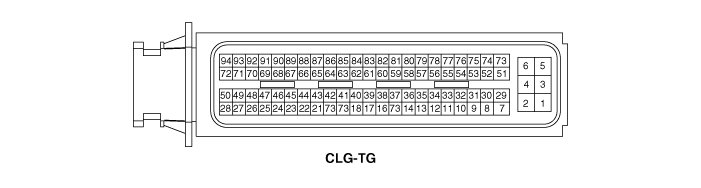

Connector [CLG-TG]

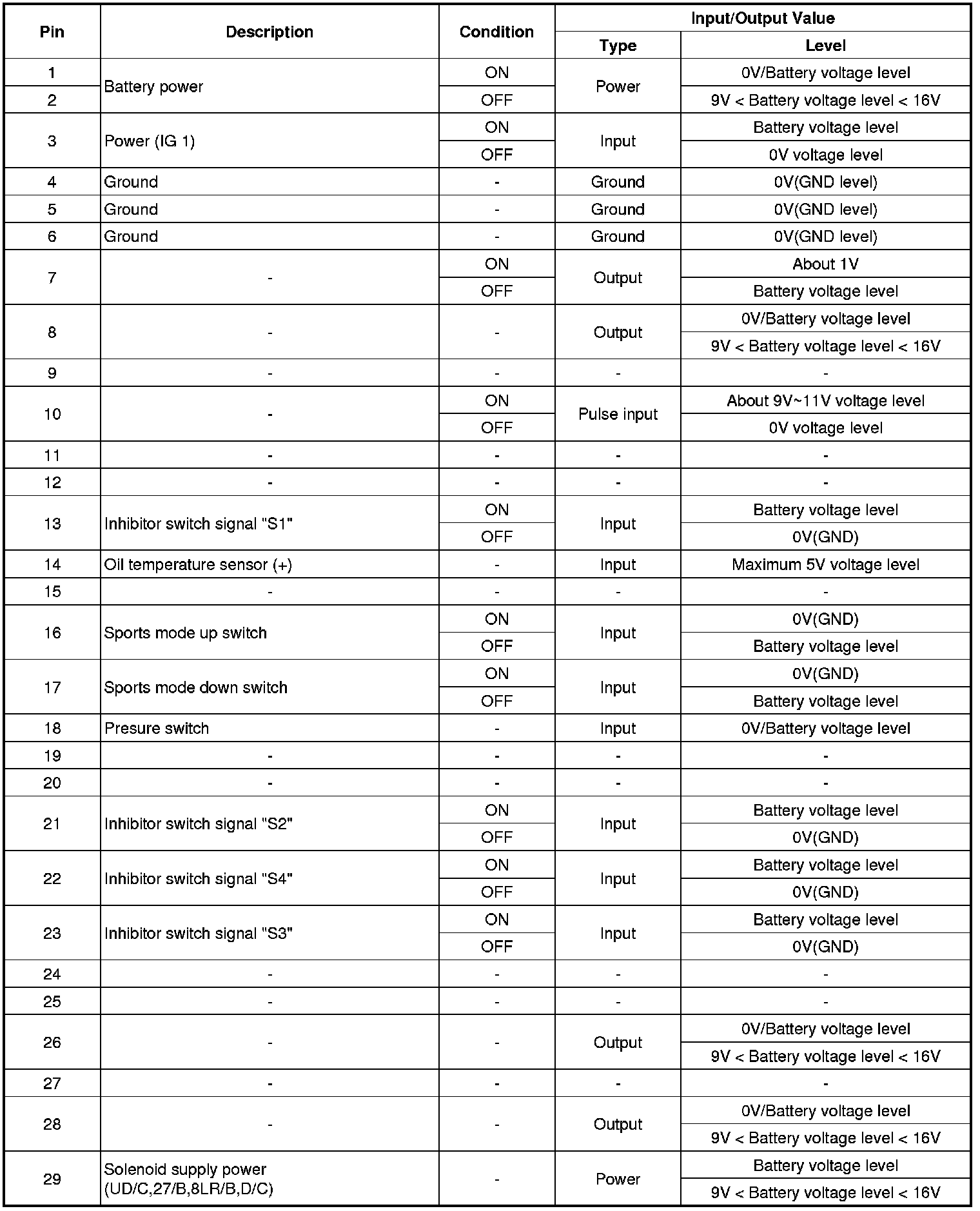

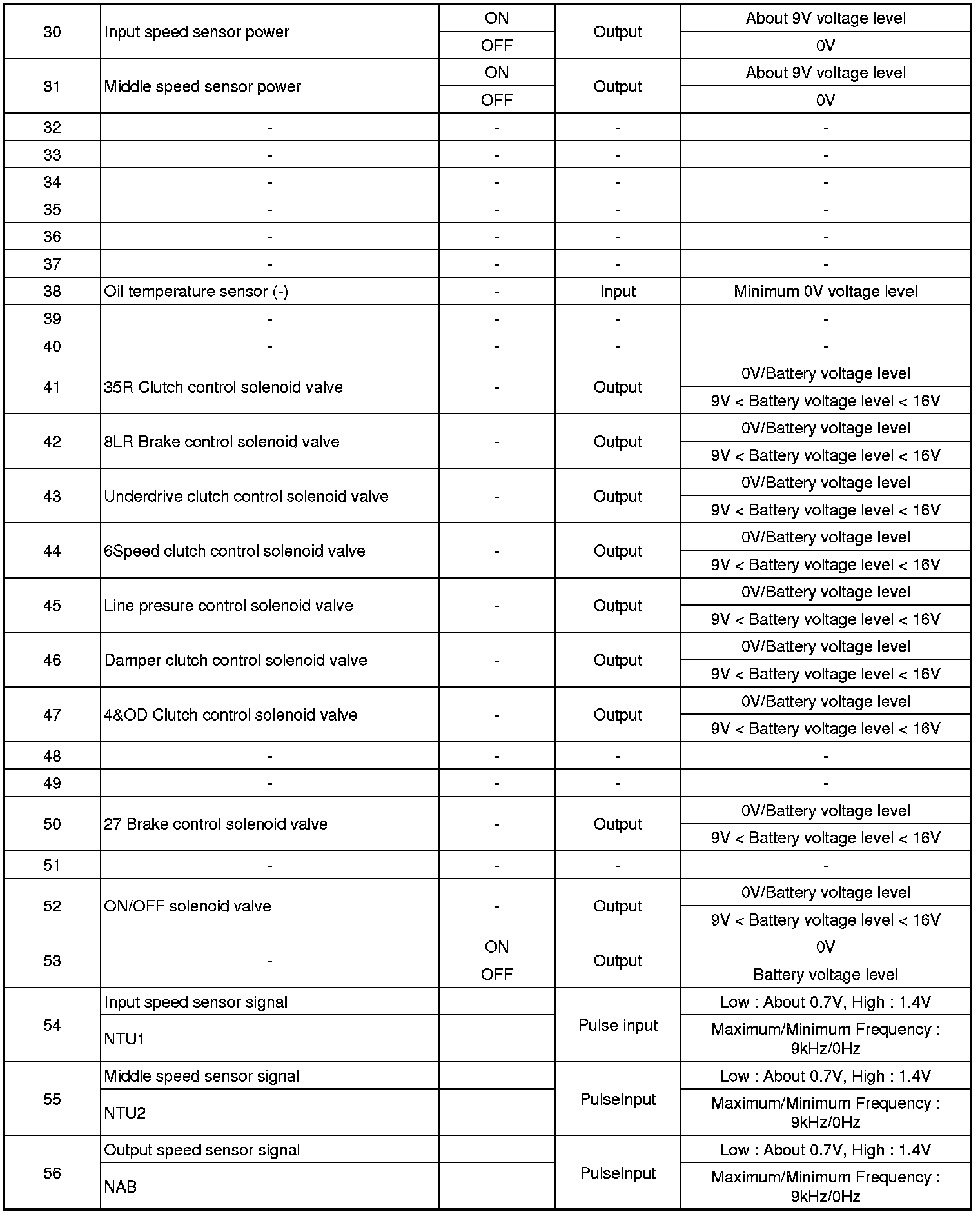

3. TCM Terminal input/output signal
