System Specifications





Specifications

Front Suspension






Rear Suspension






Wheel & Tire






Wheel Alignment

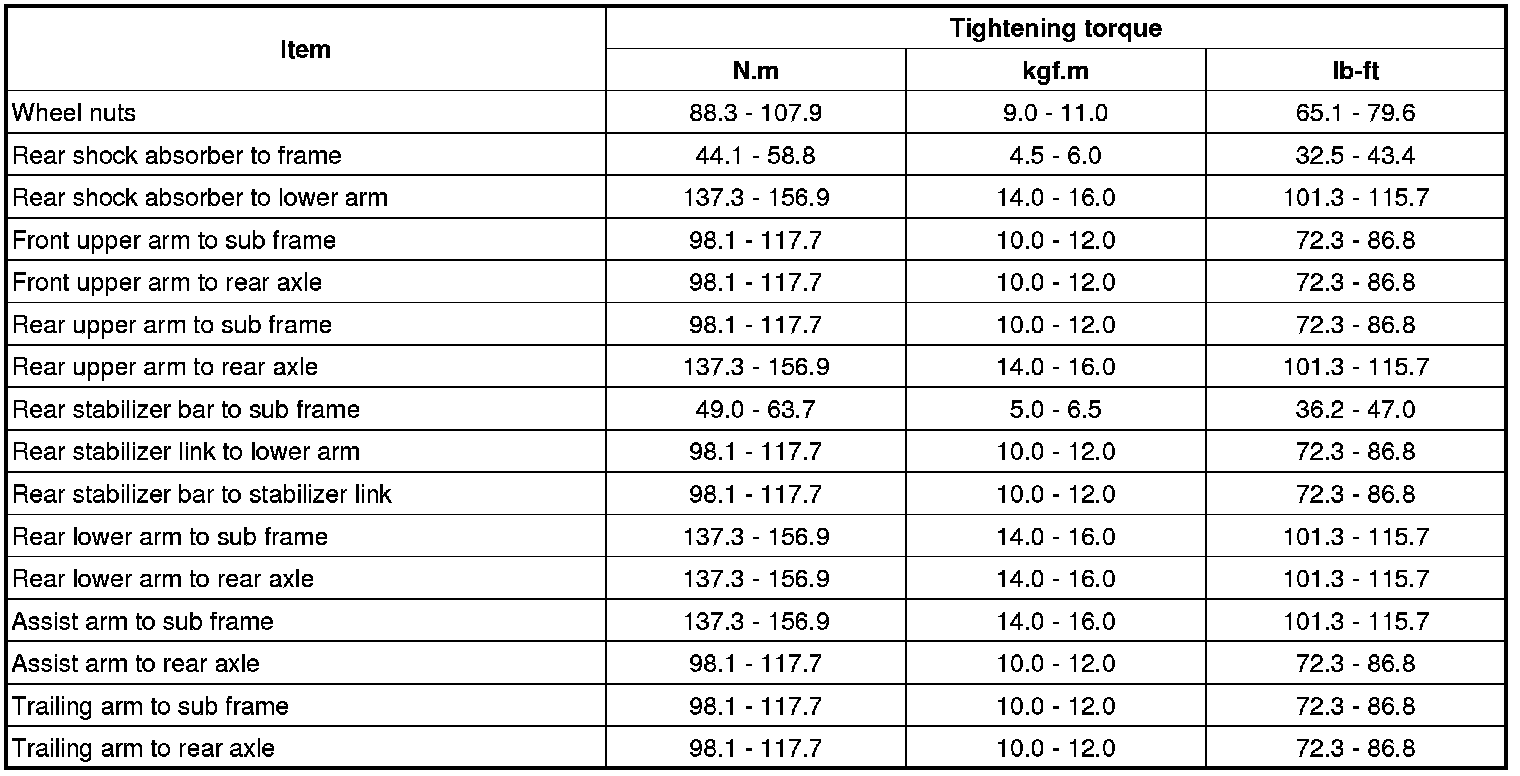

Tightening Torques
Front Suspension





Rear Suspension
