Engine Control Module





ECM Terminal And Input/Output signal

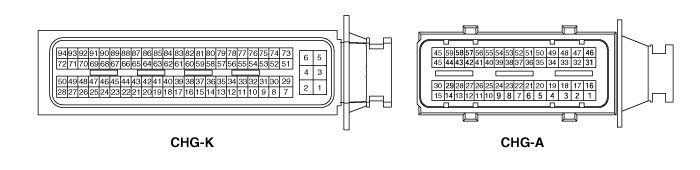

ECM Harness Connector

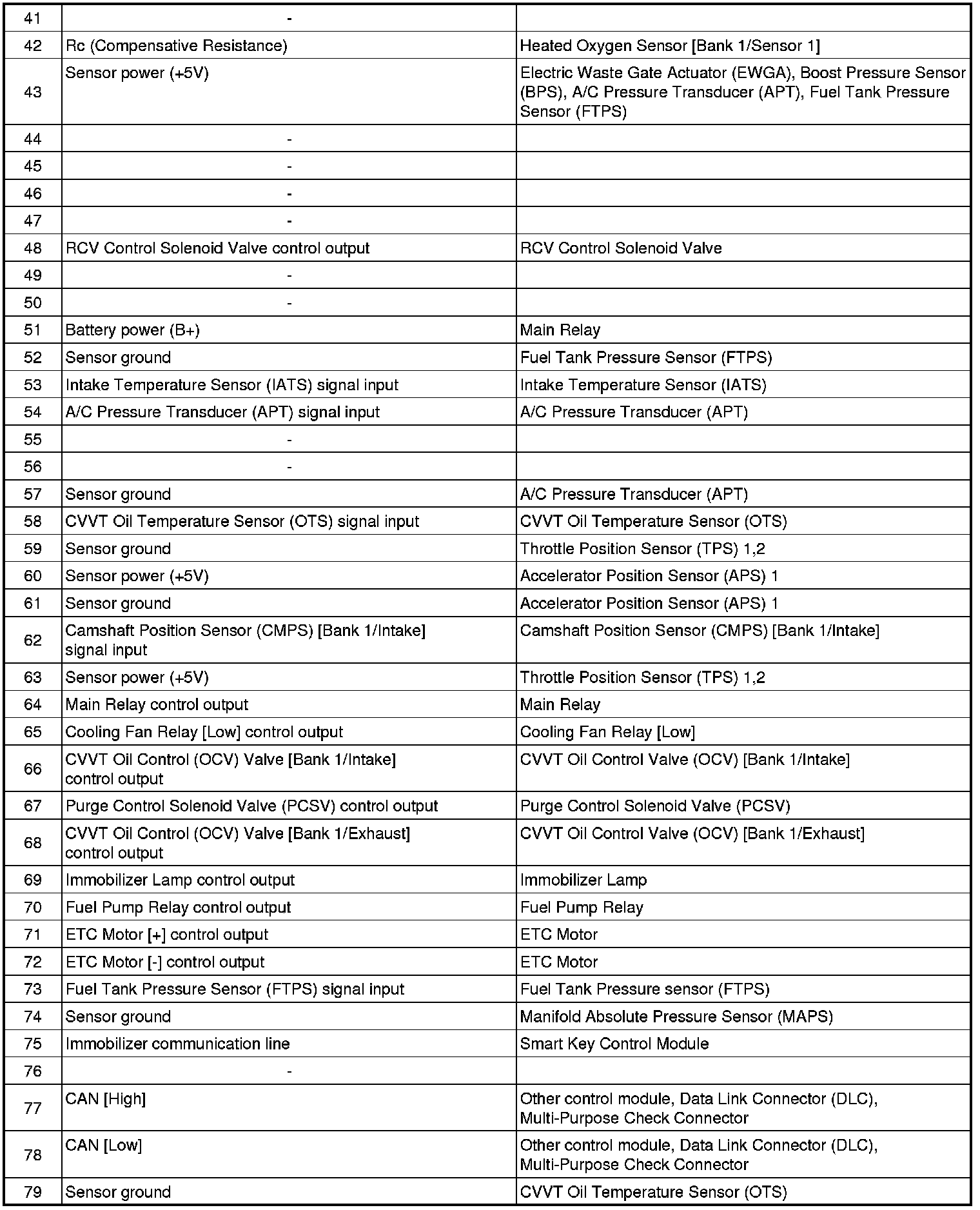

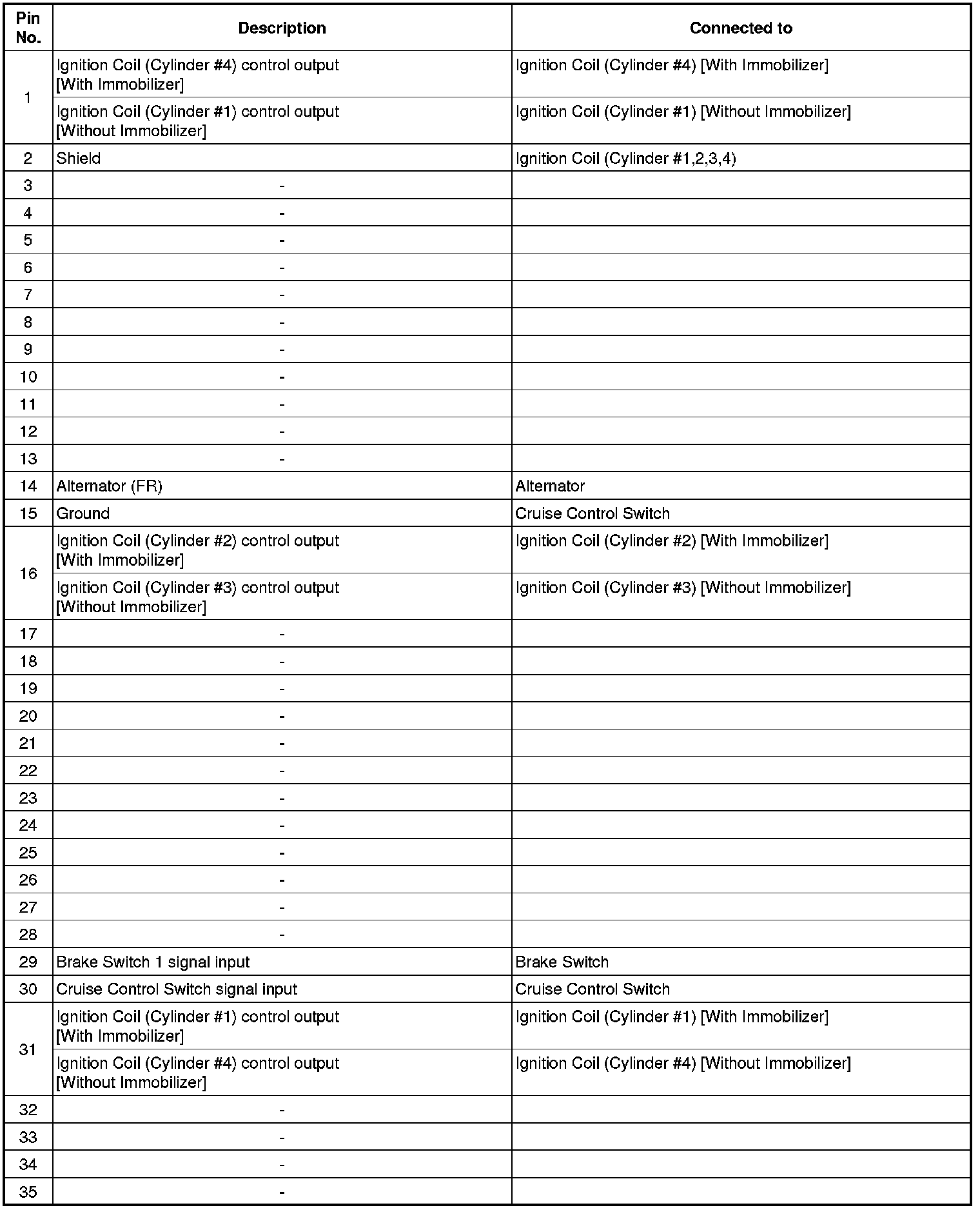

ECM Terminal Function
Connector [CHG-K]













Connector [CHG-A]

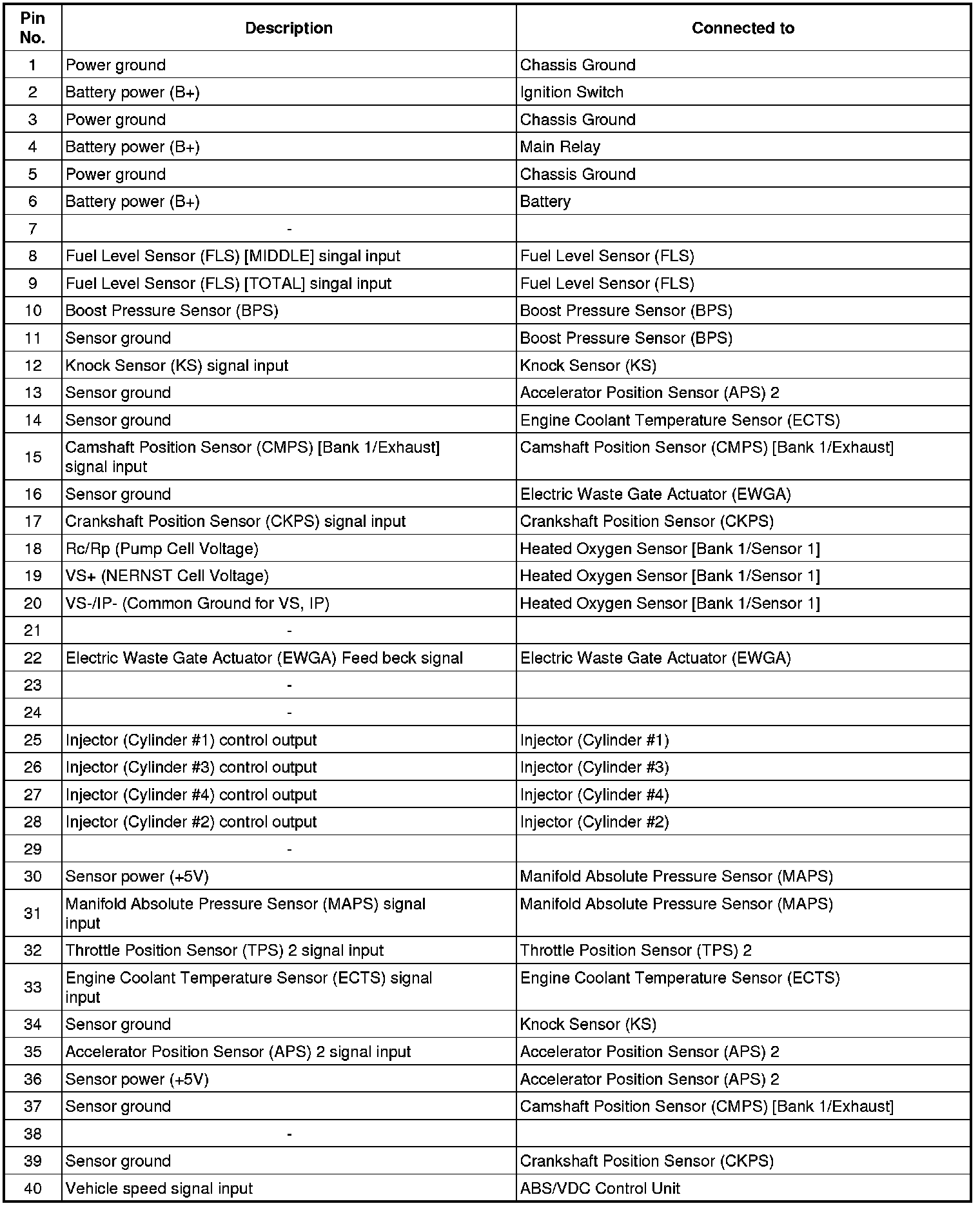

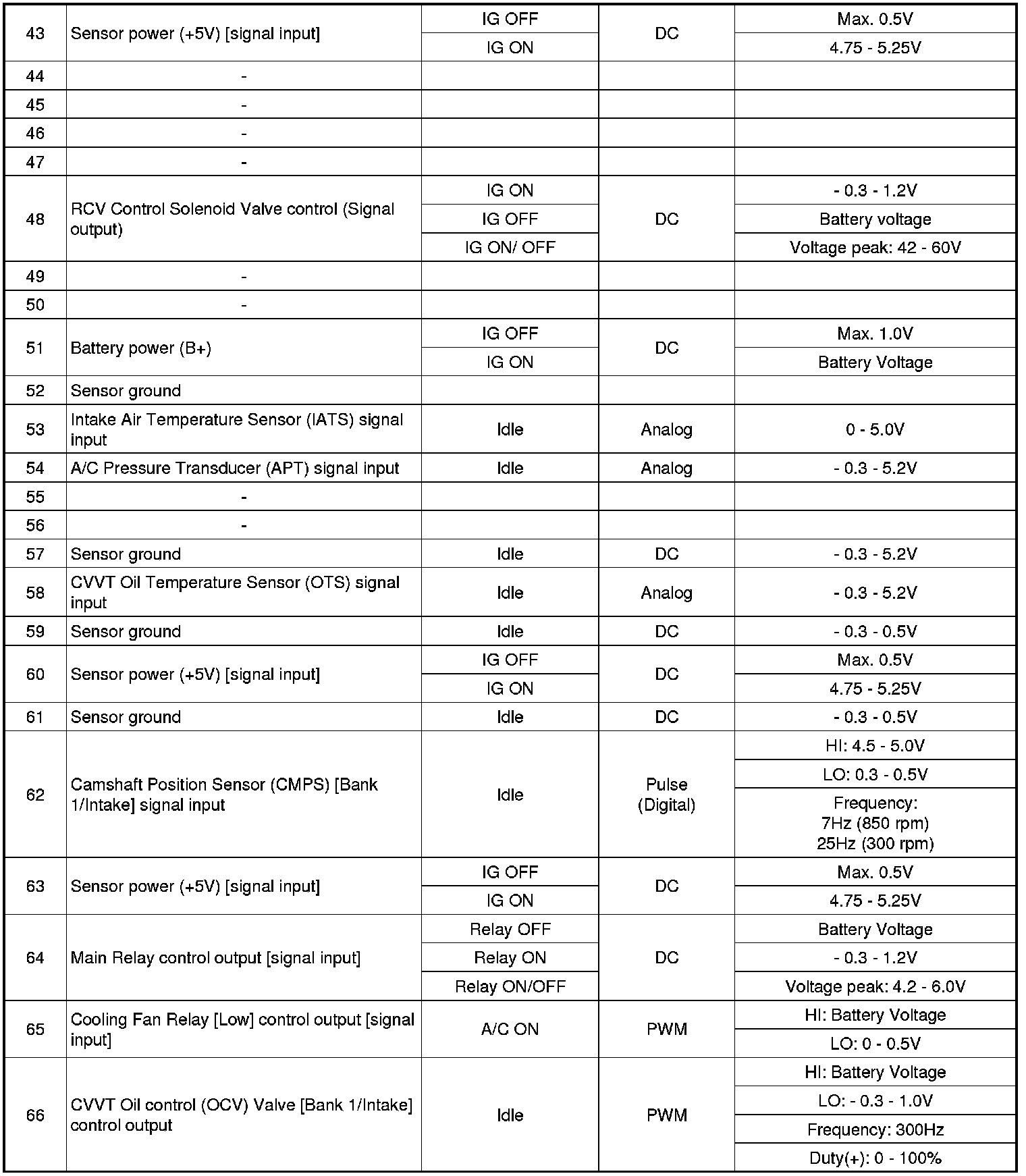

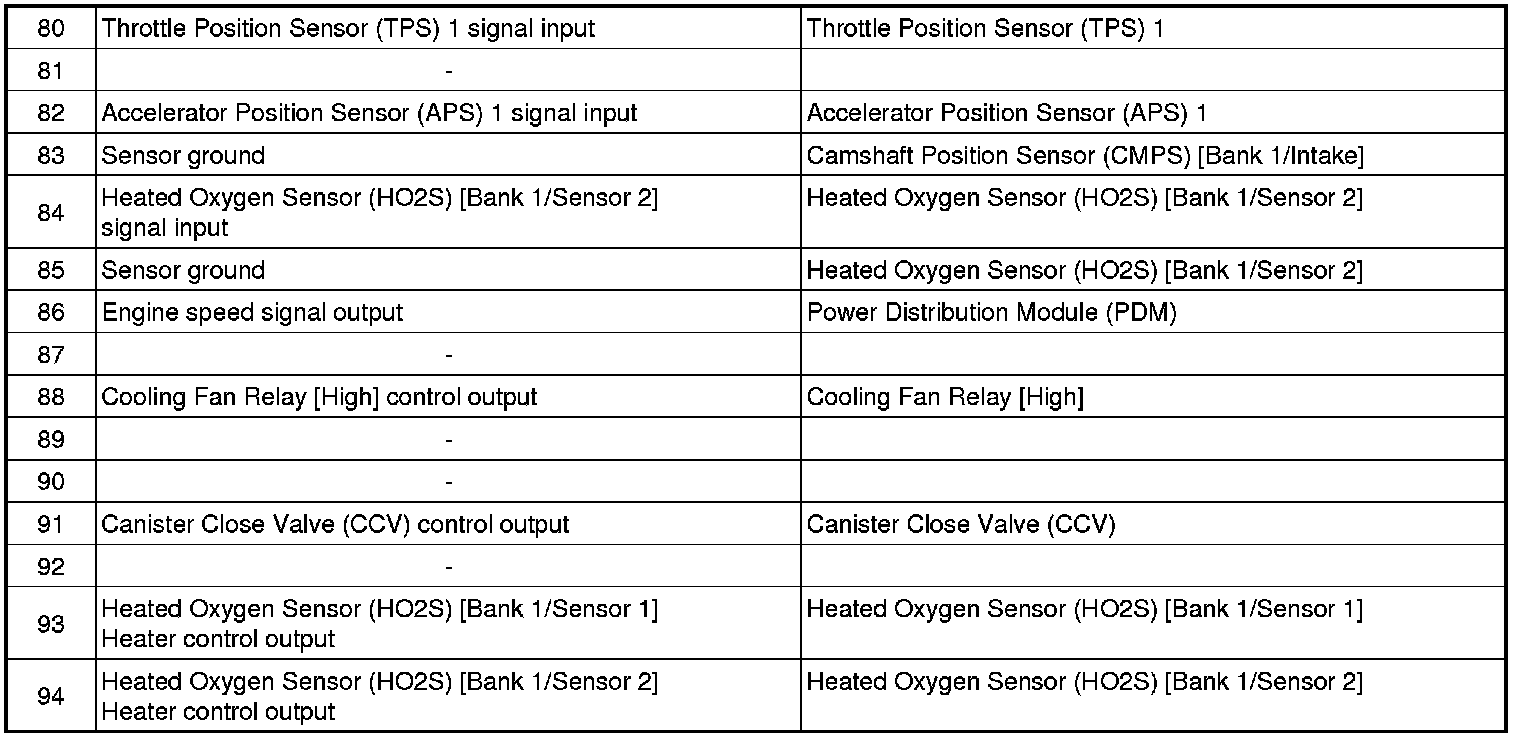

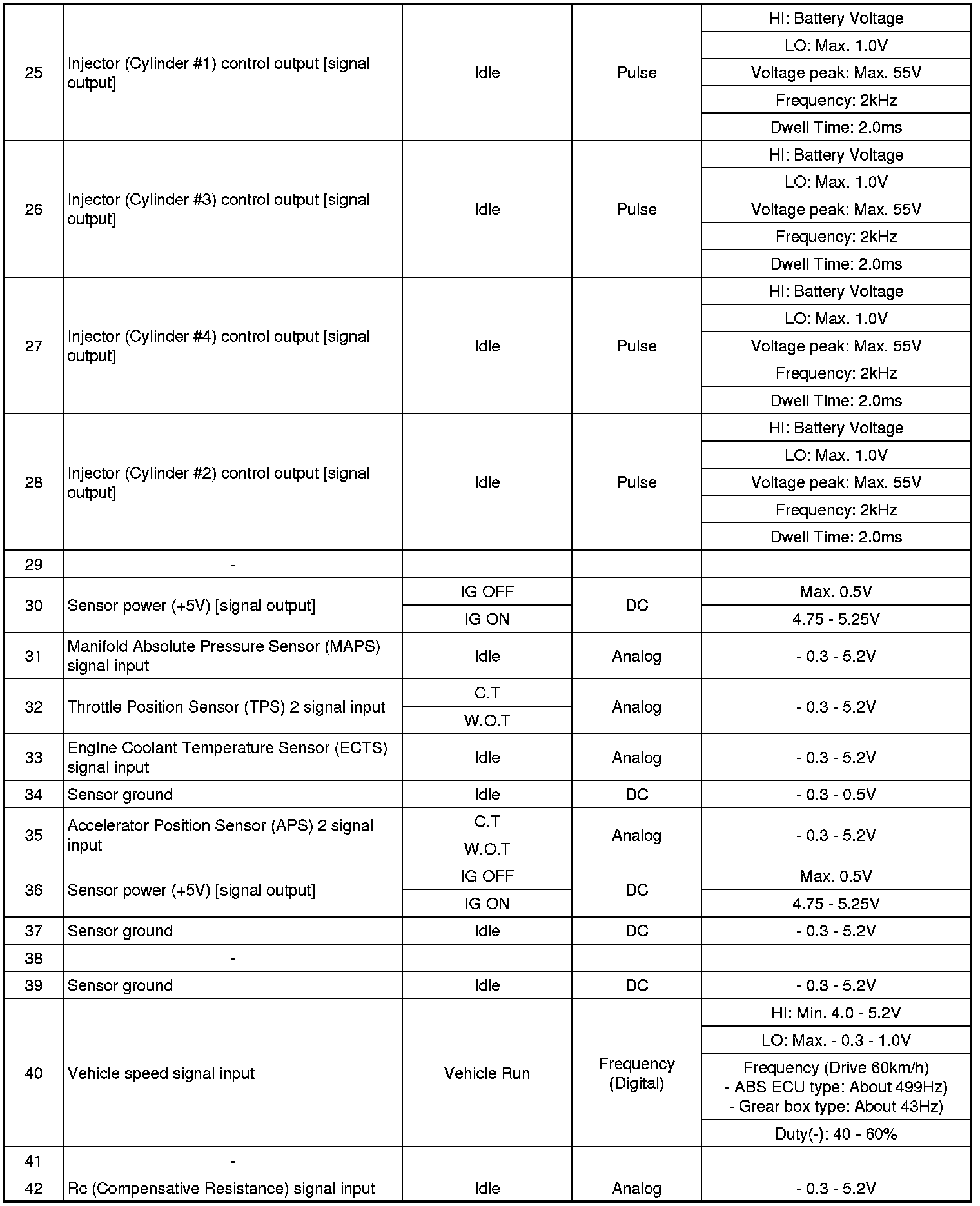

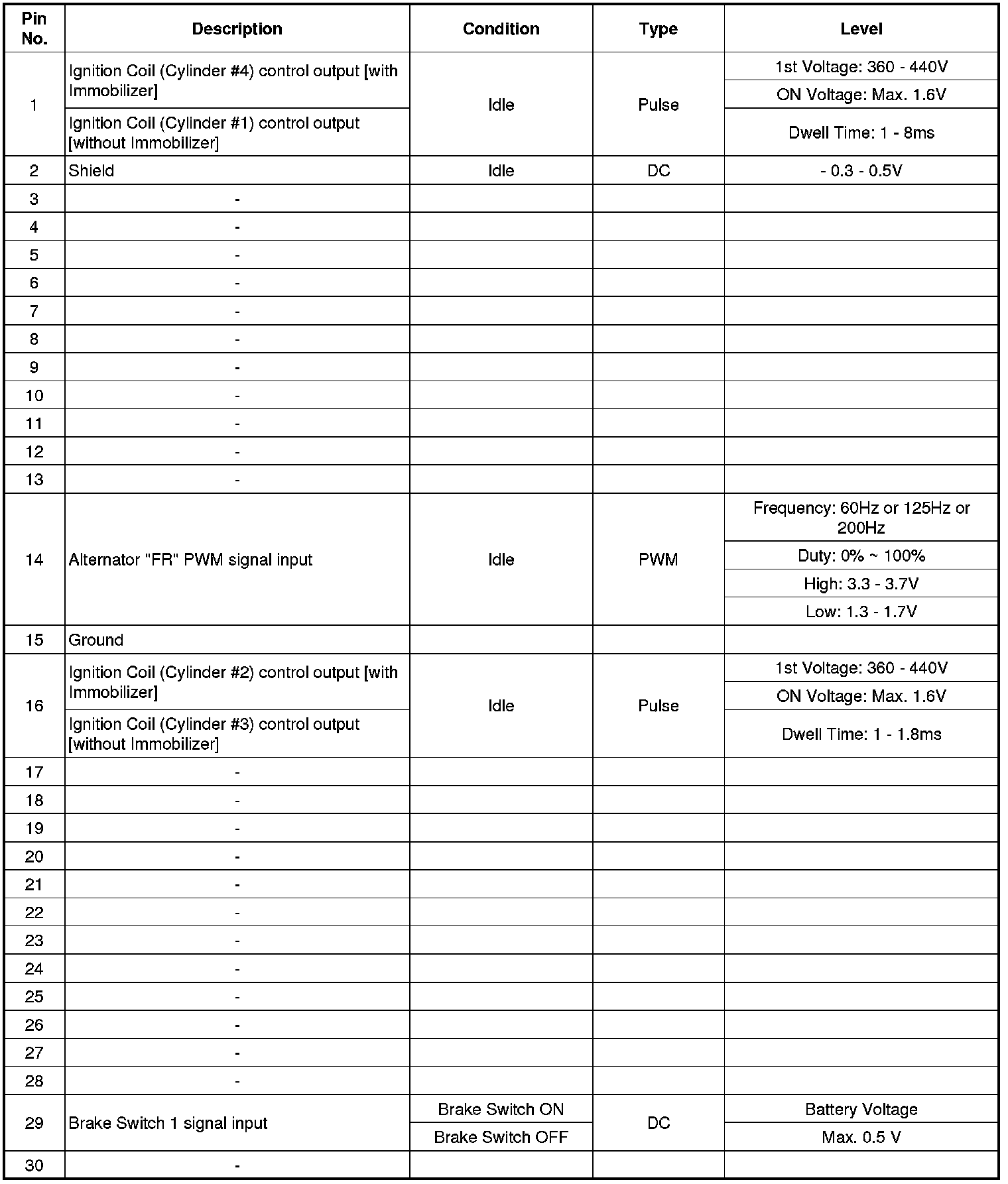

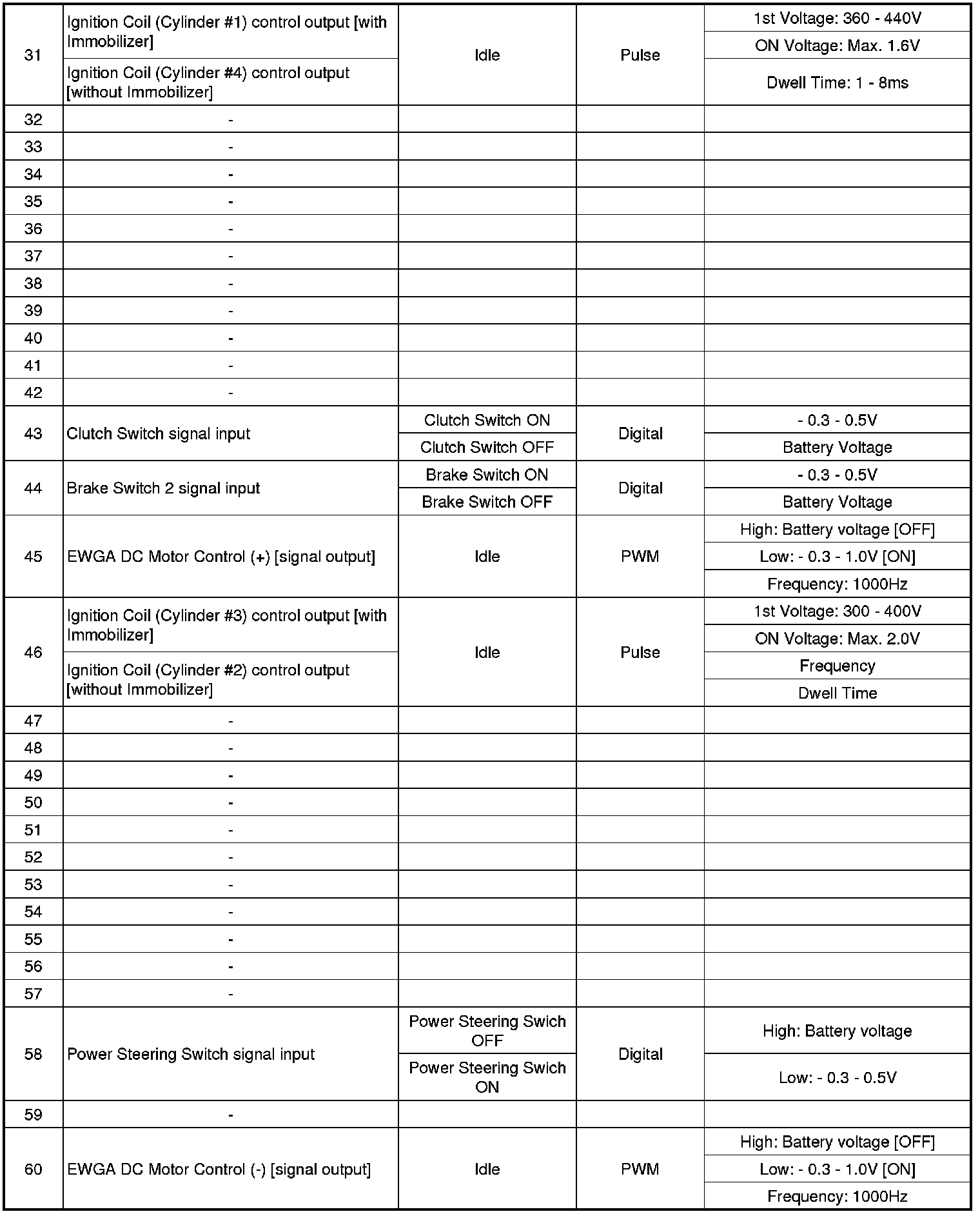

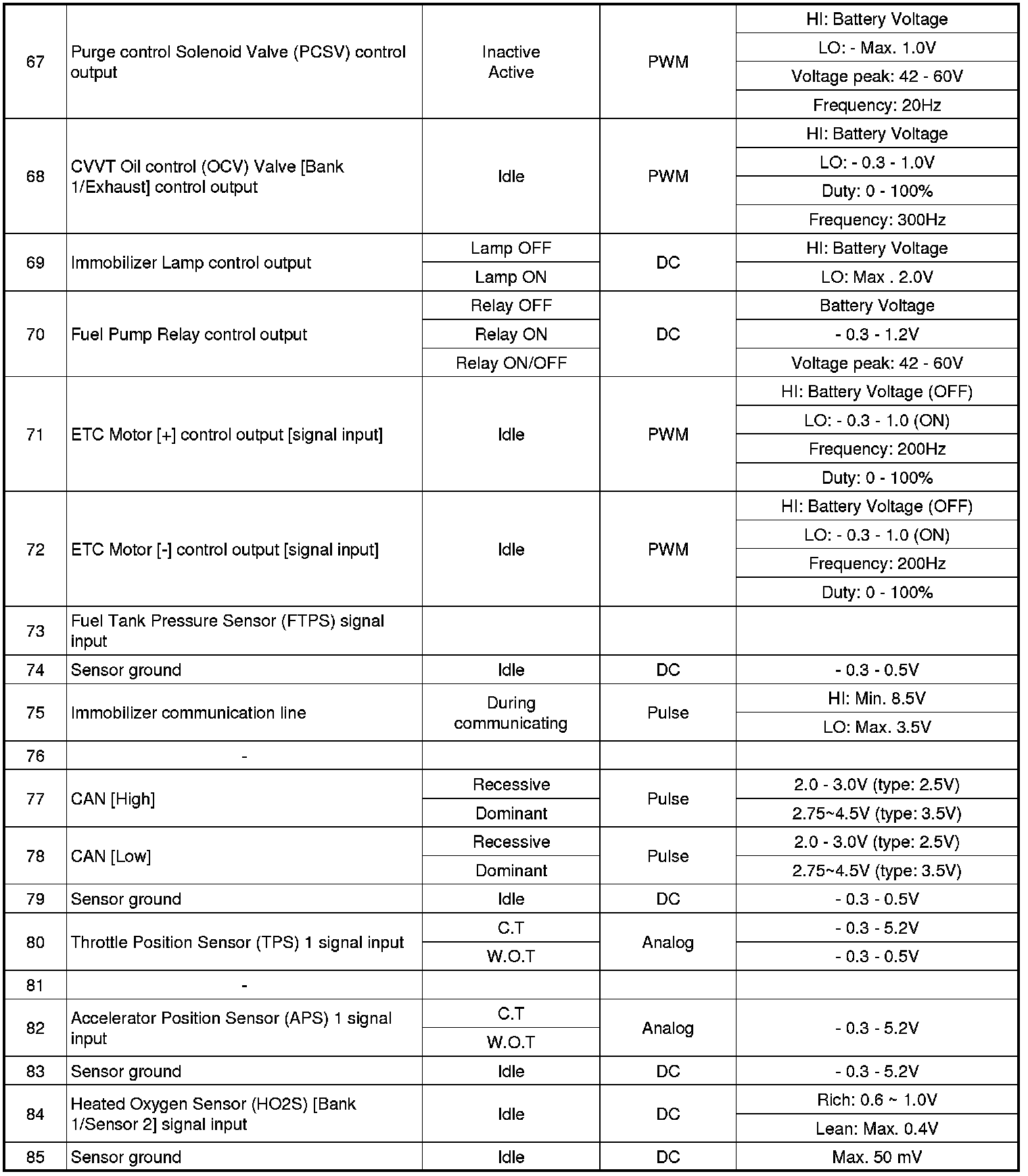

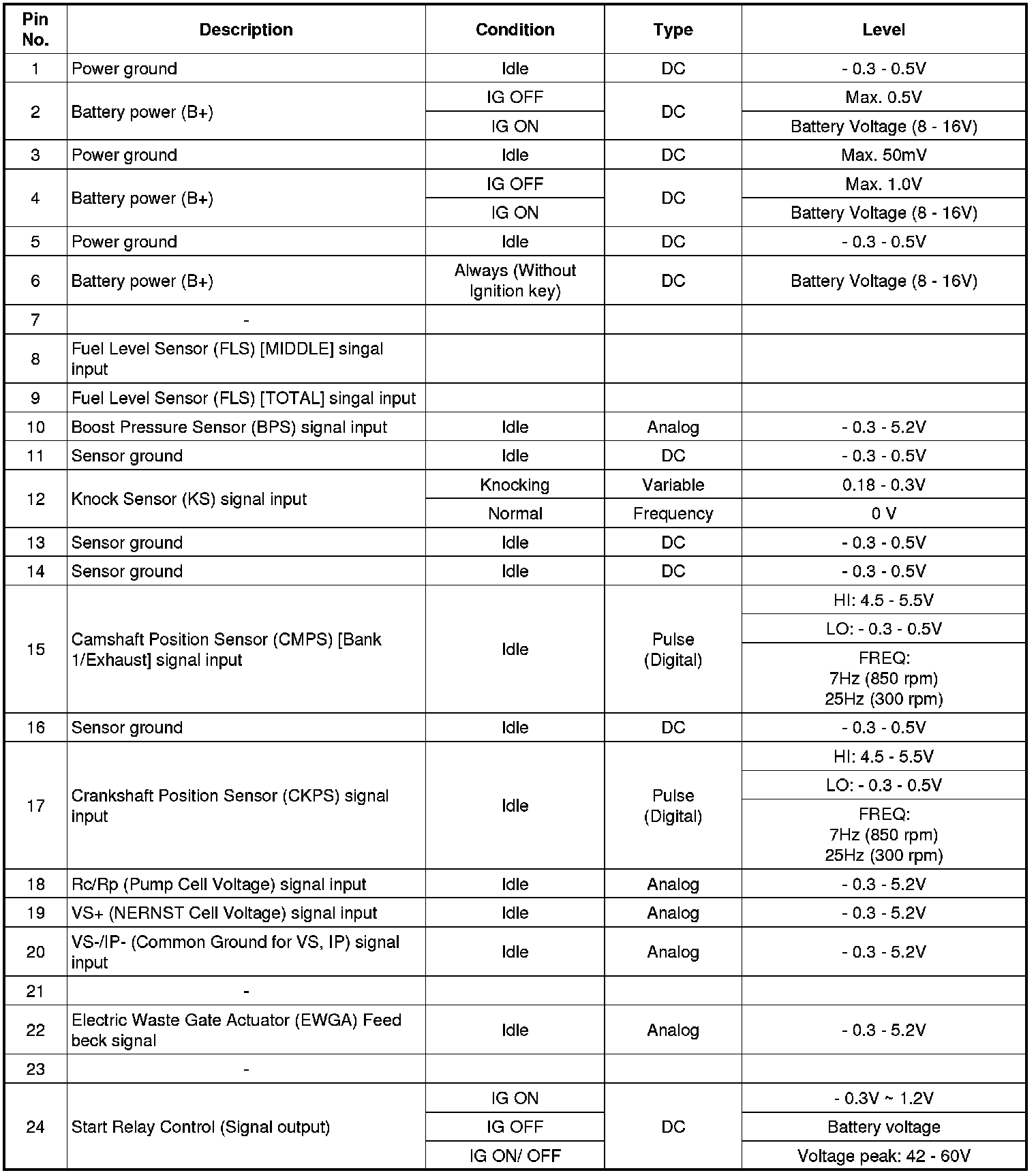

ECM Terminal Input/ Output signal
Connector [CHG-K]





















Connector [CHG-A]

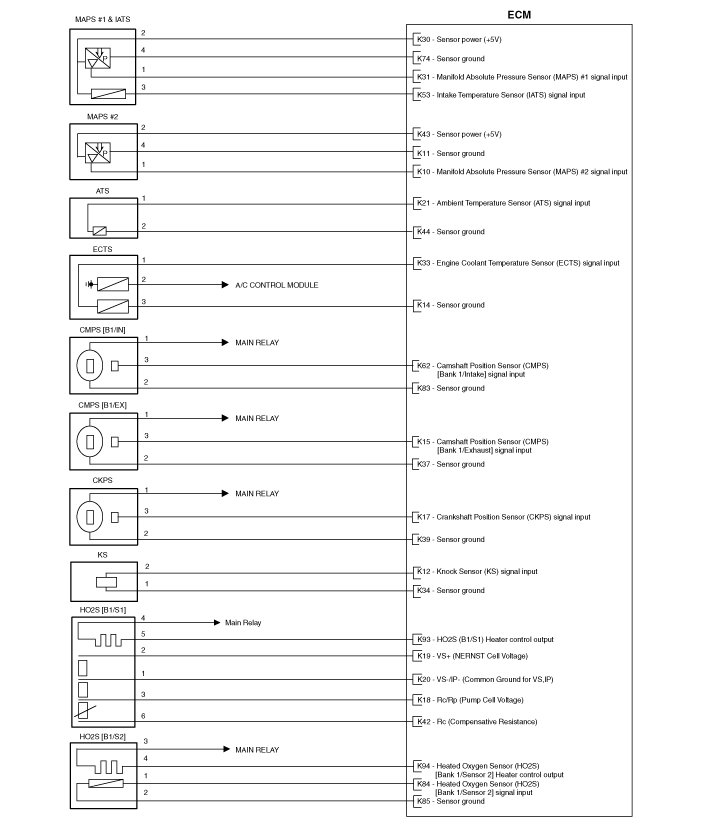

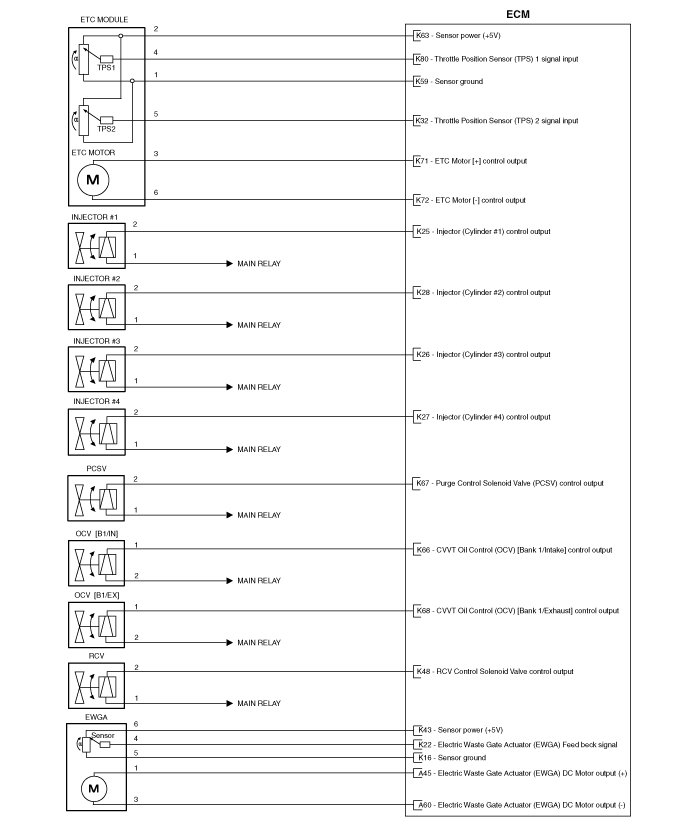

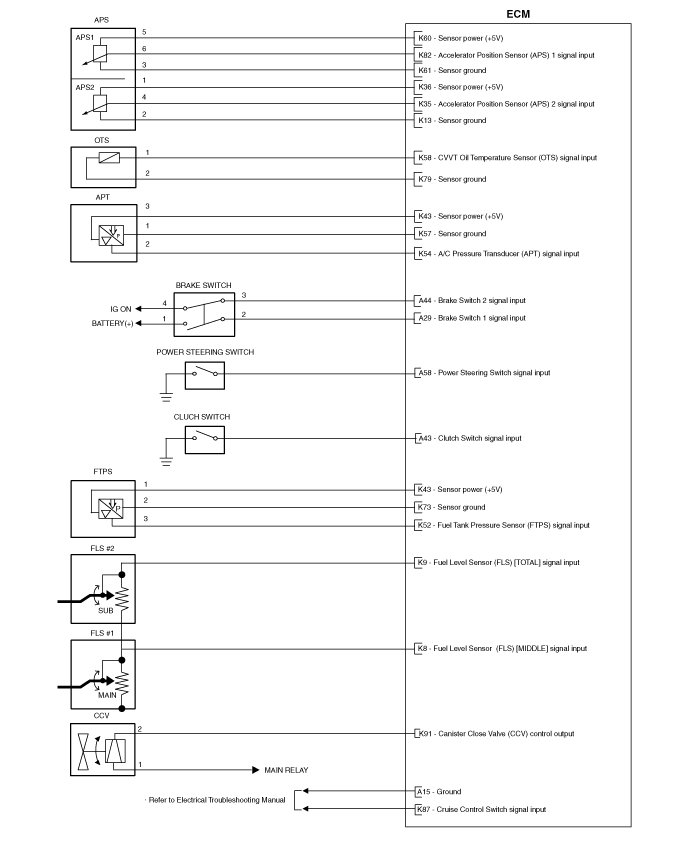

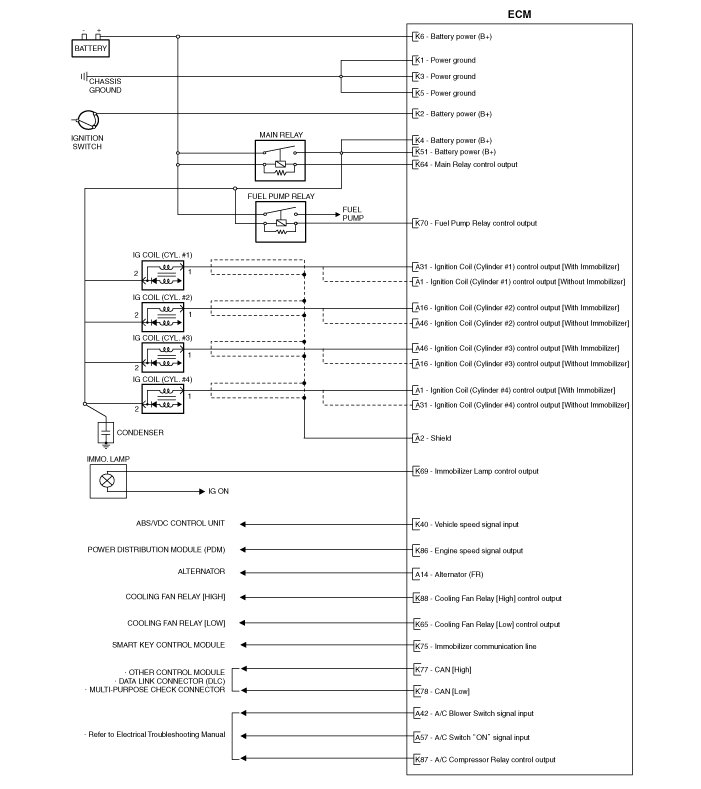

Circuit Diagram
