Hyundai
>>
2013
>>
Genesis Coupe 3.8 Track, Automatic Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System - 3.8L
>>
Barometric Pressure Sensor (BPS)
>>
Schematic Diagram
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram

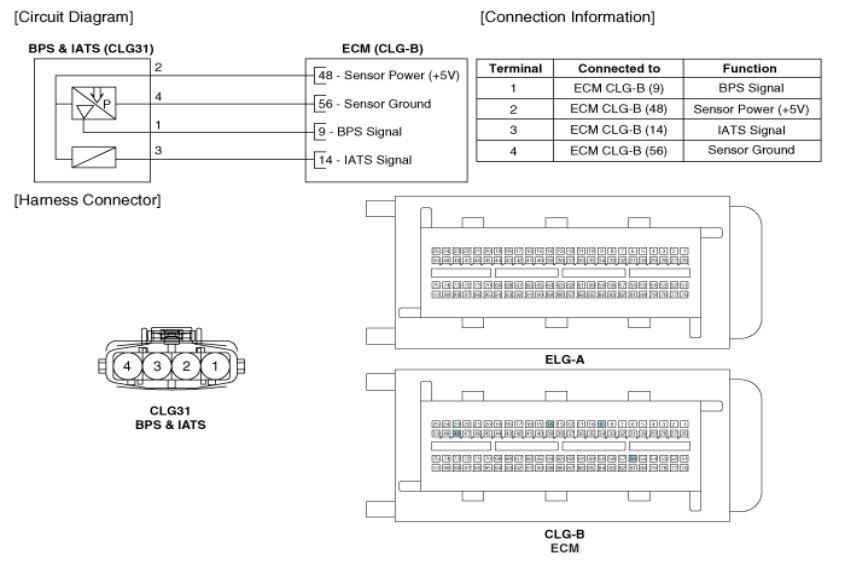

Fig 1: Barometric Pressure Sensor Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
