Head Lamp LH Connector End View (E95)

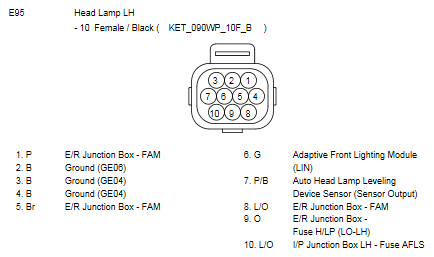

Fig 1: Head Lamp LH Connector End View (E95)
Courtesy of HYUNDAI MOTOR AMERICA
