FOB Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IGN ON, select the "FOB KEY STATUS INFO".
    Fig 1: Display - FOB KEY STATUS INFO
    G00153284Courtesy of HYUNDAI MOTOR AMERICA

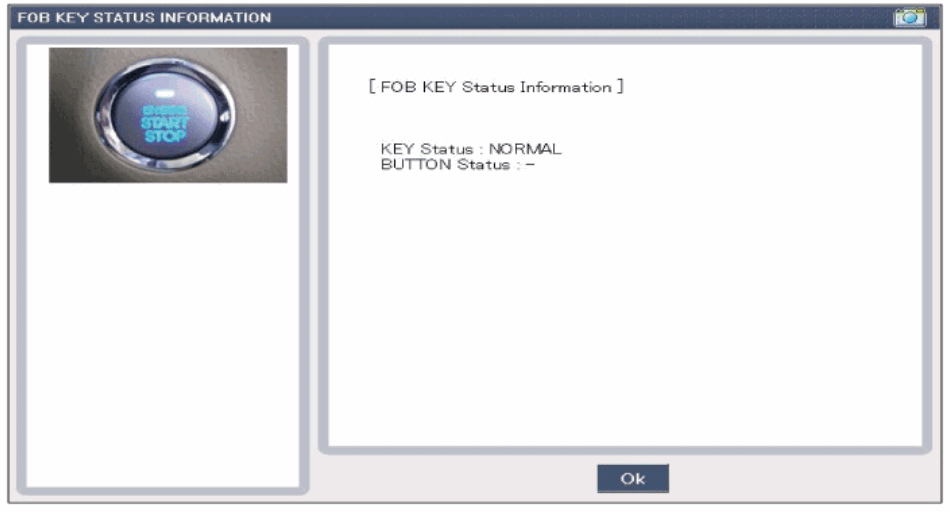

    Fig 2: Display - FOB KEY Status Information
    G00553285Courtesy of HYUNDAI MOTOR AMERICA
