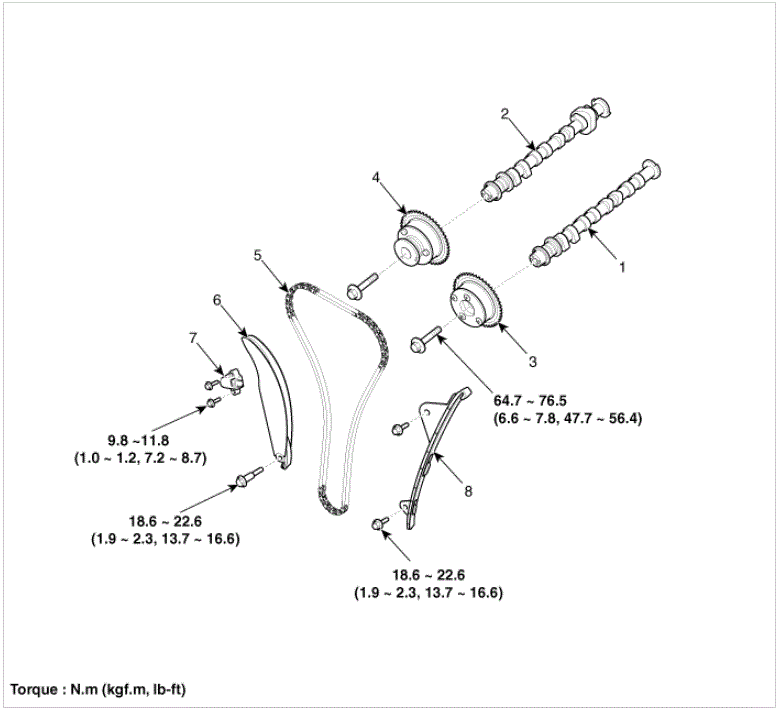

Components and Components Location: Components
WARNING: This page is about a different car, the 2014 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of HYUNDAI MOTOR AMERICA
| 1. Intake camshaft |
5. Timing chain |
| 2. Exhaust camshaft |
6. Timing chain tensioner arm |
| 3. Intake CVVT assembly |
7. Timing chain tensioner |
| 4. Exhaust CVVT assembly |
8. Timing chain guide |
