2013
>>
Elantra GT Automatic Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System
>>
Heated Oxygen Sensor (HO2S)
>>
Schematic Diagrams
>>
Circuit Diagram
>>
(M/T)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram: (M/T)

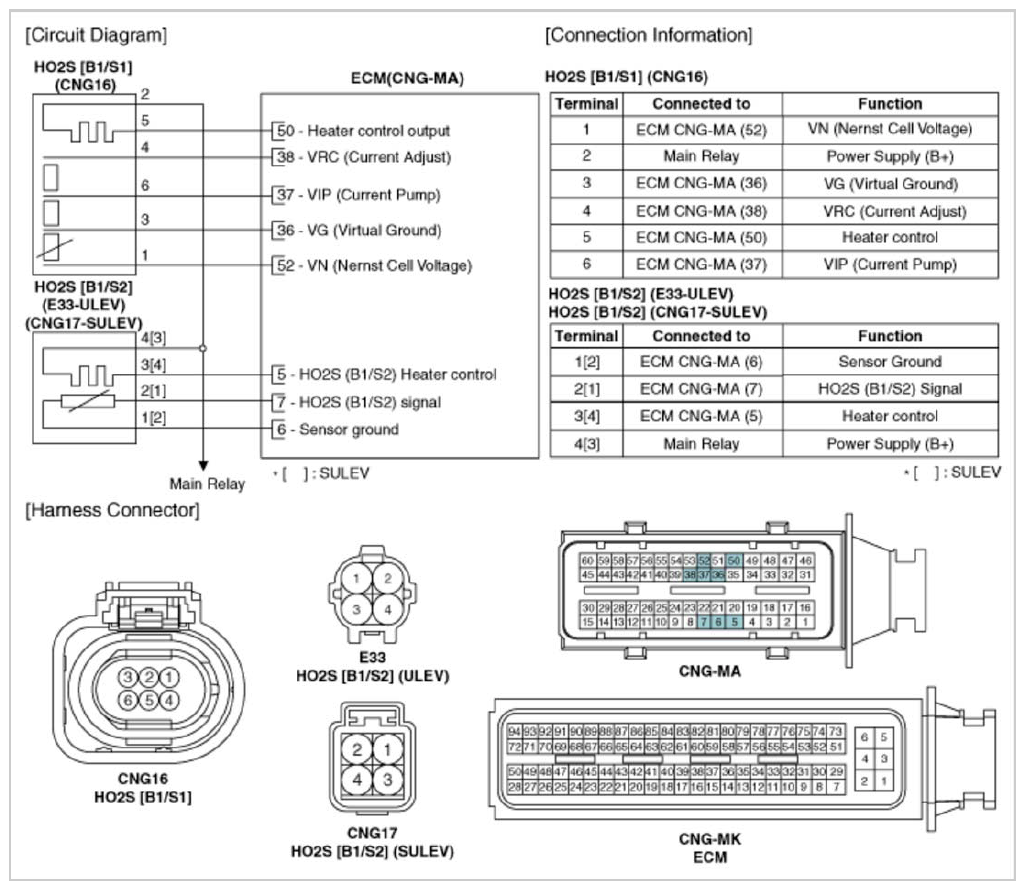

Fig 1: Heated Oxygen Sensor - B1/S1 Schematic Diagrams (M/T)
Courtesy of HYUNDAI MOTOR AMERICA
