Circuit Diagram: (A/T)

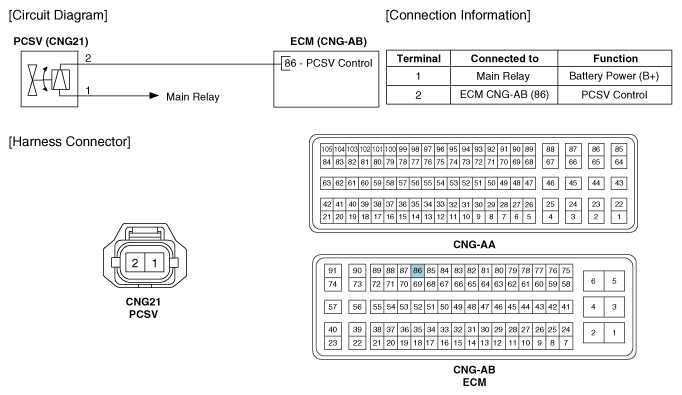

Fig 1: Purge Control Solenoid Valve Circuit Diagram (A/T)

G10234915

Courtesy of HYUNDAI MOTOR AMERICA
