Driver IMS Module Connector End View (S04-C)

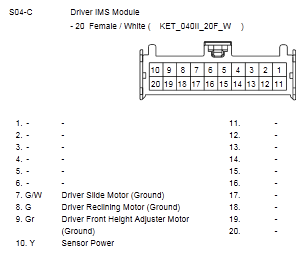

Fig 1: Driver IMS Module Connector End View (S04-C)
G10775598Courtesy of HYUNDAI MOTOR AMERICA
