Diagnostic Circuit

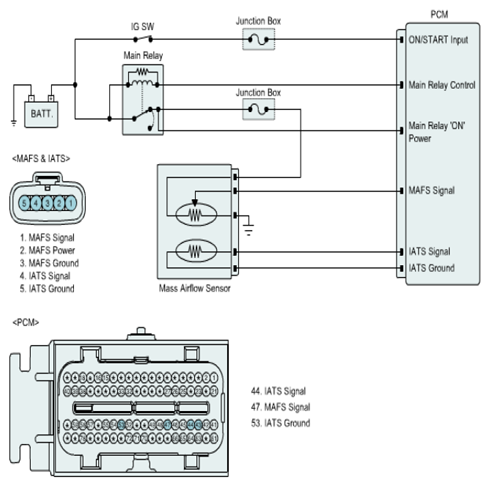

Fig 1: Intake Air Temperature Sensor 1 Circuit Low Input - Diagnostic Circuit Diagram
G06859751Courtesy of HYUNDAI MOTOR CO.
