Operation Of Components: Notes

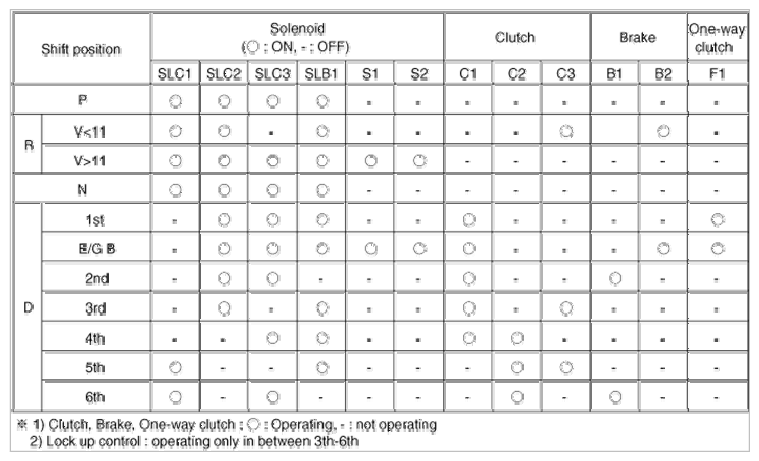

Fig 1: Components Operation Reference Table
G06888350Courtesy of HYUNDAI MOTOR CO.
