Monitor DTC Status

  1. Check DTC Status
    1. Connect scan tool to Data Link Connector (DLC).
    2. IG "ON".
    3. Select "DTC" button, and then Press "DTC Status" to check DTC's information from the DTCs menu
    4. Read "DTC Status" parameter.

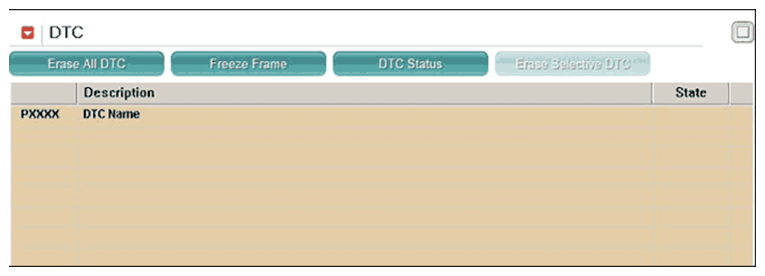

      Fig 1: Scantool Display - DTC
      G06859829Courtesy of HYUNDAI MOTOR CO.

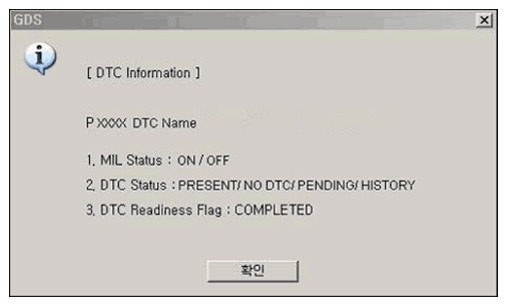

      Fig 2: Scantool Display - GDS
      G06859830Courtesy of HYUNDAI MOTOR CO.
    5. Is parameter displayed "Present fault"?

      YES

      1. Go to "COMPONENT INSPECTION " procedure.

      NO

      1. Fault is intermittent, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
