Components and Components Location: Components

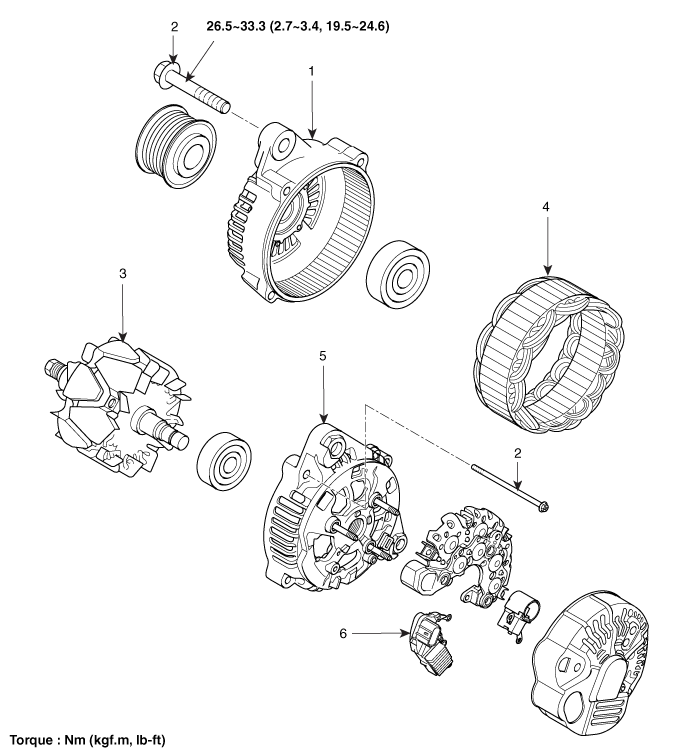

Fig 1: Exploded View Of Alternator Components
G00534591Courtesy of HYUNDAI MOTOR CO.
  1. Generator front frame assembly
  2. Bolt
  3. Rotor assembly
  4. Stator assembly
  5. Rear bracket assembly
  6. Regulator assembly
