System Specifications





Specifications





NOTE:
O.D. : Outer Diameter
I.D : Inner Diameter

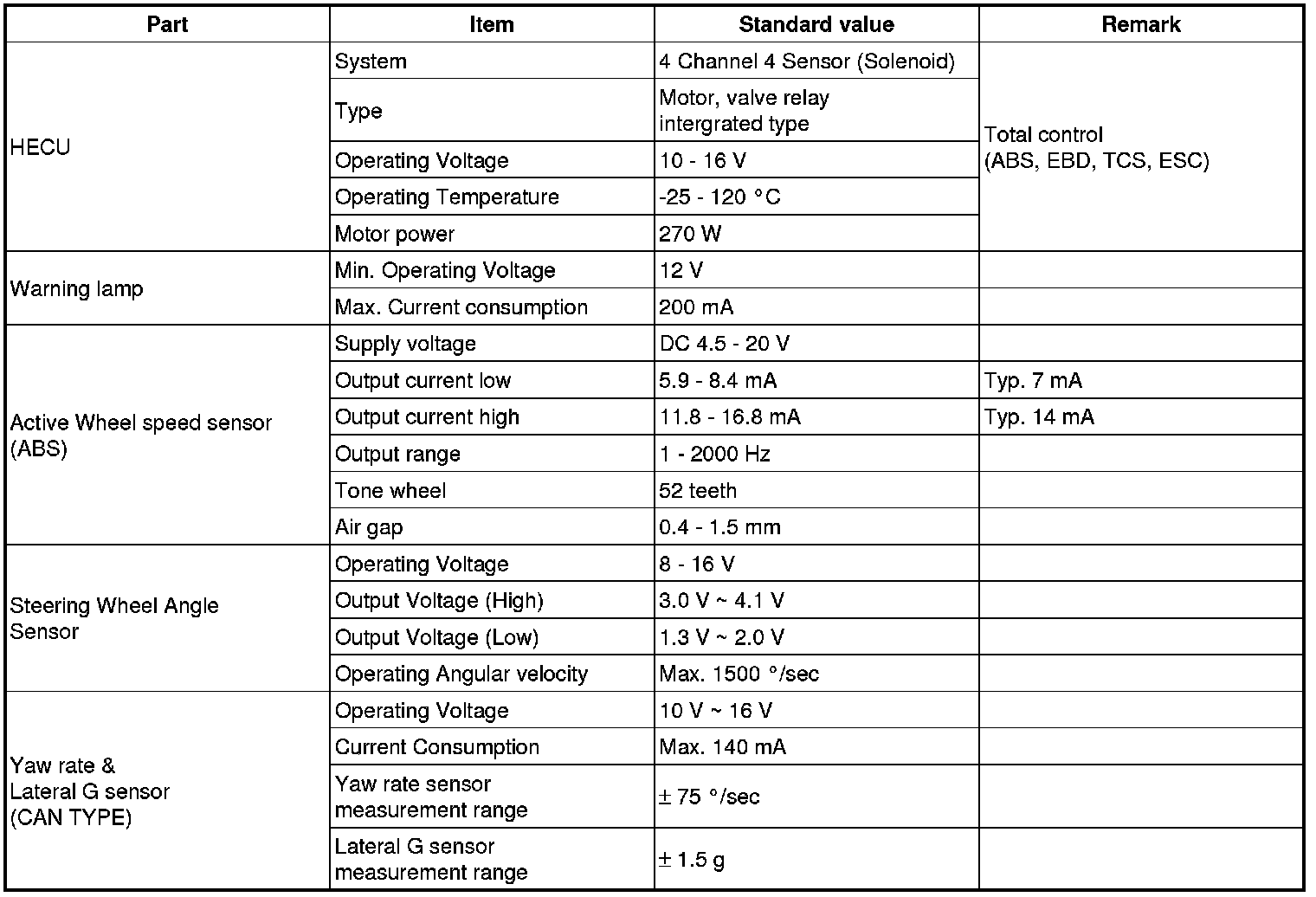

Specification(ESC)






Service Standard

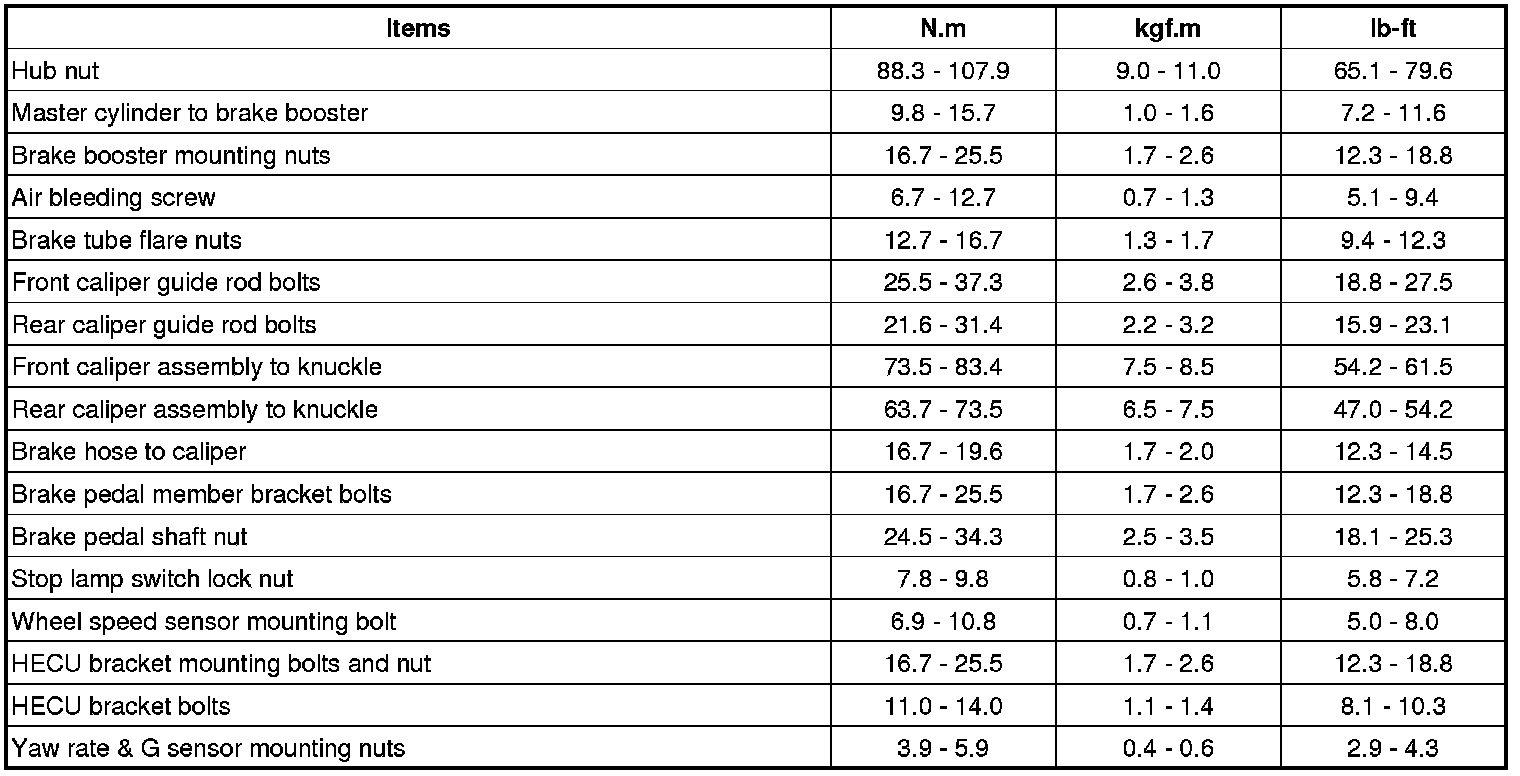

Tightening Torques






Lubricants
