Engine Control Module





ECM Terminal And Input/output Signal

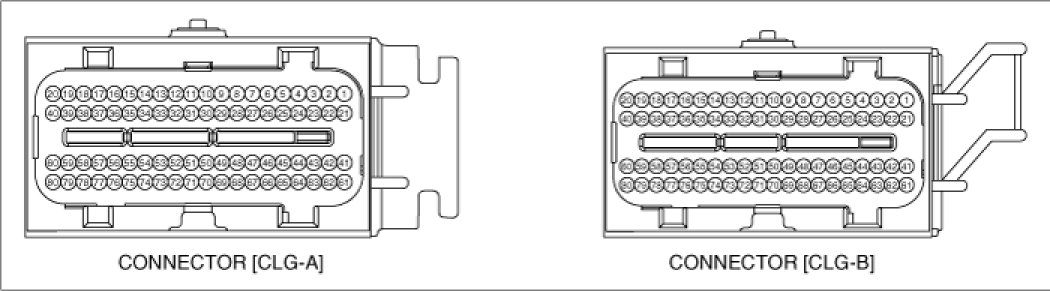

ECM Harness Connector

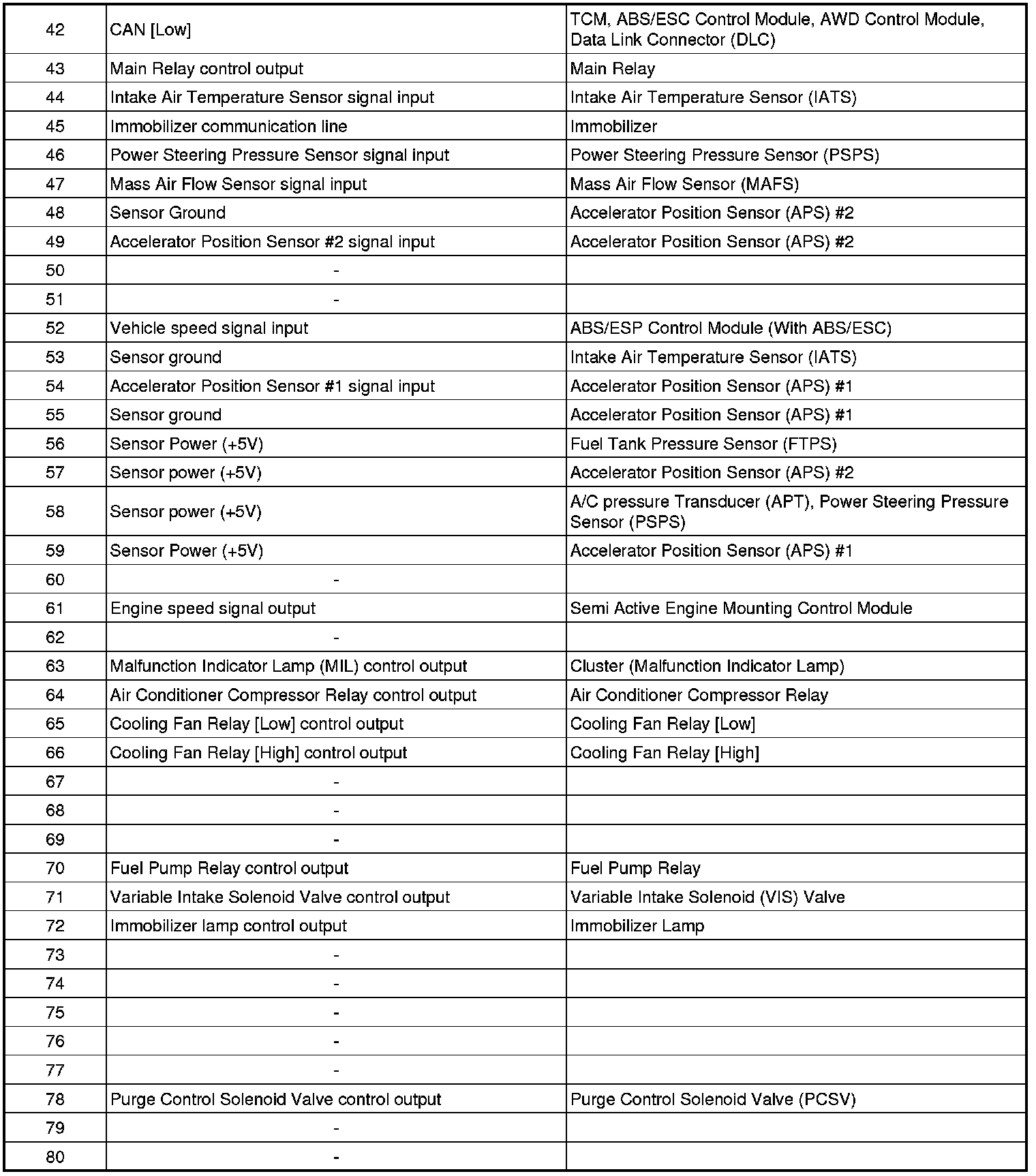

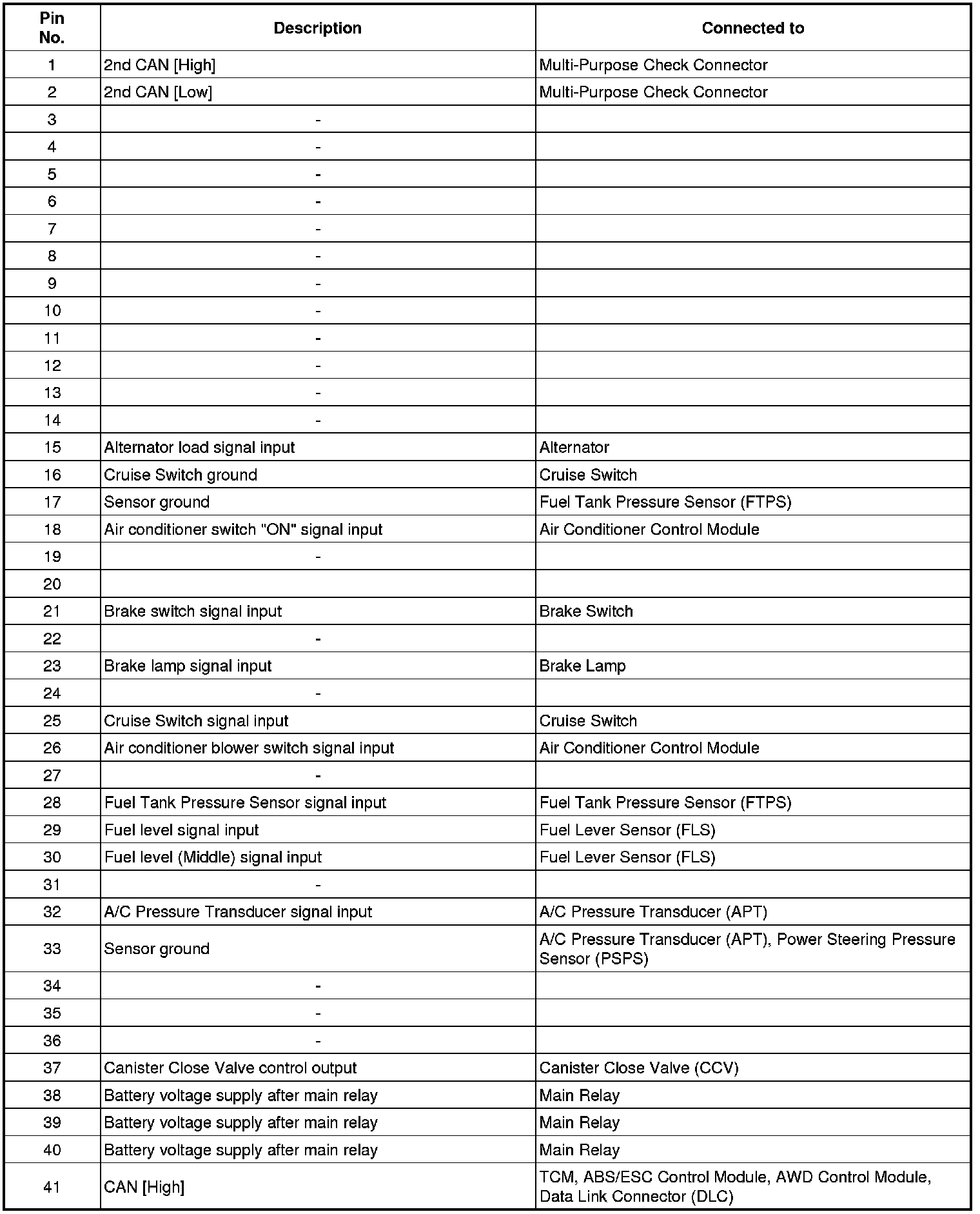

ECM Terminal Function
Connector [CLG-A]

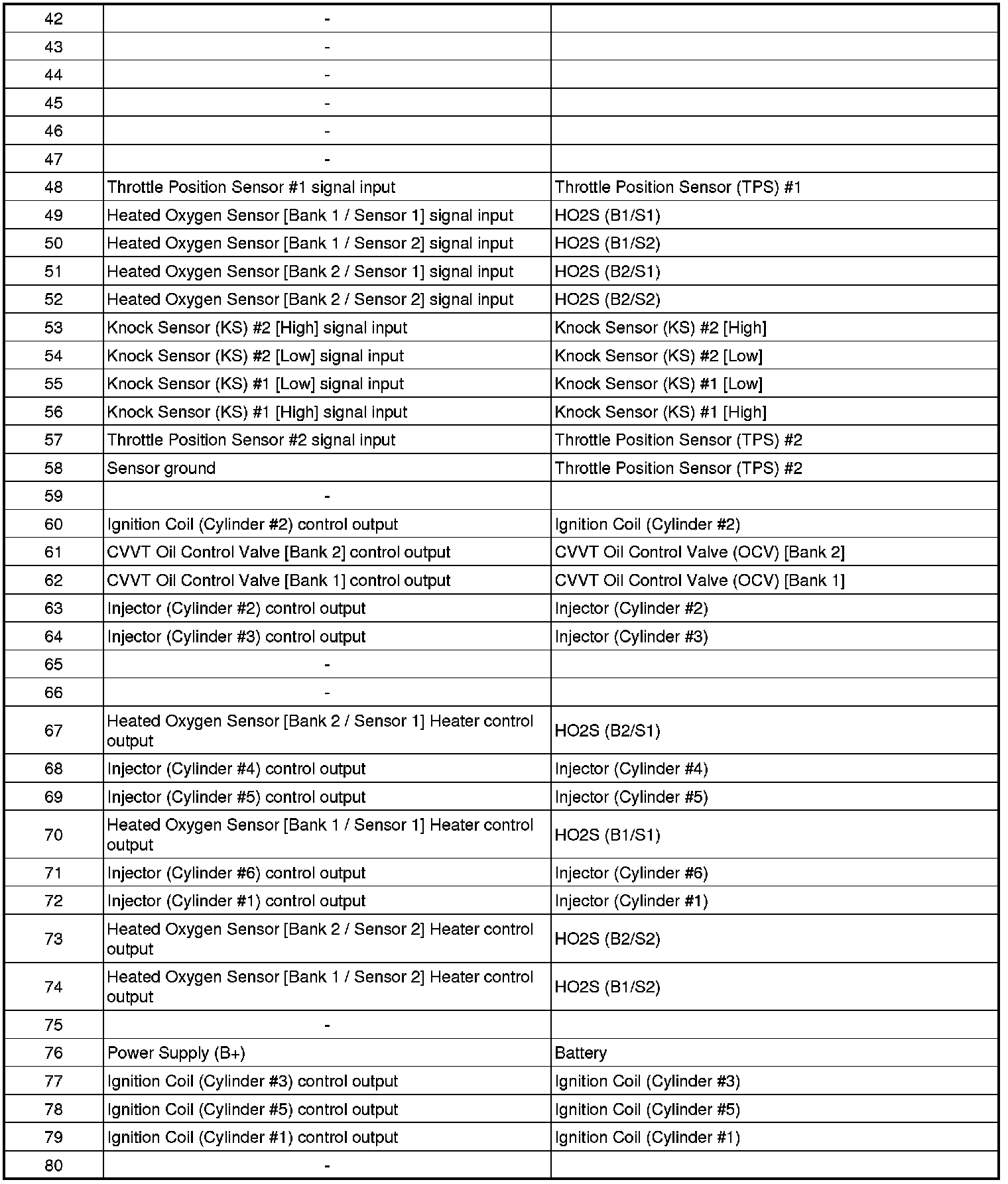

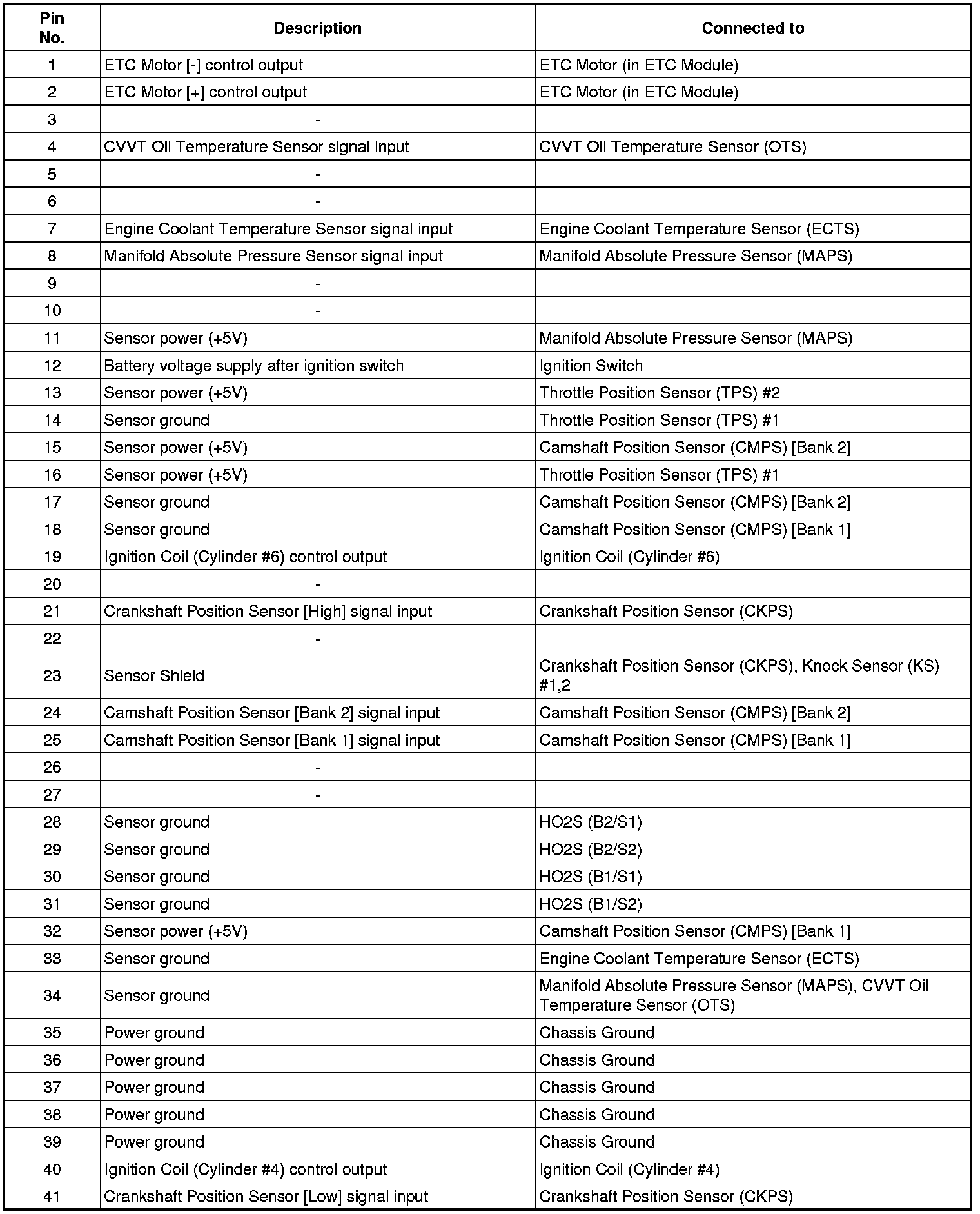

Connector [CLG-B]

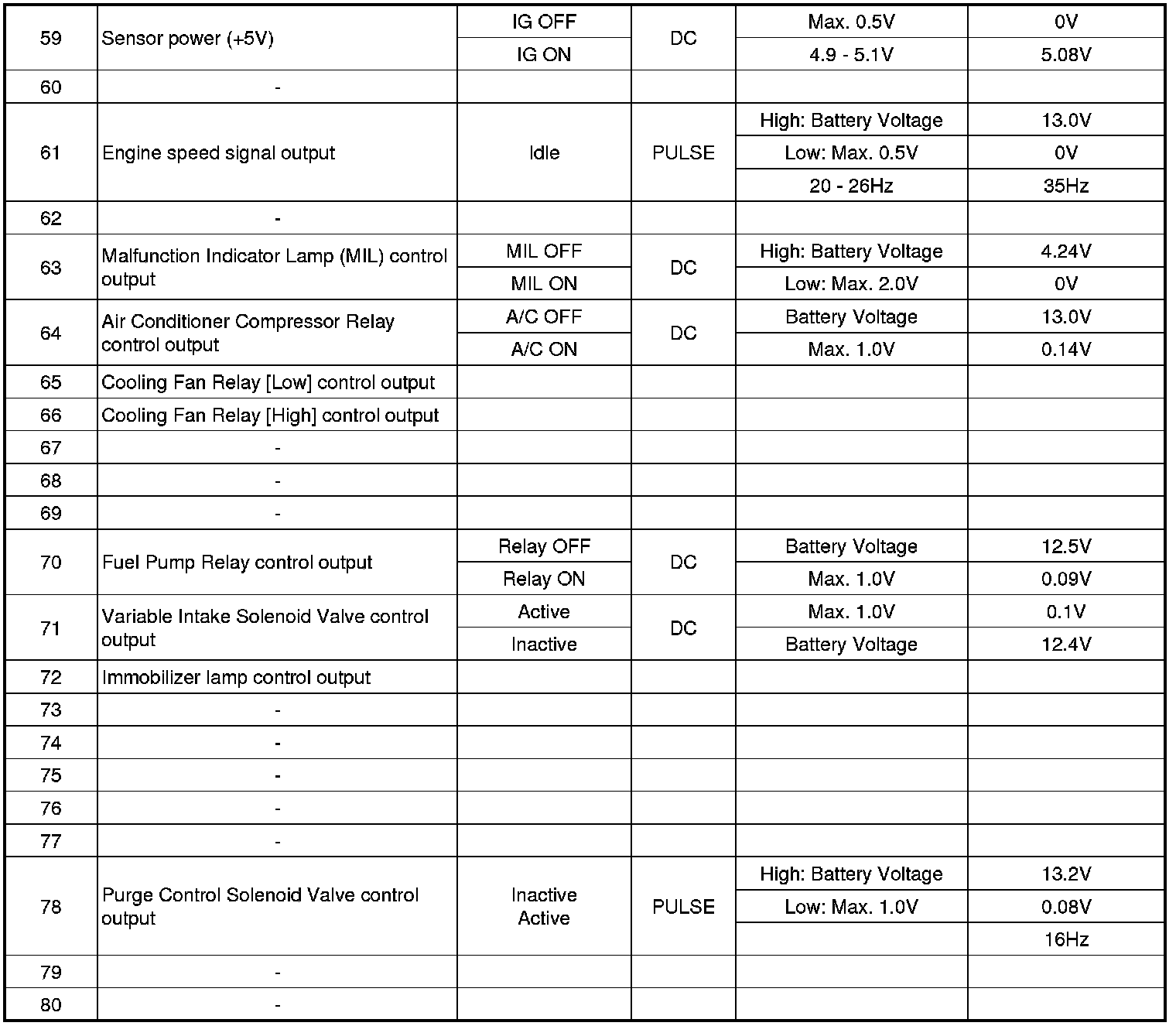

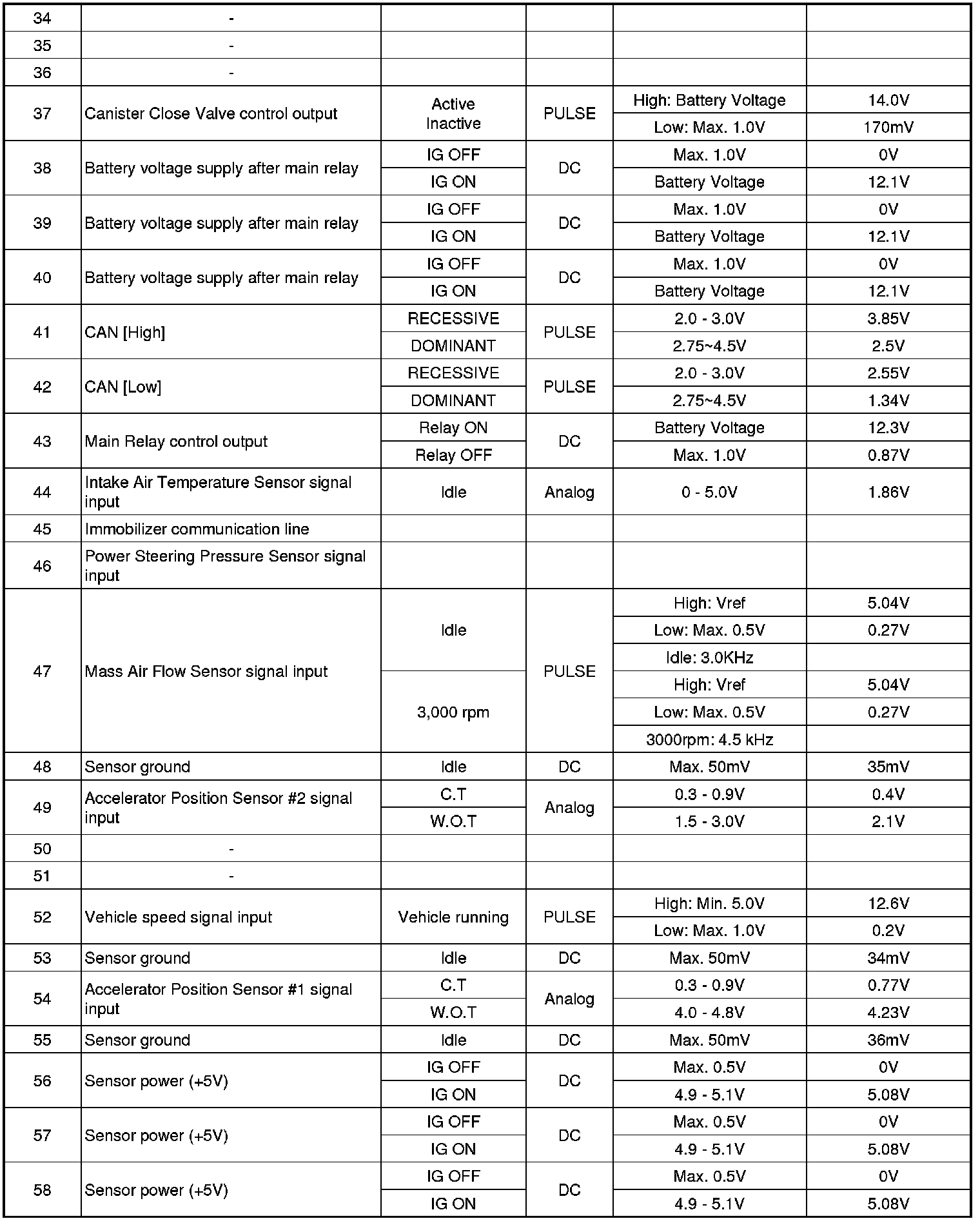

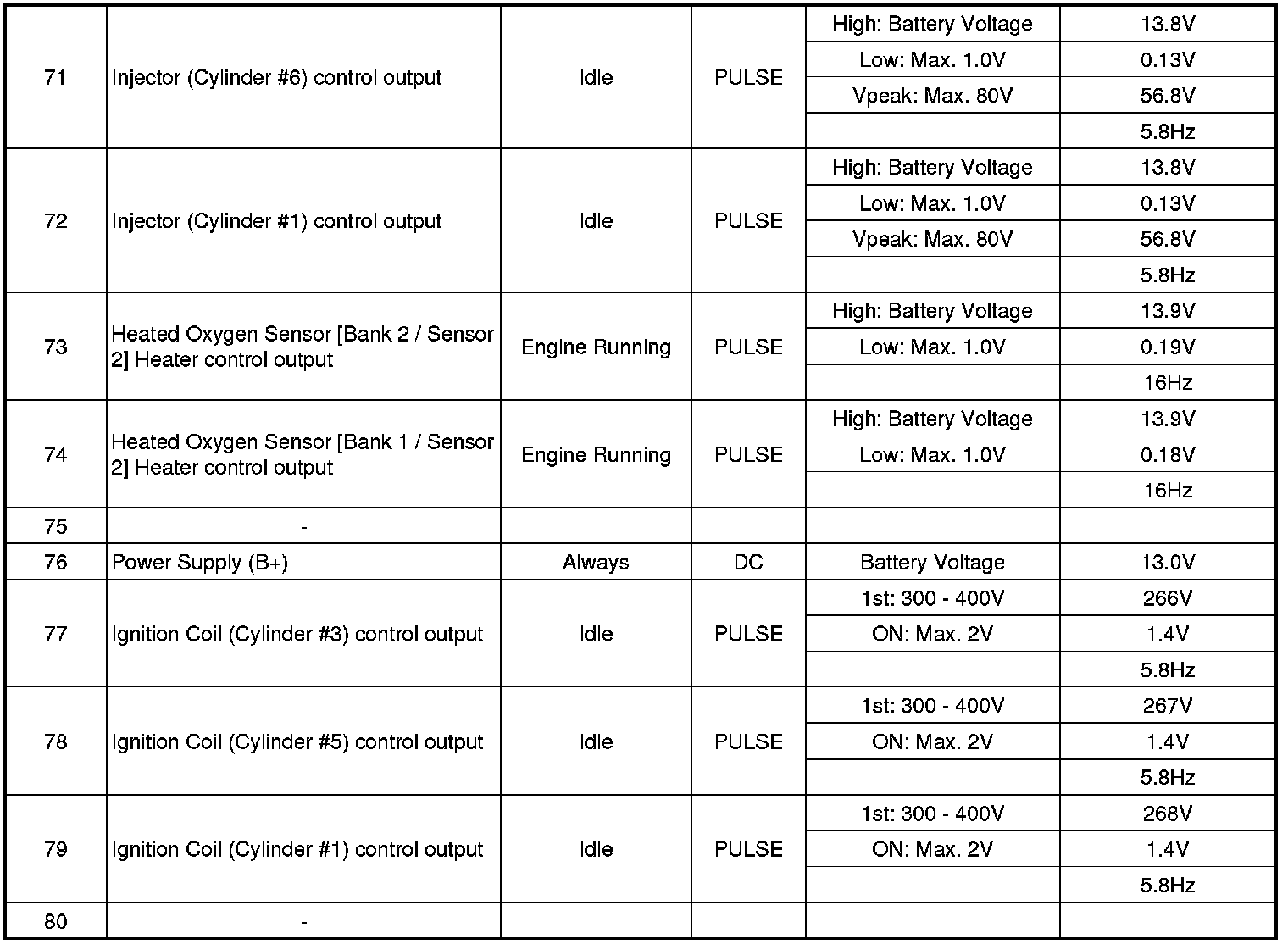

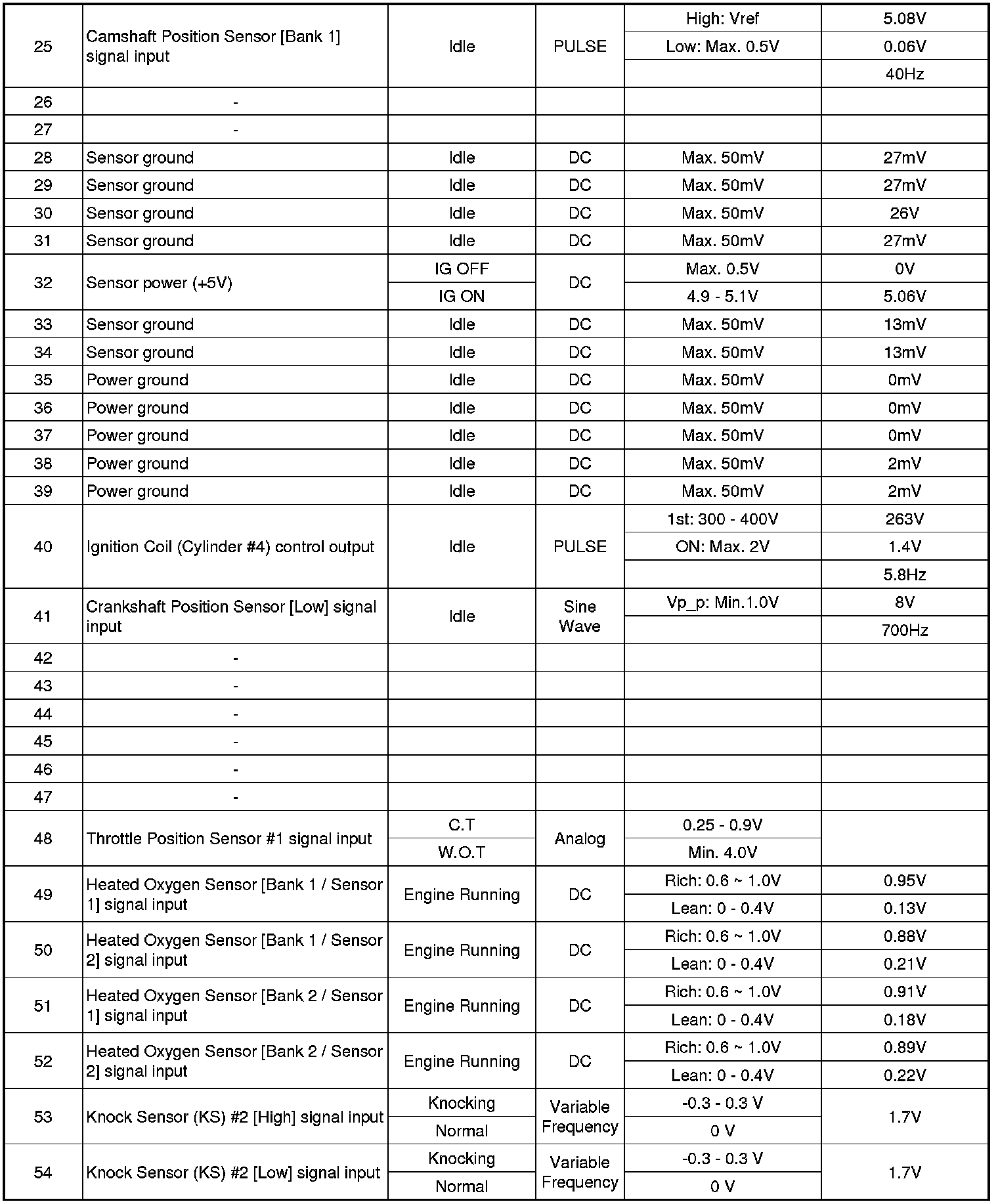

ECM Terminal Input/output Signal

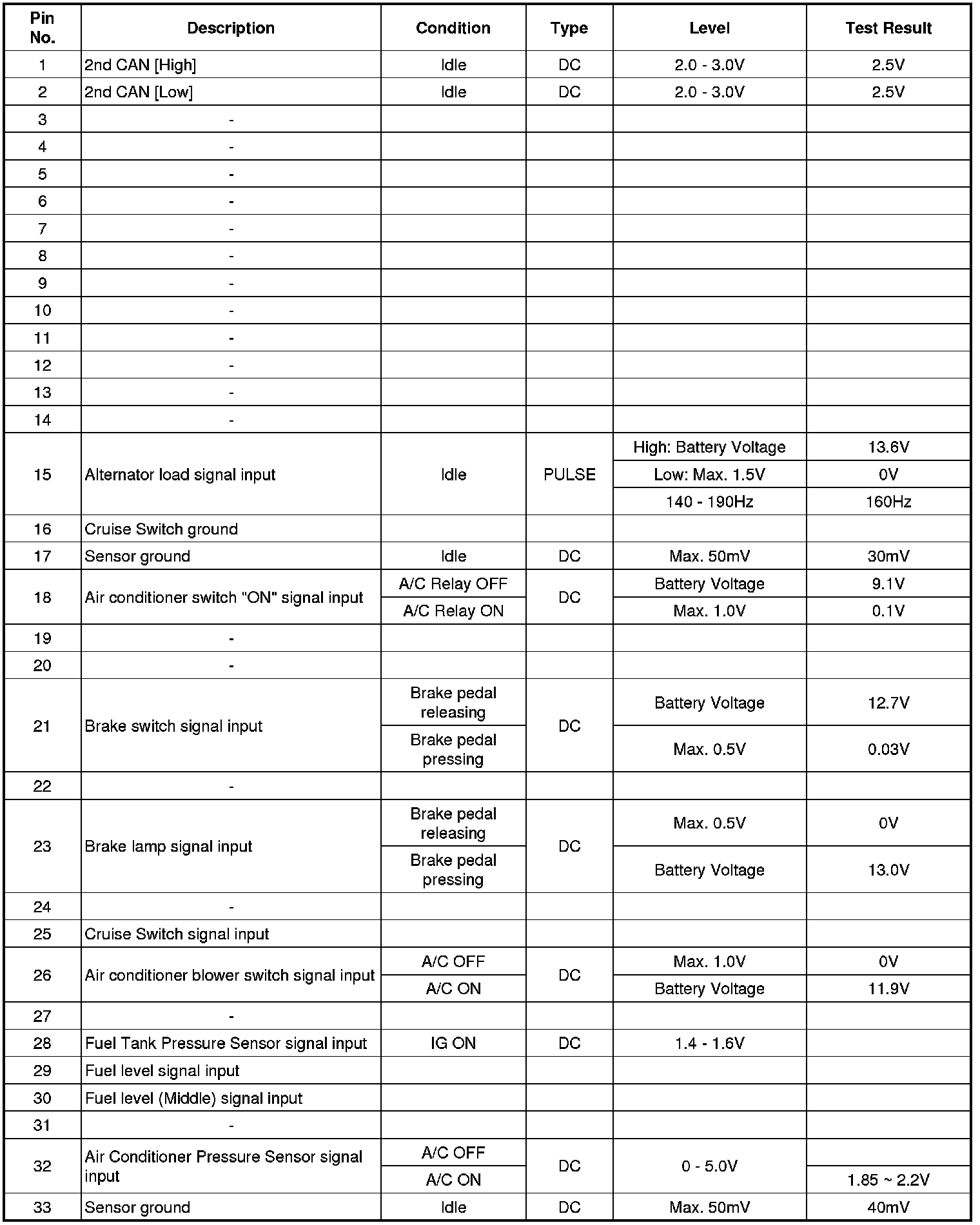

Connector [CLG-A]

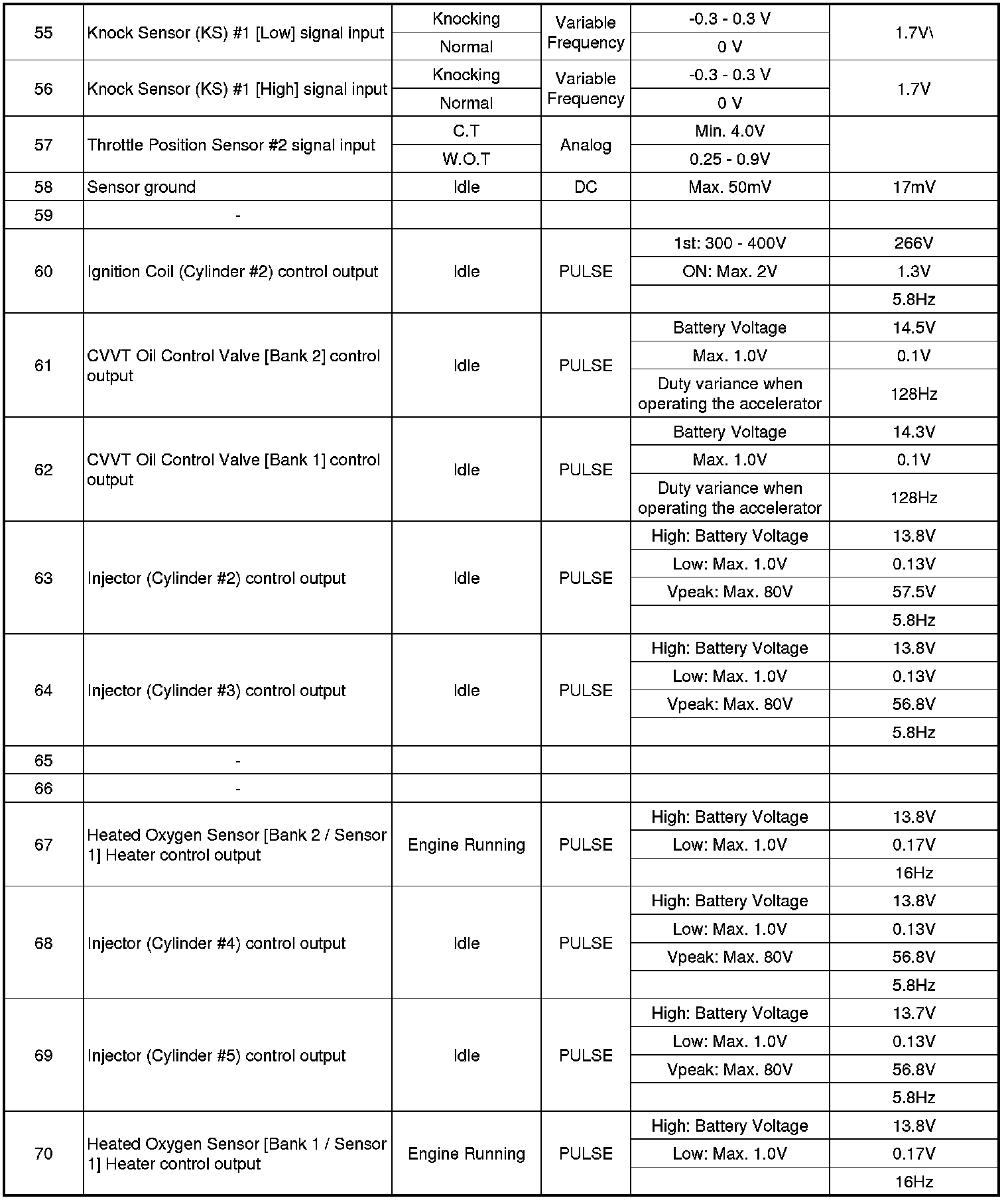

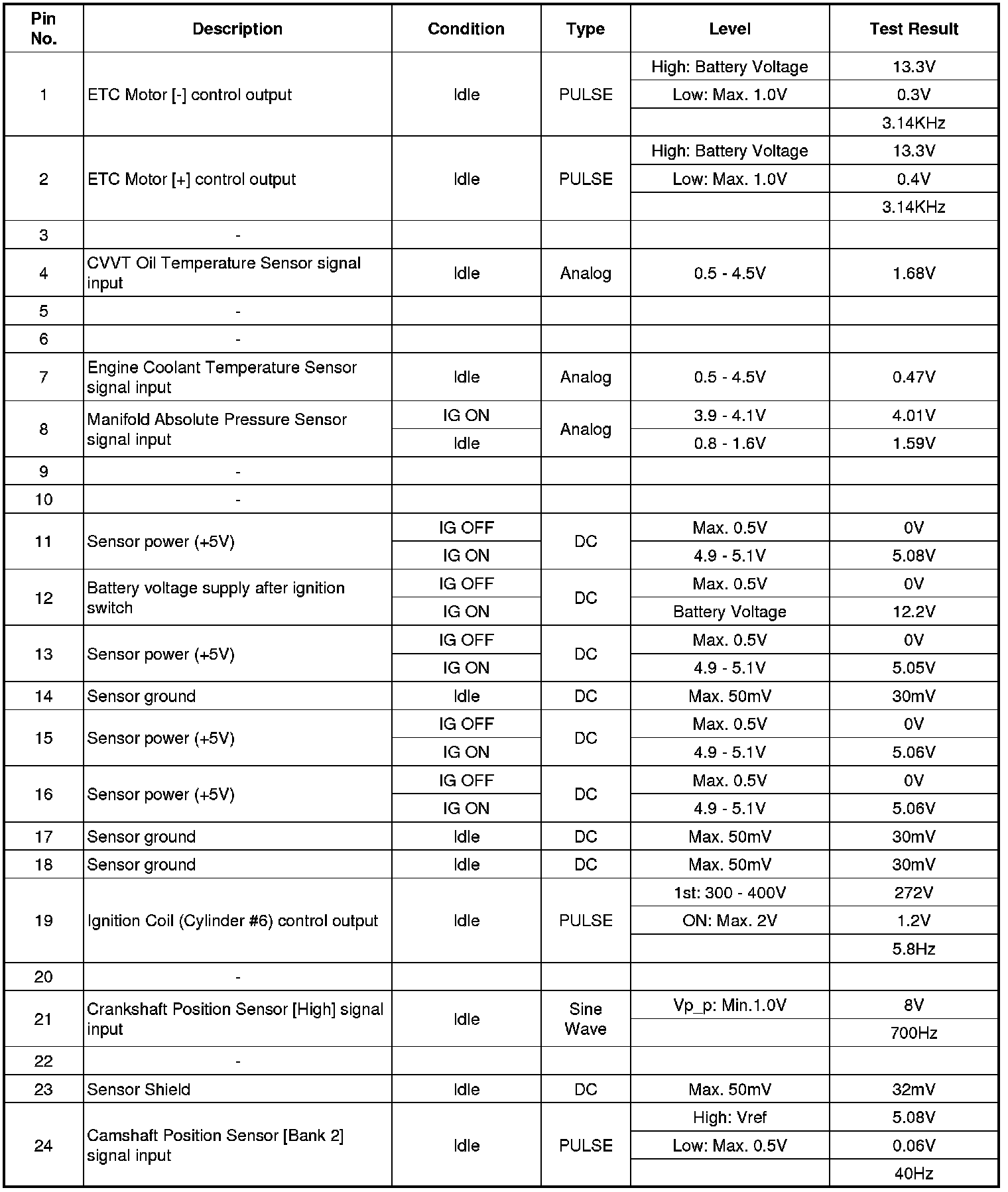

Connector [CLG-B]

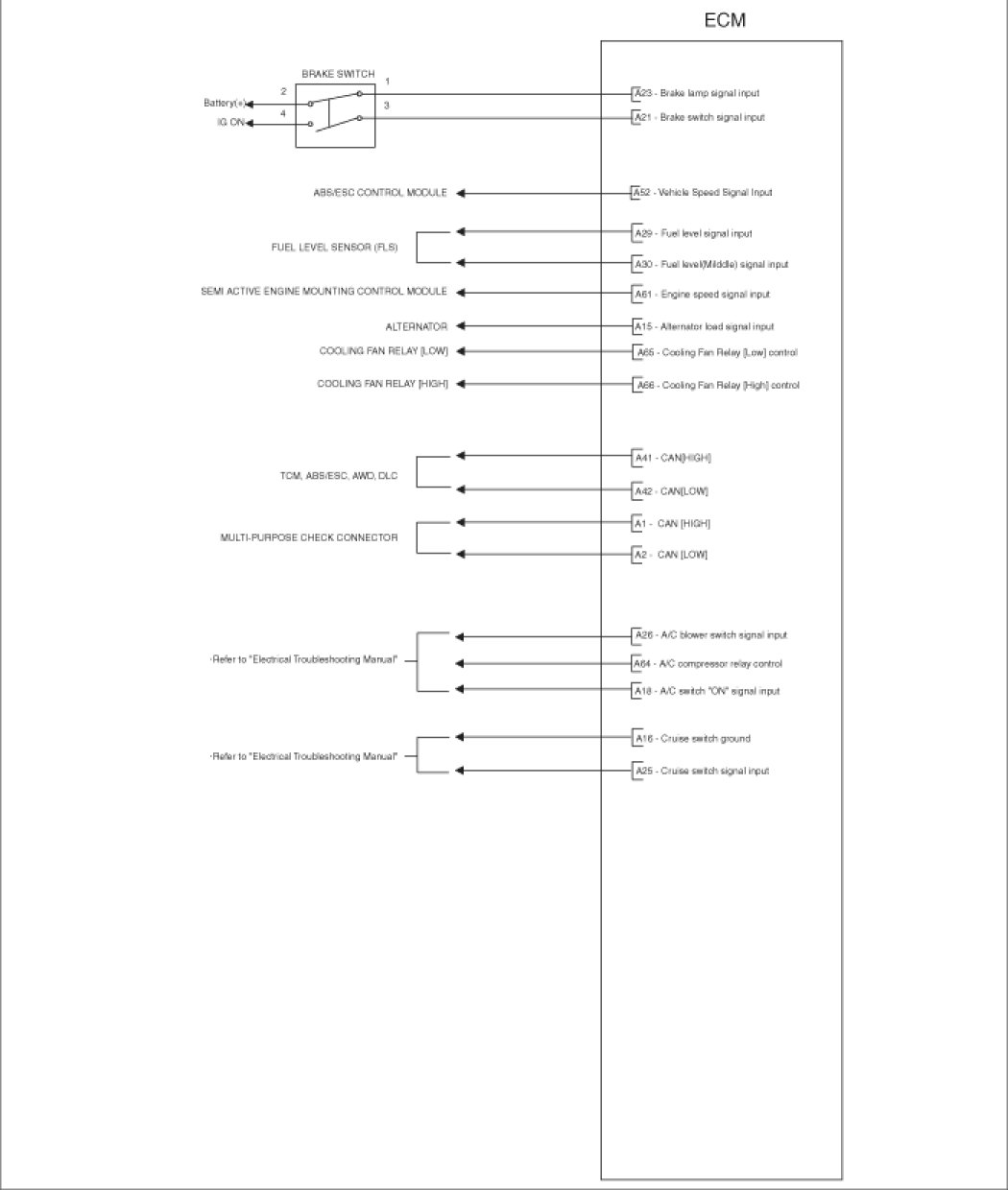

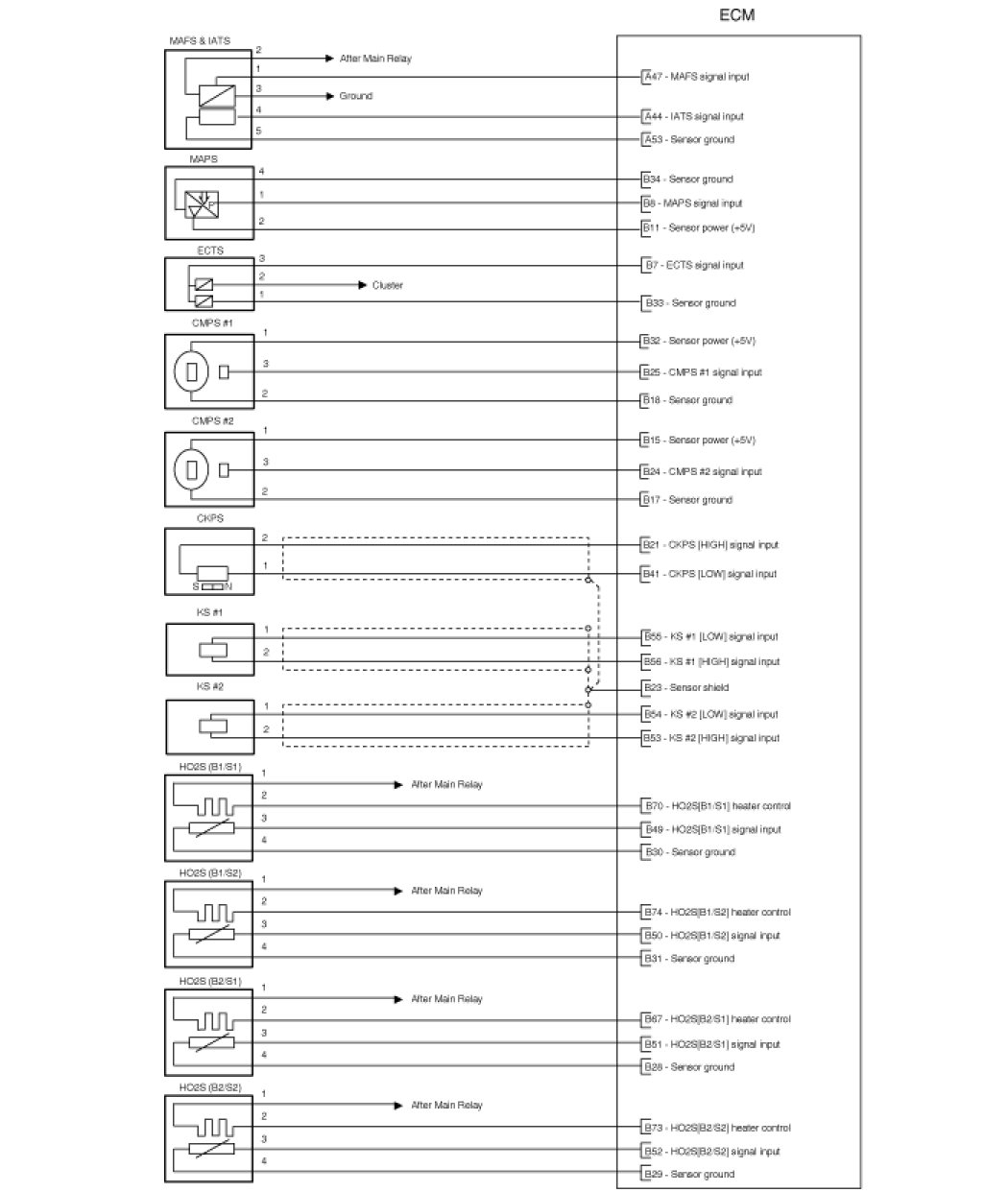

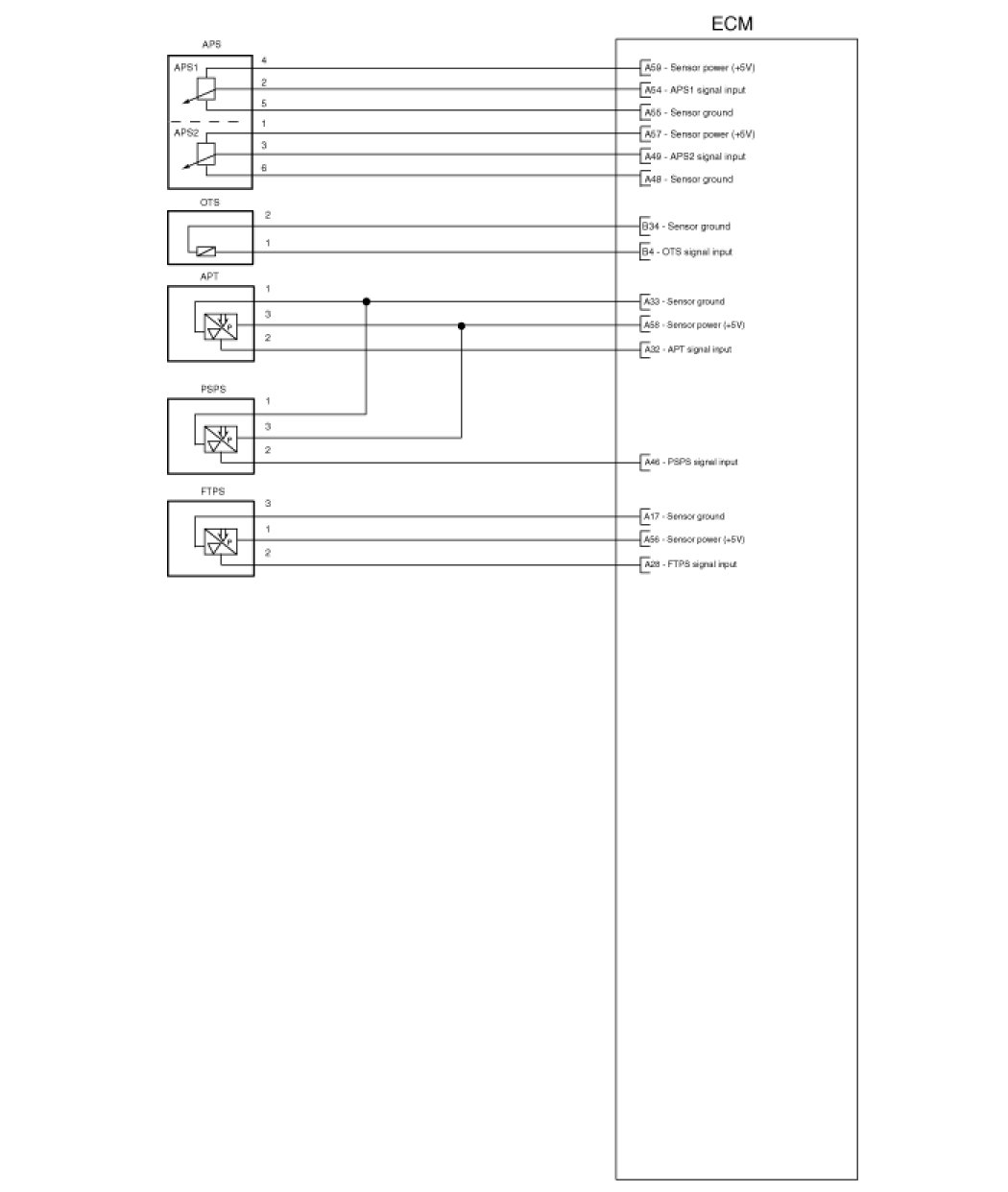

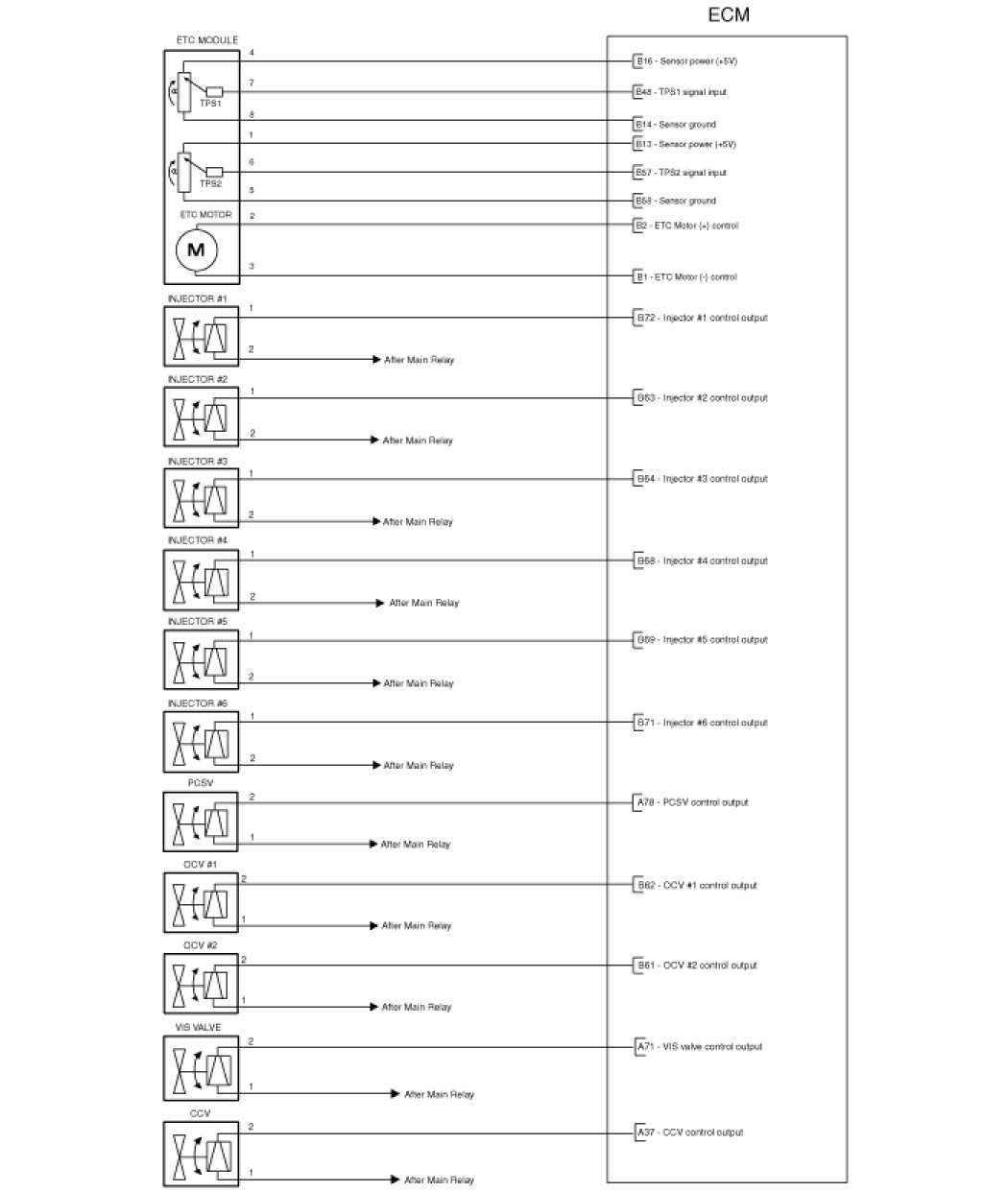

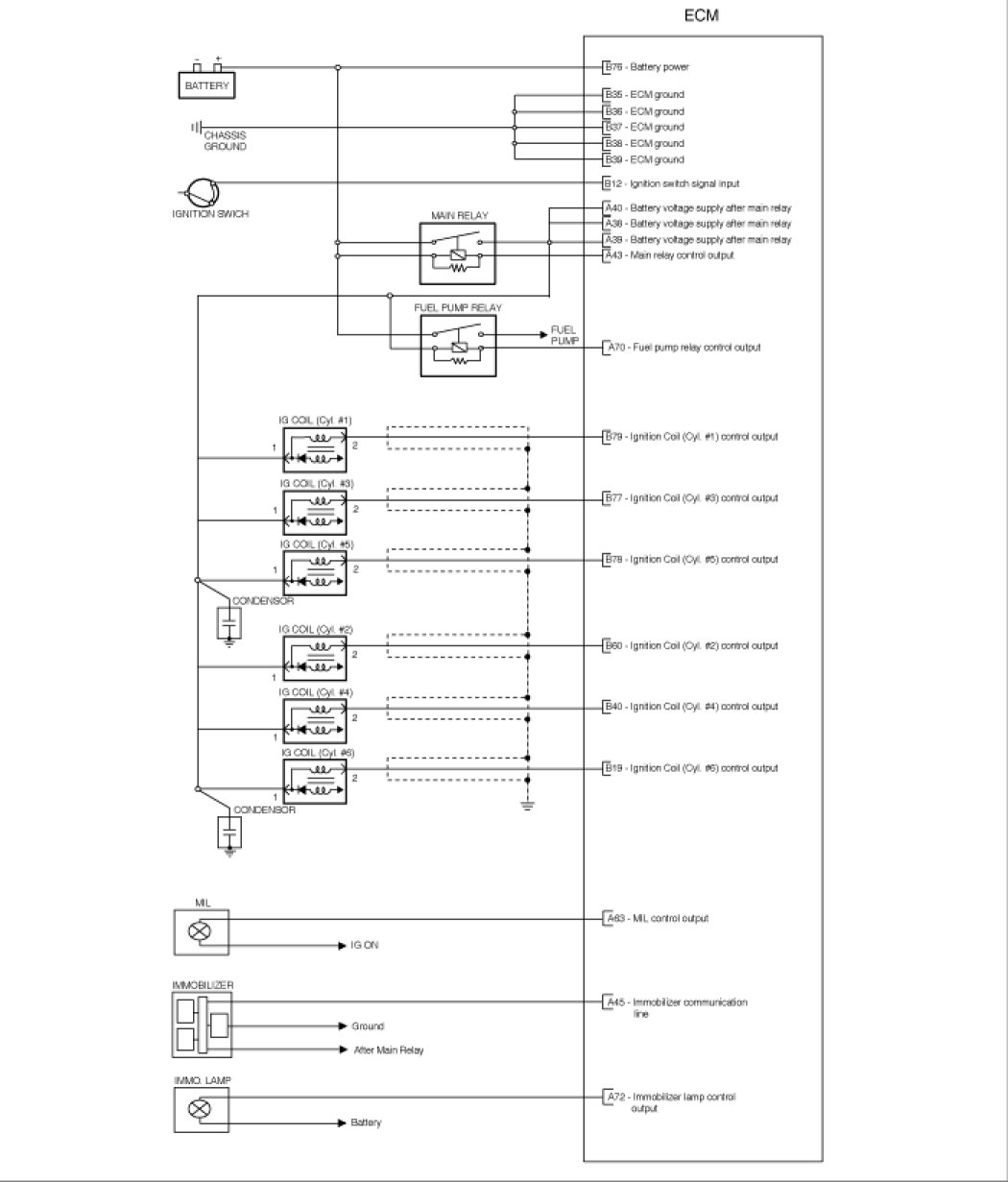

Circuit Diagram
