Repair procedures: Installation

Installation is the reverse of removal.
CAUTION:
- Make sure that no debris falls into the hole (A).

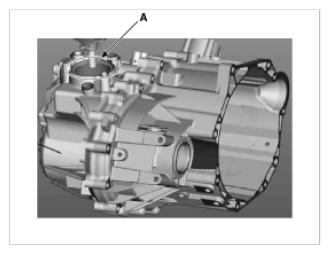

  Fig 1: Identifying Hole On Dual Clutch Transmission Assembly
  Courtesy of HYUNDAI MOTOR AMERICA
- Check the angle of the gear actuator finger (A), and also check whether the transmission lever is in the N position.

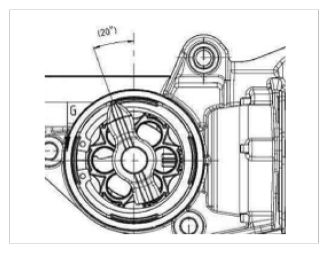

  Fig 2: Checking Angle Of Gear Actuator Finger
  Courtesy of HYUNDAI MOTOR AMERICA
