Repair Procedures (M5GF1): Installation

  1. Installation is the reverse of removal.
  2. Move the slide clip (B) of guide member (A) in the direction as shown.
    NOTE: Adjust the slide clip fit into the select lever moving the slide clip in the direction (C).

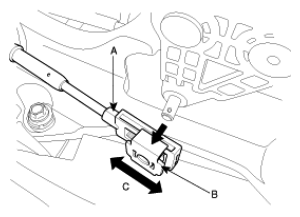

    Fig 1: Moving Slide Clip Of Guide Member
    G06875031Courtesy of HYUNDAI MOTOR CO.
  3. Install the guide member (A) of the select cable (B).
    Fig 2: Identifying Guide Member Of Select Cable
    G06875032Courtesy of HYUNDAI MOTOR CO.
  4. Adjust the slide clip (B) to fit it into the select lever pin (A) and install the snap pin (C).
    NOTE: Insert the slide clip in the direction as shown.
    Fig 3: Inserting Slide Clip
    G06875033Courtesy of HYUNDAI MOTOR CO.
