Tucson GL, Automatic Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System Diagnosis (1 Of 3)
>>
DTC P0136: O2 Sensor Circuit (Bank 1/Sensor 2)
>>
General Information
>>
Diagnostic Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Diagnostic Circuit Diagram

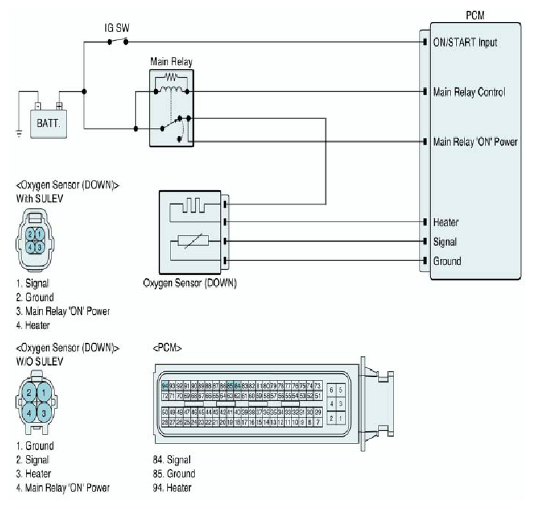

Fig 1: Oxygen Sensor (Bank 1/Sensor 2) Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
