Hyundai
>>
2012
>>
Sonata GLS, Standard Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System - 2.4L (Except HEV)
>>
Variable Intake Solenoid (VIS) Valve
>>
Schematic Diagrams
>>
Circuit Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Circuit Diagram

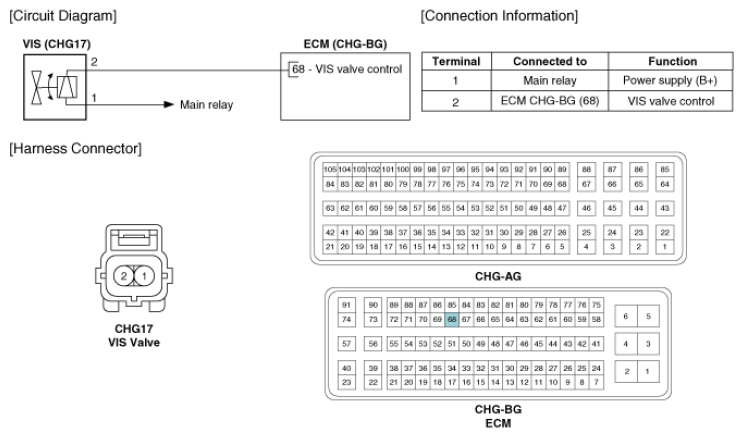

Fig 1: VIS Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
