Exhaust Manifold

Exhaust Manifold

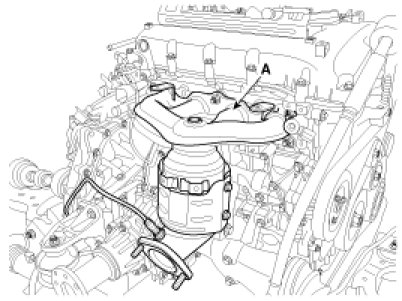

Loosen the exhaust manifold stay bolts, and then remove the exhaust manifold (A).

Tightening torque
Stay bolts 51.9 - 57.9N.m (5.3 - 5.9kgf.m, 38.3 - 42.7lb-ft)
Manifold nuts 49.0 - 53.9N.m (5.0 - 5.5kgf.m, 36.2 - 39.8lb-ft)
