Axle Shaft Assembly

Specification

BJ : Birfield Joint
PTJ : Pillow journal Tri-pot Joint
EUJ : high Efficiency Undercut-free Joint
ETJ : high Efficiency Tri-pot Joint

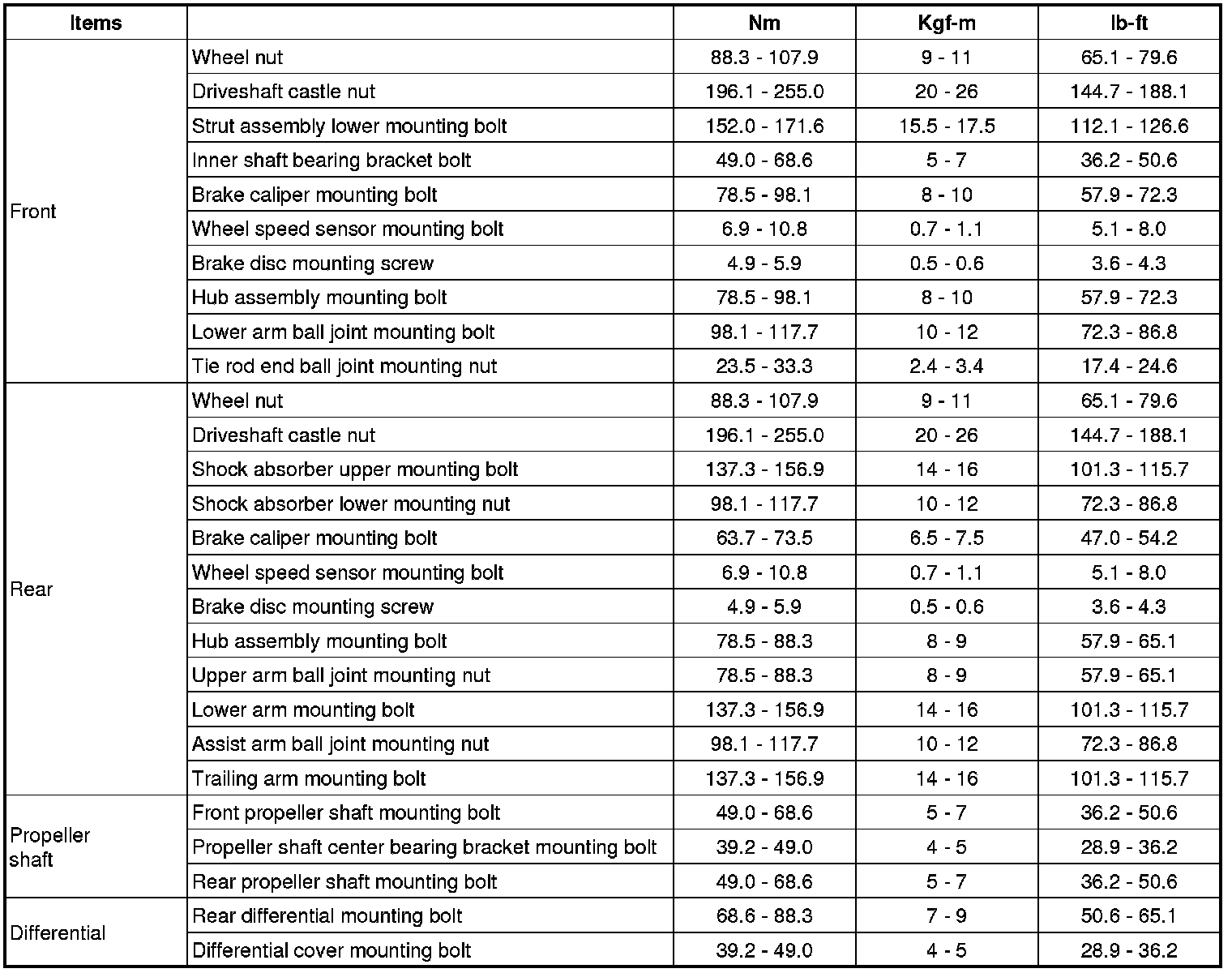

Tightening Torque

CAUTION:
Replace self-locking nuts with new ones after removal.

Lubricants
