Repair Procedures

Replacement

1. Disconnect the negative (-) battery terminal.

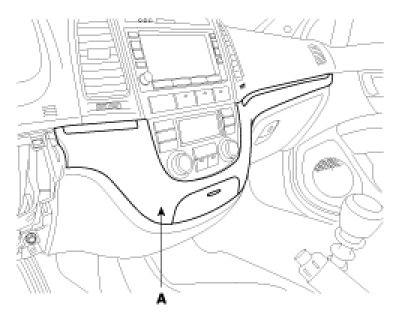

2. Remove the crash pad center lower garnish(A).

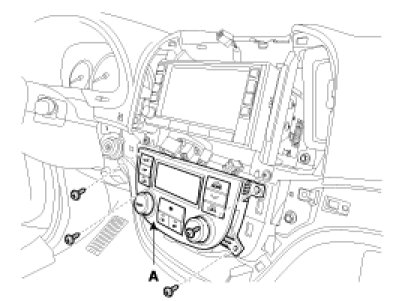

3. Remove the heater & A/C controller (A) after loosening 4 screws.

4. Disconnect the connector(A).

5. Installation is the reverse order of removal.
