Control Module, A/T





1. TCM connector and terminal function

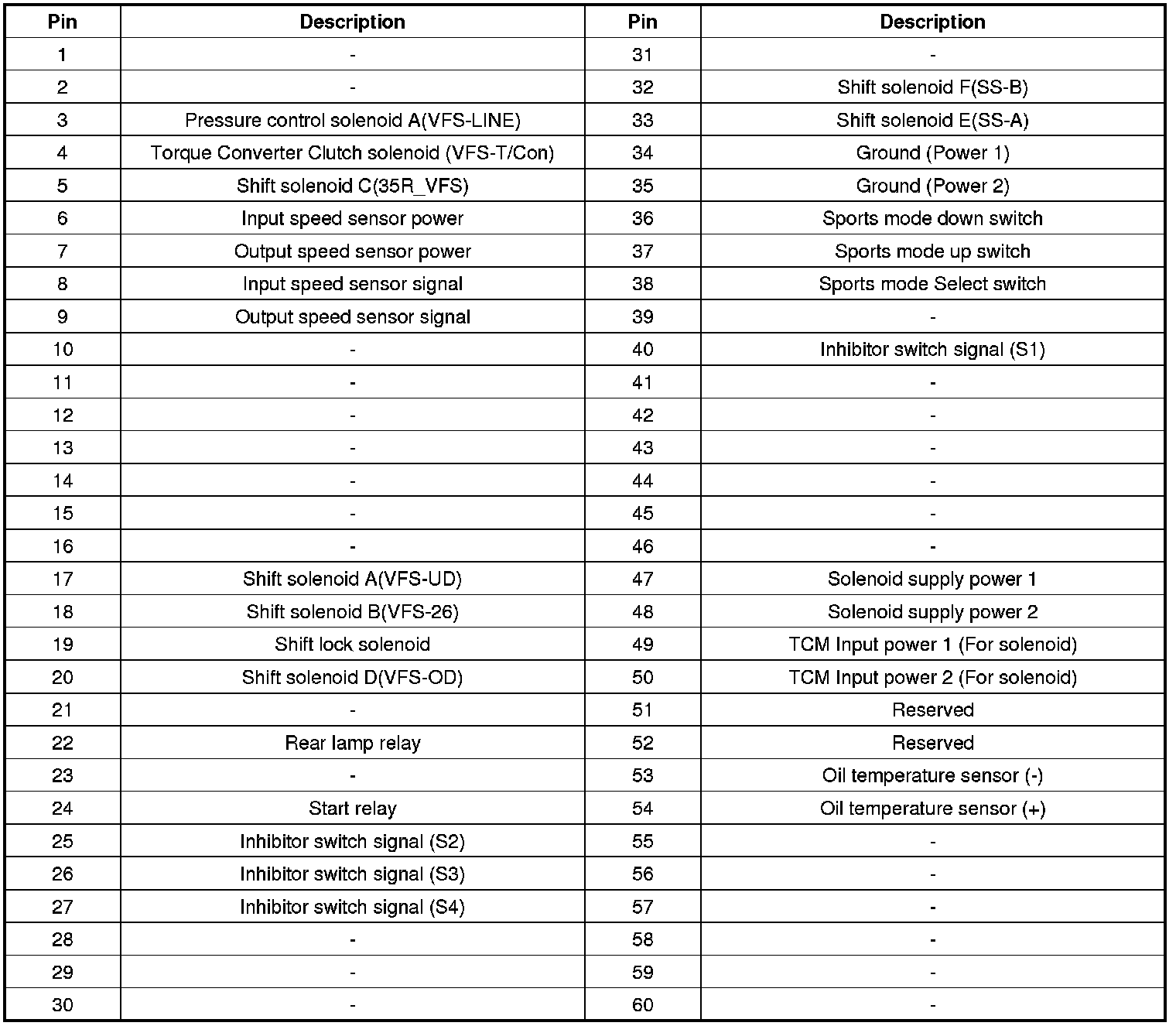

2. TCM terminal function

Connector [CHG-A]





Connector [CHG-K]






3. TCM Terminal input/ output signal

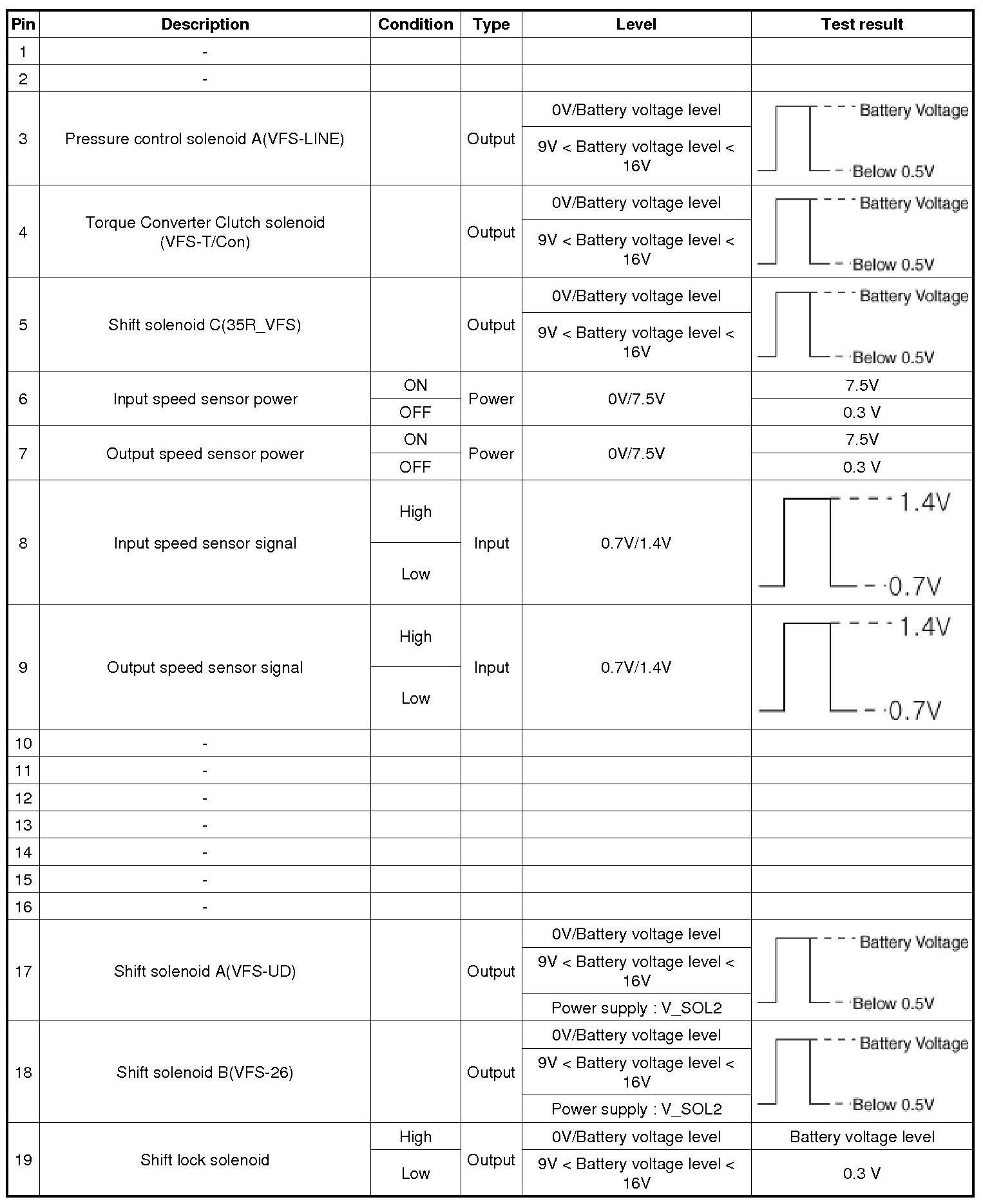

Connector [CHG-A]

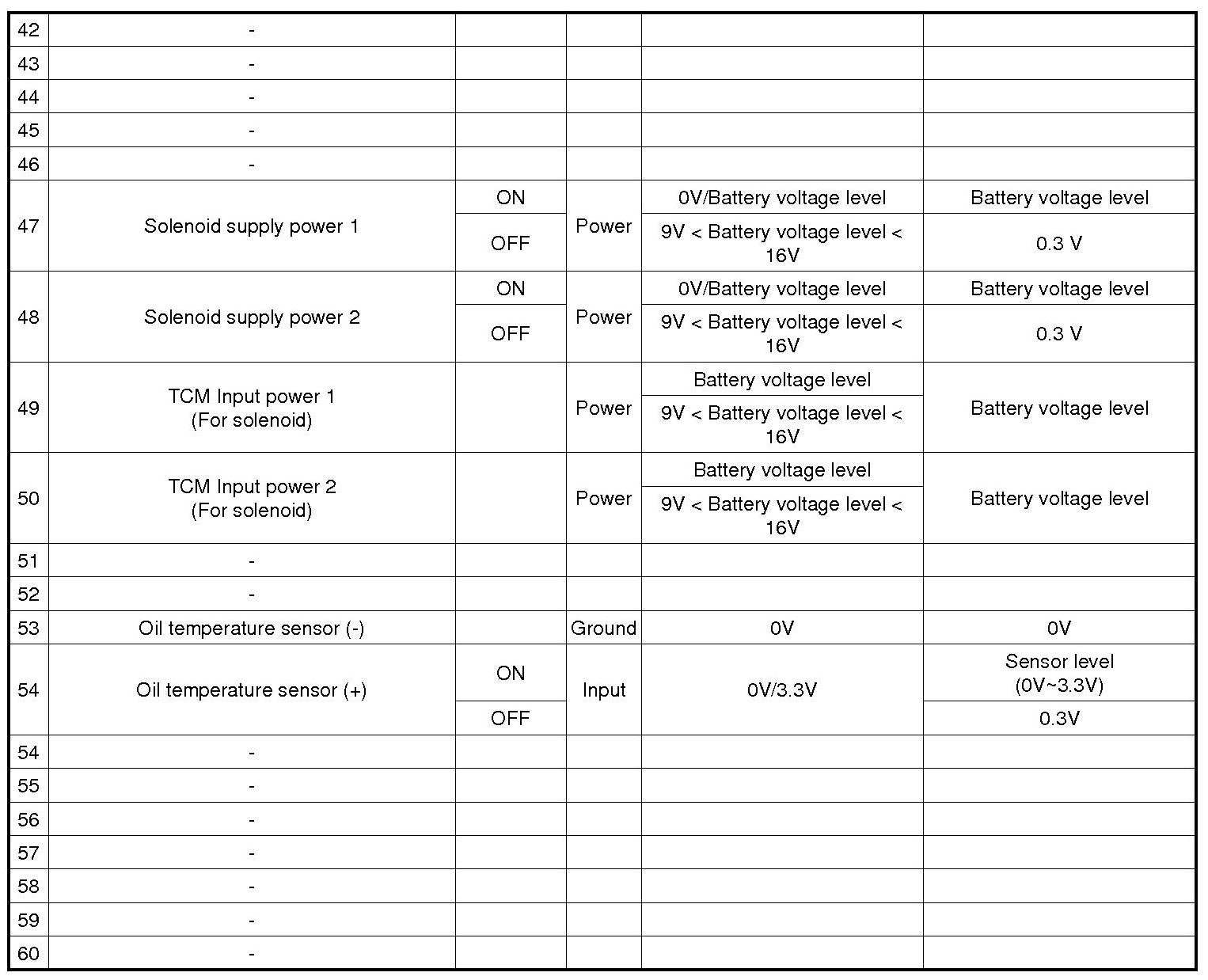

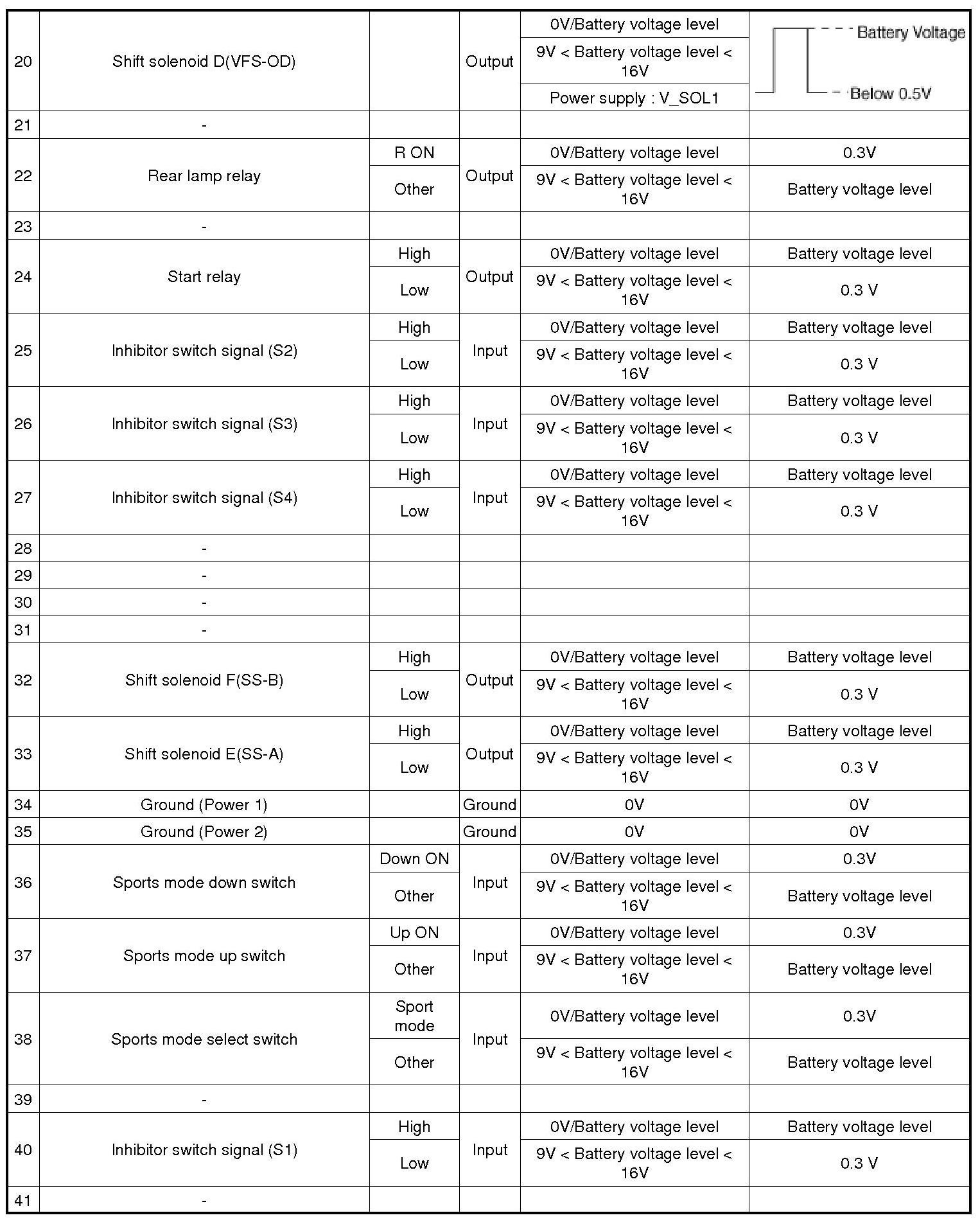

Connector [CHG-K]
