Antilock Brakes / Traction Control Systems

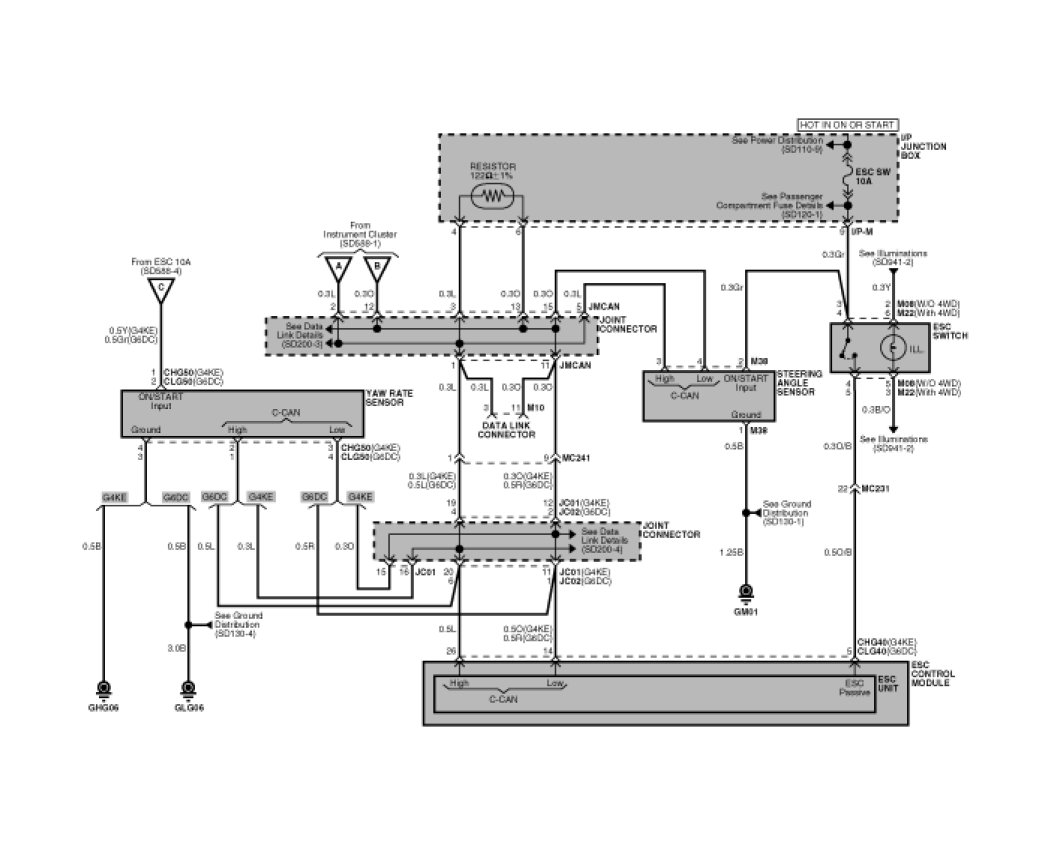

Circuit Diagram - ESC(1)

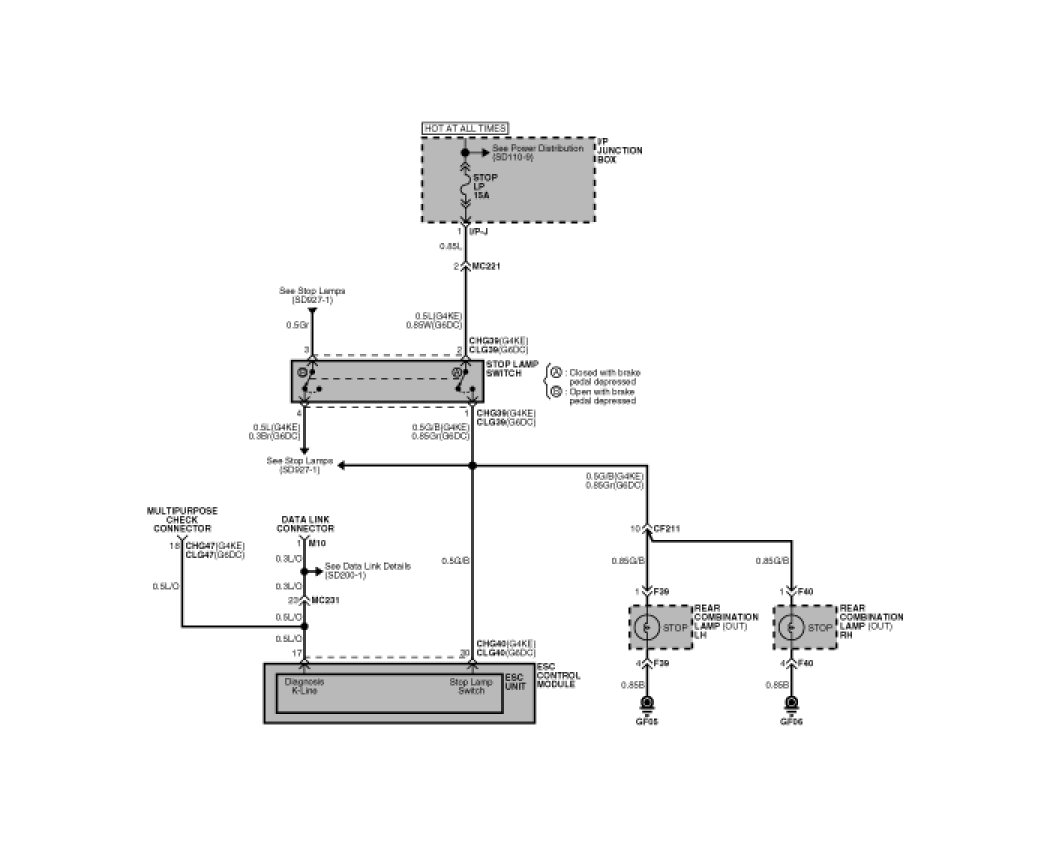

Circuit Diagram - ESC(2)

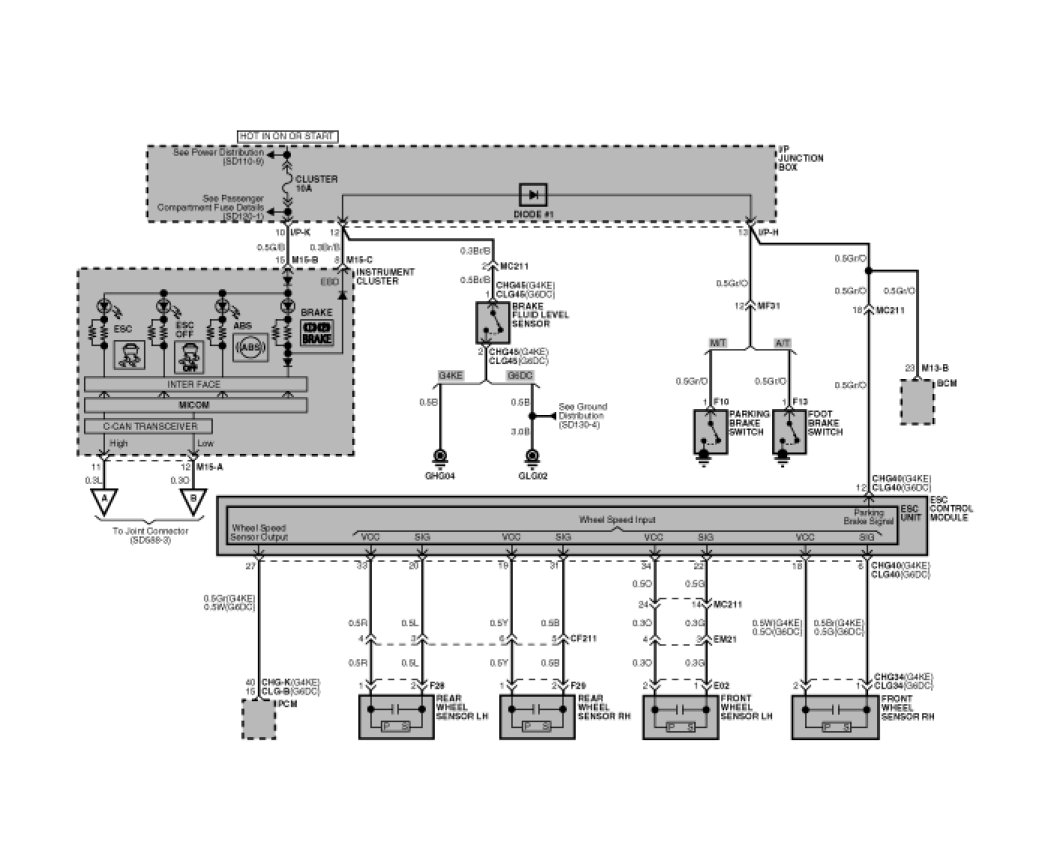

Circuit Diagram - ESC(3)

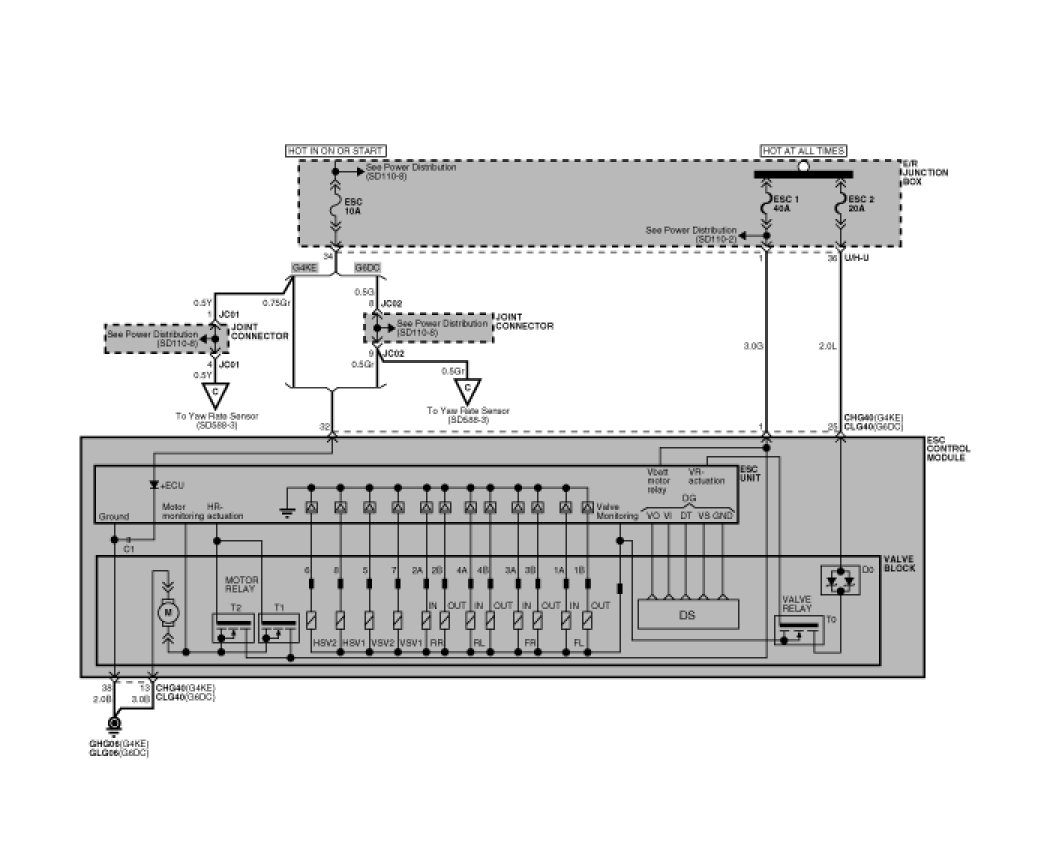

Circuit Diagram - ESC(4)

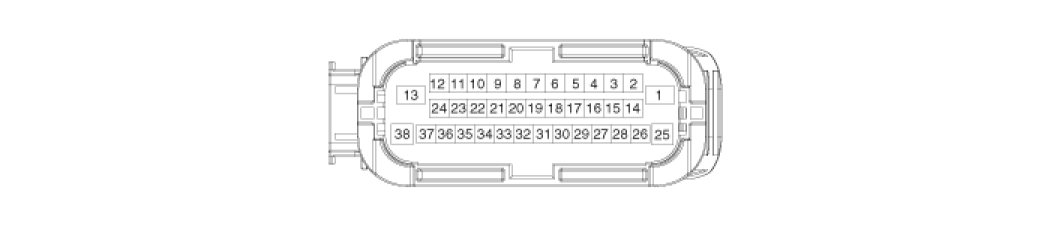

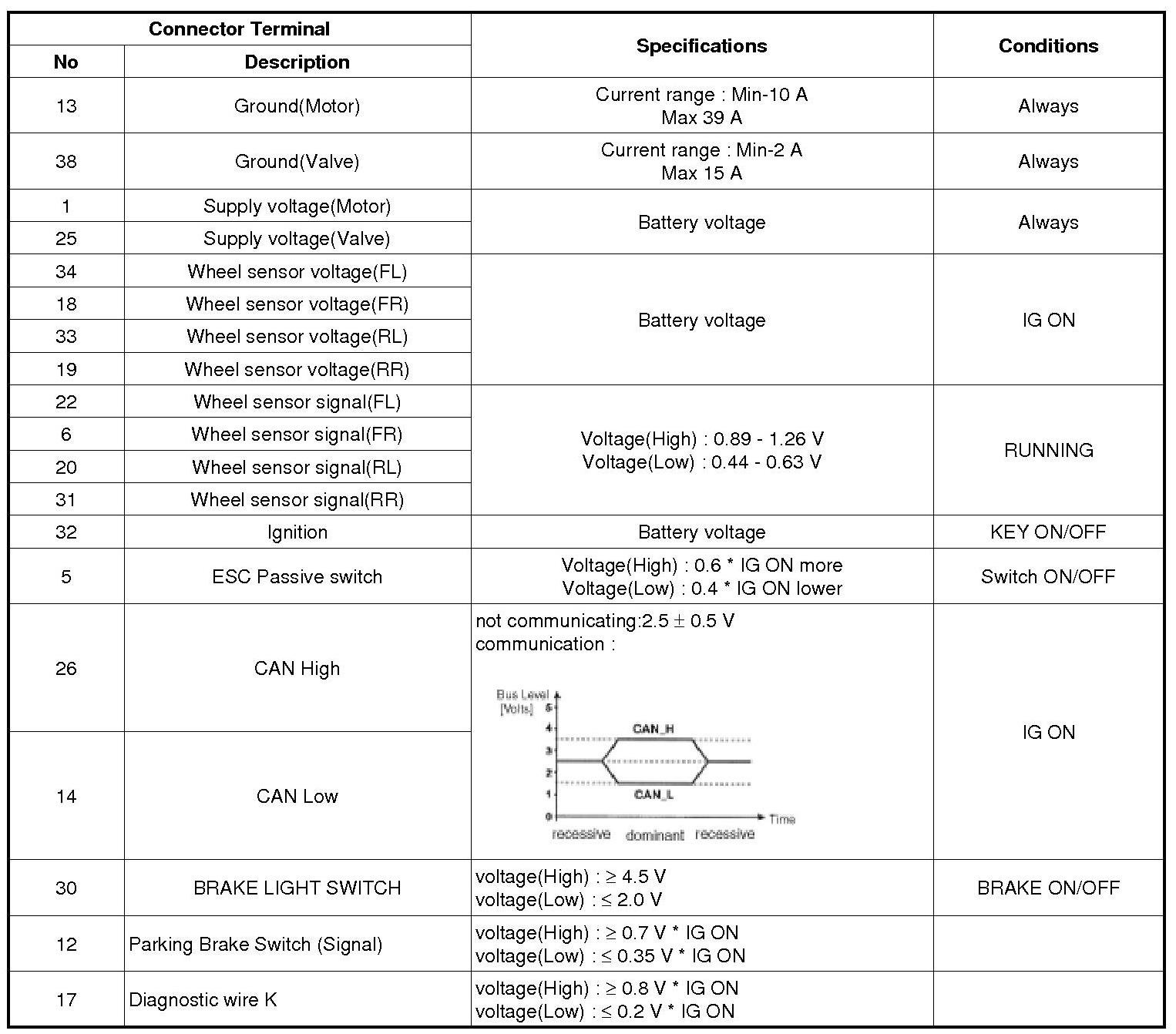

ESC HECU Connector input/output
