Alarm Module: Service and Repair

Replacement

1. Disconnect the negative (-) battery terminal.
2. Remove the crash pad.

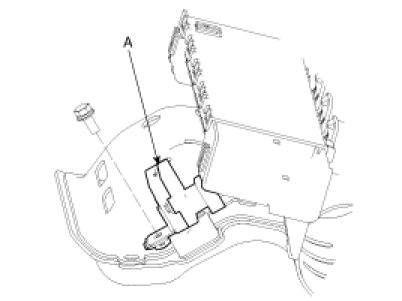

3. Disconnect the 5P connector of the SMARTRA unit and then remove the SMARTRA unit (A) mounted on the left side cowl cross bar after loosening a shear bolt.

4. Installation is the reverse of removal procedure.
