Water Pump





Water Pump

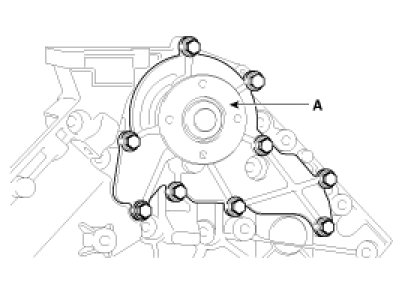

Install the water pump (A).

Tightening torque 19.6 - 24.5N.m (2.0 - 2.5kgf.m, 14.5 - 18.1lb-ft)
