Fuel Injector Control Module





IDB terminal and Inoutput

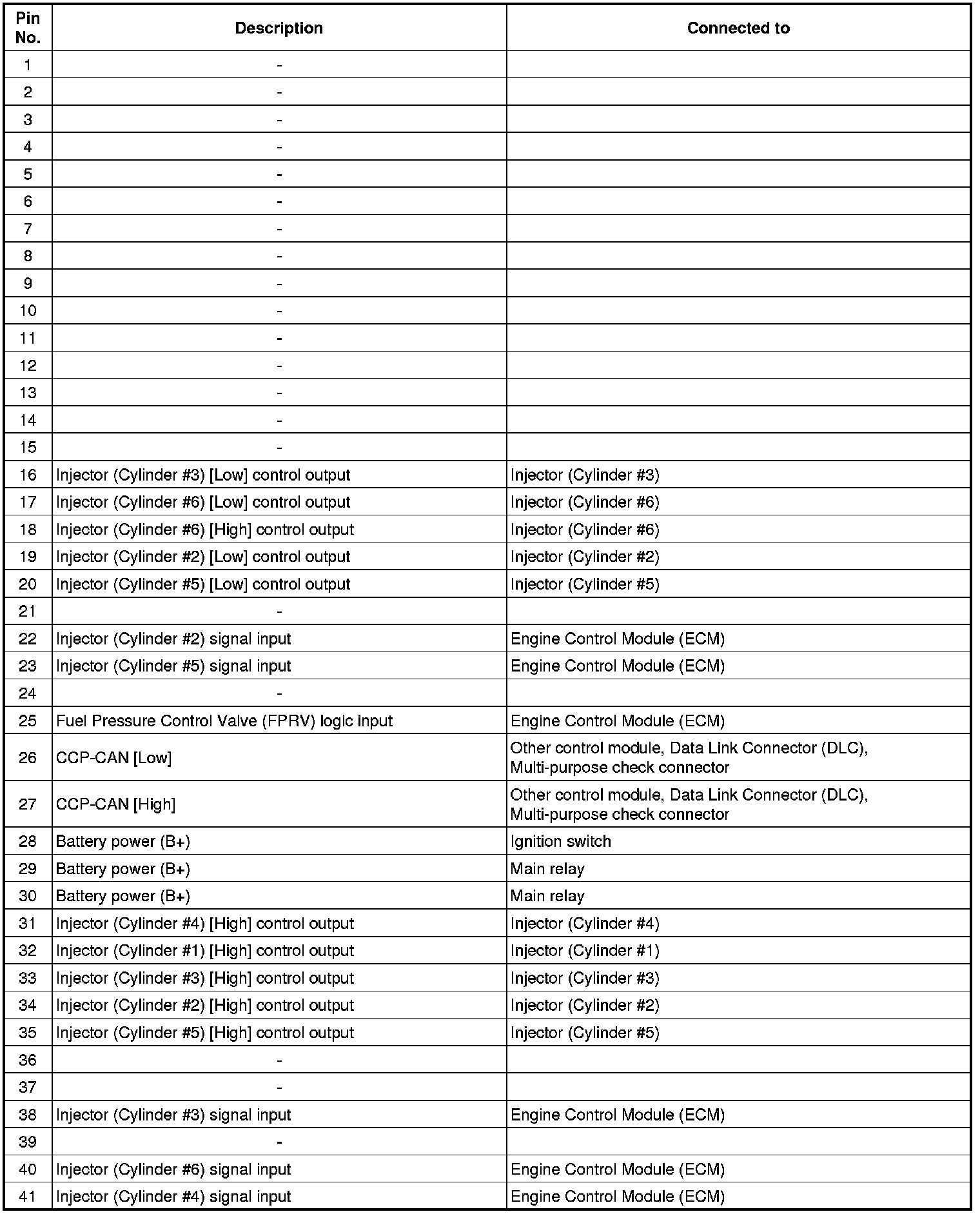

IDB terminal function

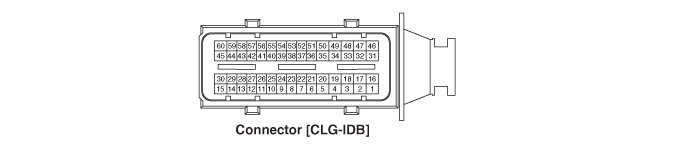

Connector [CLG-IDB]

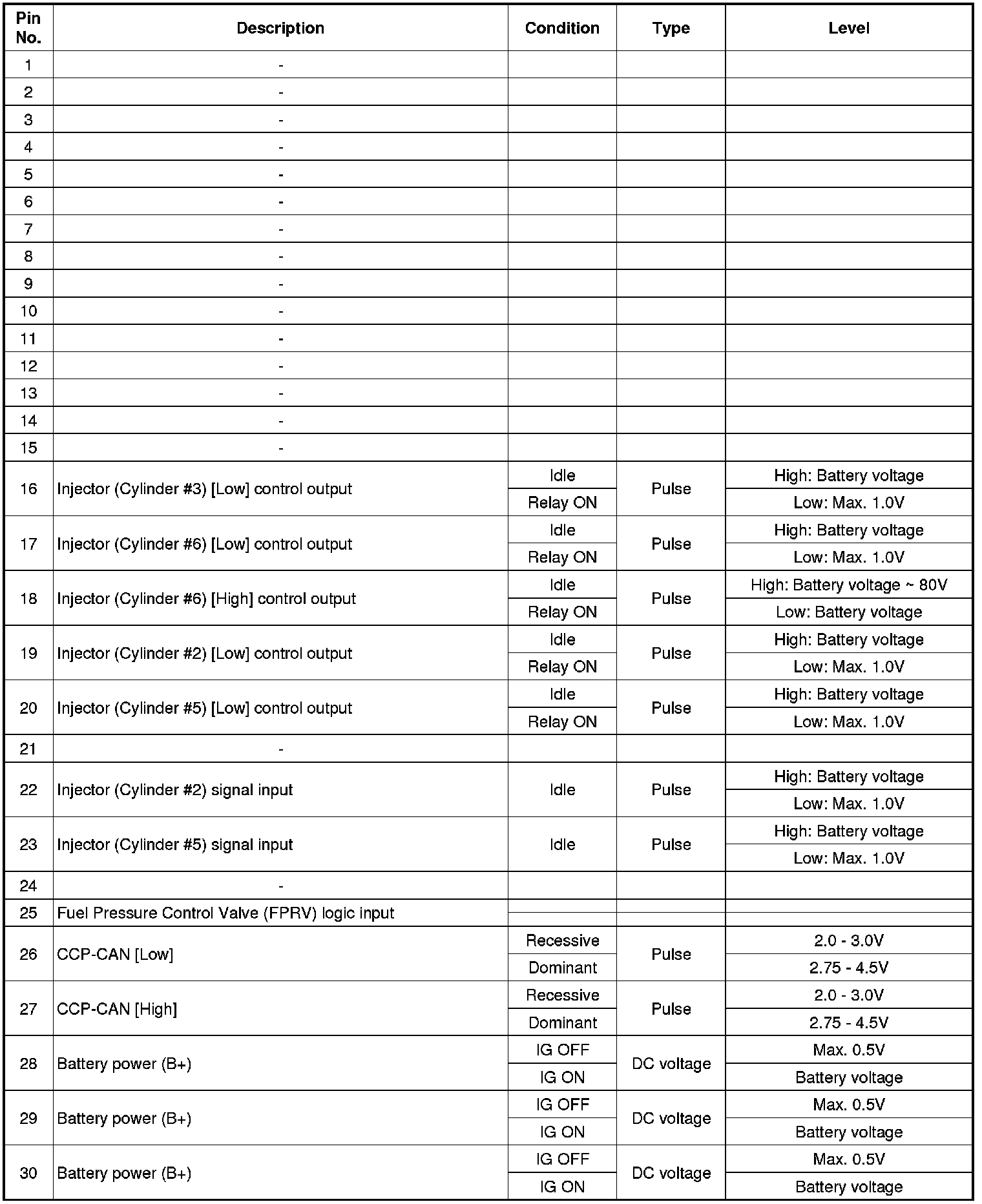

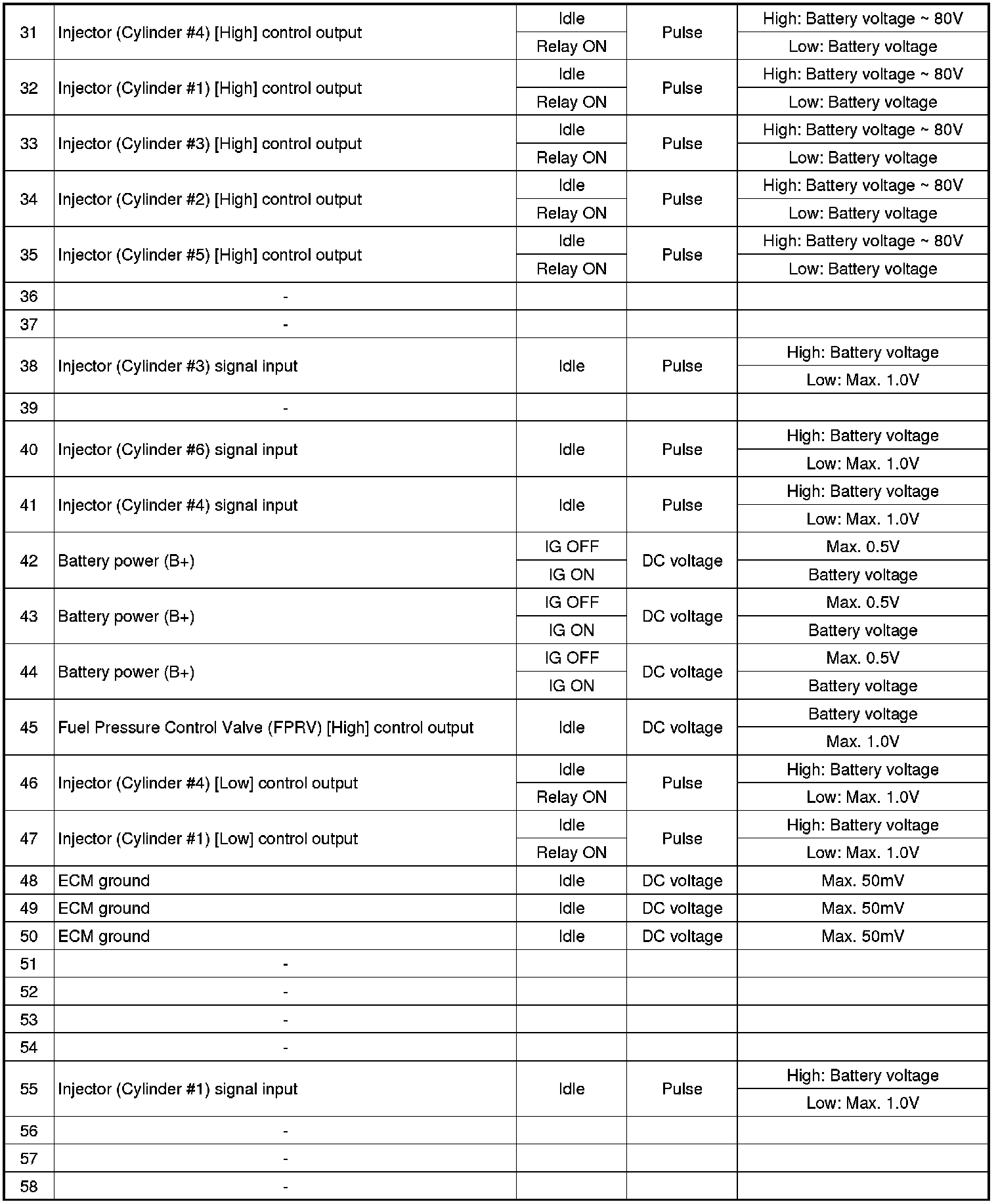

IDB Terminal input/output signal
Connector [CLG-IDB]

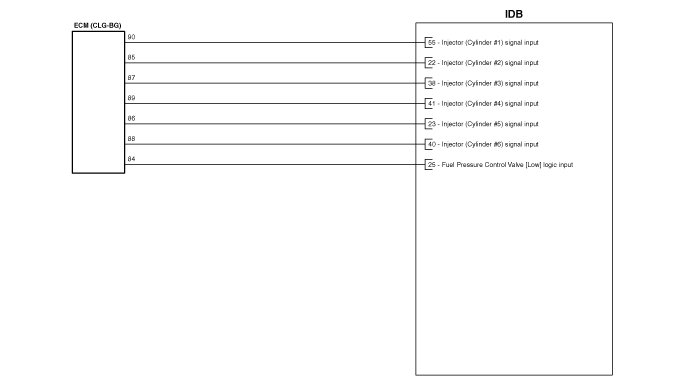

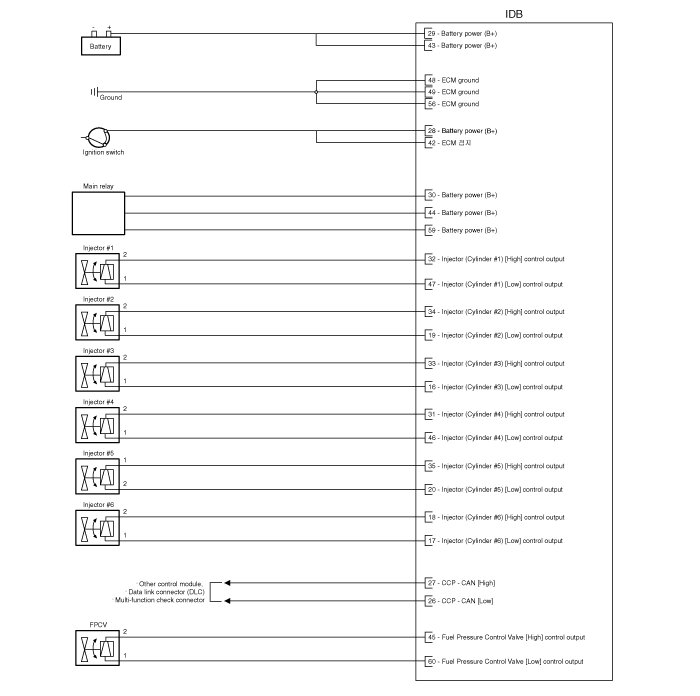

Circuit Diagram
