Front Fender: Service and Repair

Replacement

NOTE:
- Be careful not to damage the hood and body.
- Use a clip remover when removing clips.

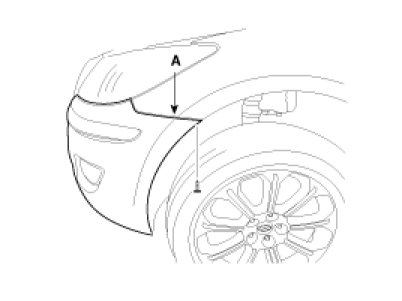

1. Remove the front bumper mounting screw (A).




2. Loosening the fender mounting screws (A).




3. Remove the side seal garnish.

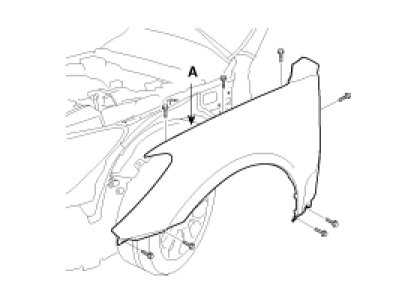

4. After loosening the fender mounting bolts, remove the fender (A).




5. Installation is the reverse of removal.
