Engine Control System - 3.8L
>>
ETC (Electronic Throttle Control) System
>>
Schematic Diagrams
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram

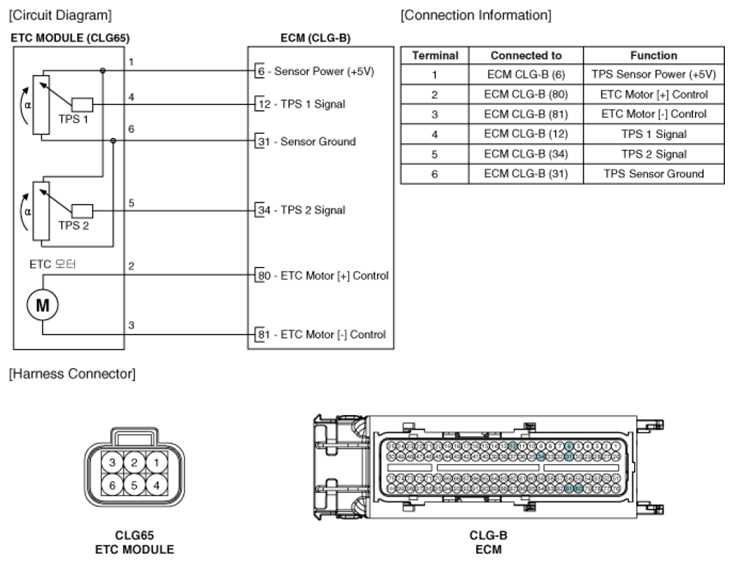

Fig 1: ETC Module - Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
