Hyundai
>>
2012
>>
Genesis Coupe 2.0T, Automatic Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System - 2.0L
>>
WGT Control Solenoid Valve
>>
Schematic Diagrams
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram

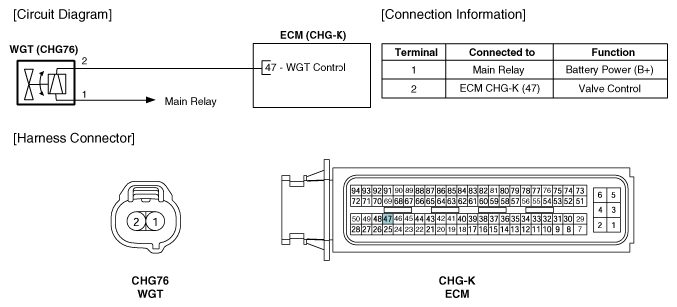

Fig 1: WGT Control Solenoid Valve Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
