Components and Components Location: Components

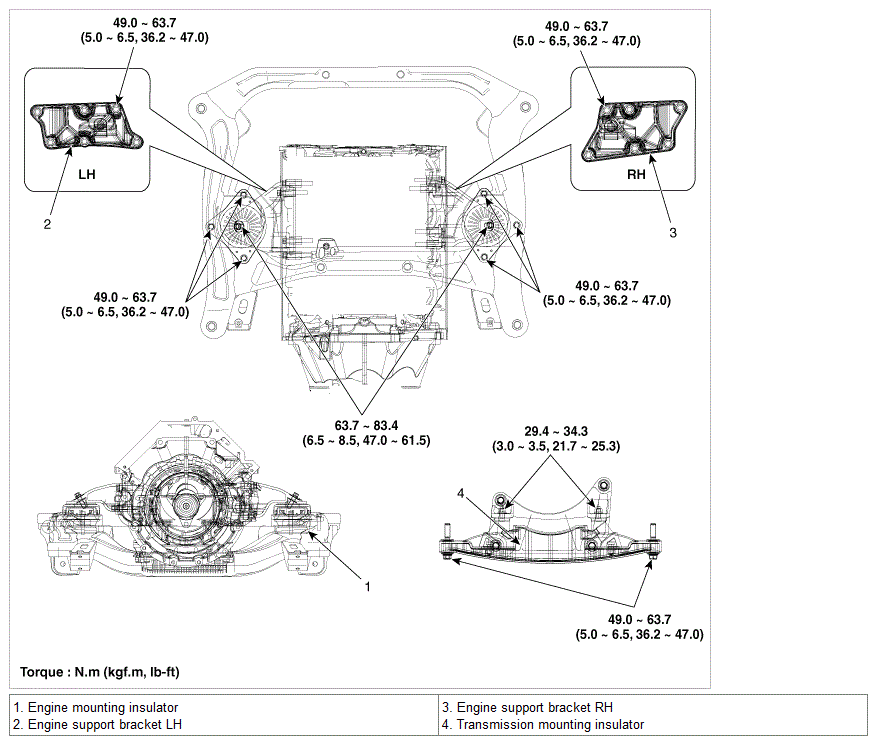

Fig 1: Engine And Transmission Assembly Mountings With Torque Specifications
G08822227Courtesy of HYUNDAI MOTOR AMERICA
