Genesis 4.6
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System - 4.6L
>>
ETC (Electronic Throttle control) System
>>
Schematic Diagrams
>>
Circuit diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit diagram

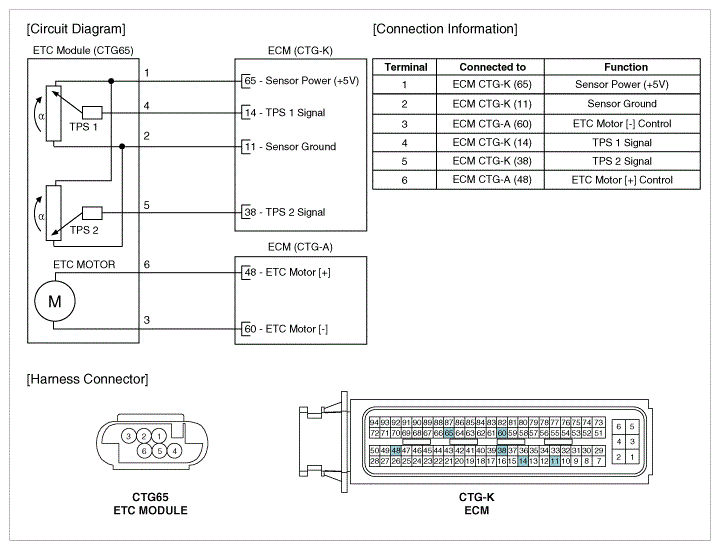

Fig 1: Electronic Throttle Control System Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
