Chart 2

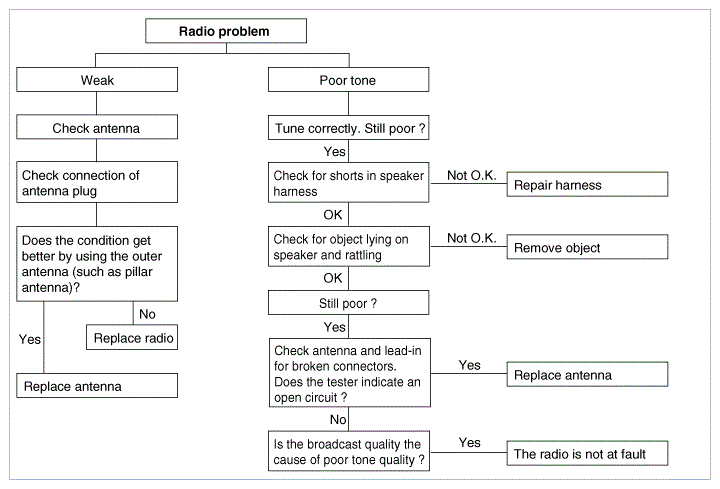

Fig 1: Body Electrical System Troubleshooting Flowchart (Chart 2)
Courtesy of HYUNDAI MOTOR AMERICA
