Oxygen Sensor: Testing and Inspection

Wave Form

Fig.1) The signal waveforms of front HO2S(the upper) and heater(the lower) at idle

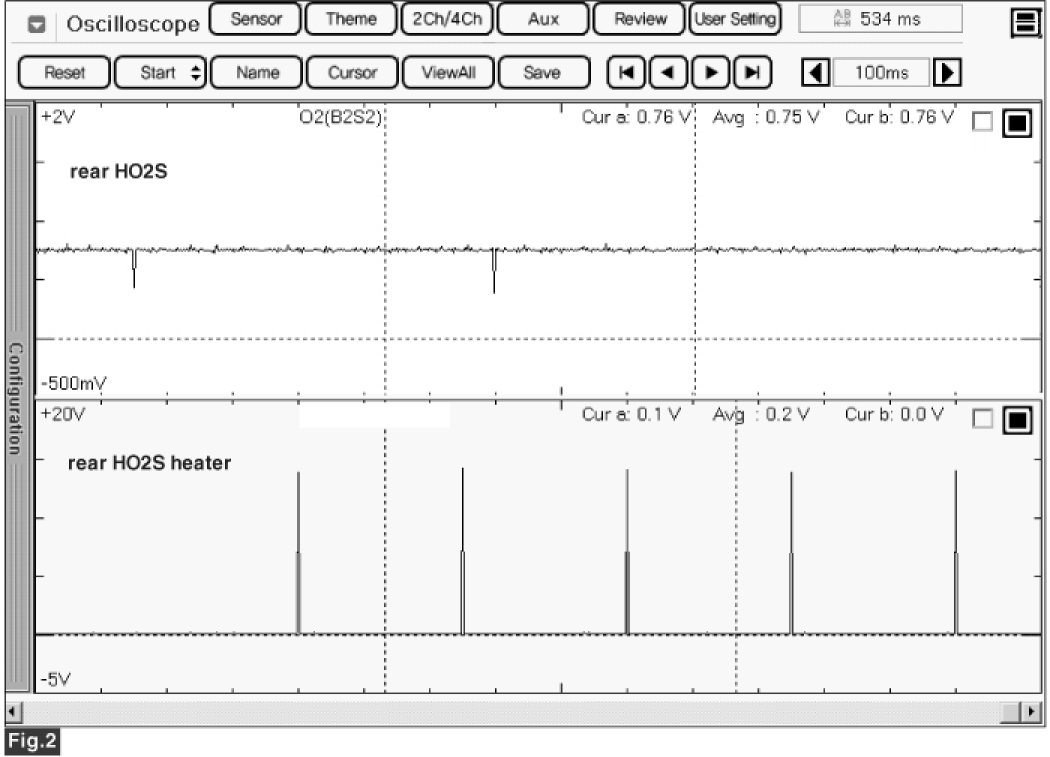

Fig.2) The signal waveforms of rear HO2S(the upper) and heater(the lower) at idle

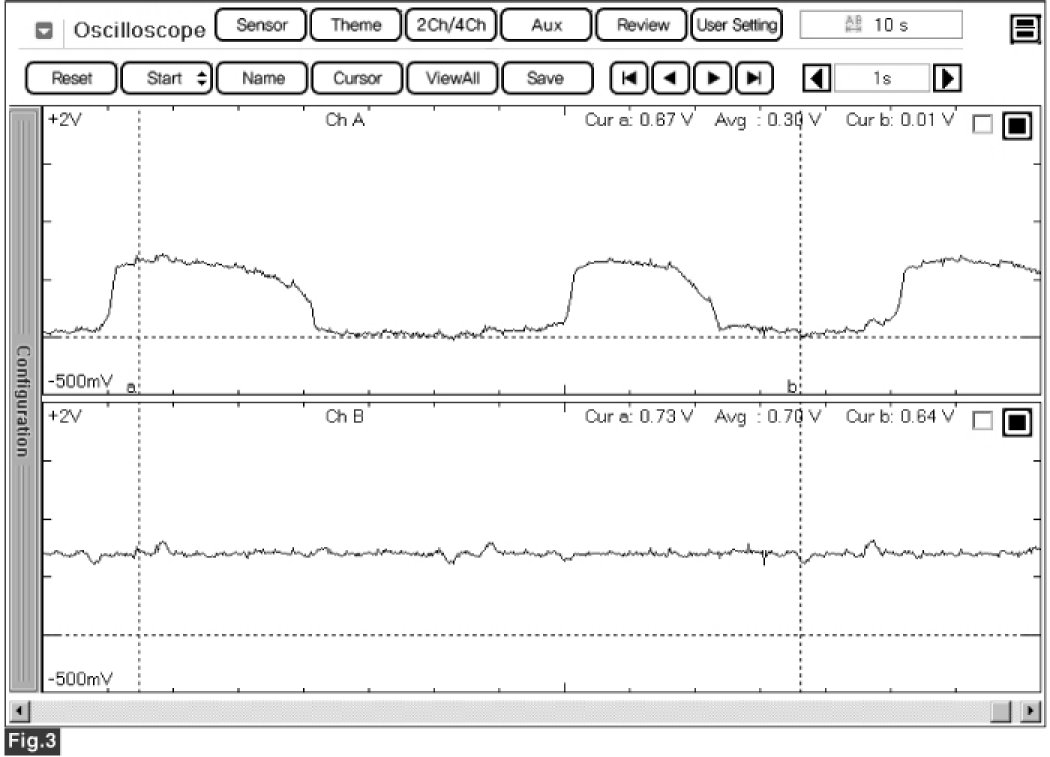

Fig.3) Typical waveforms of front HO2S(the upper) and rear HO2S(the lower).
