Control Module, A/T





1. TCM Connector and Terminal Function

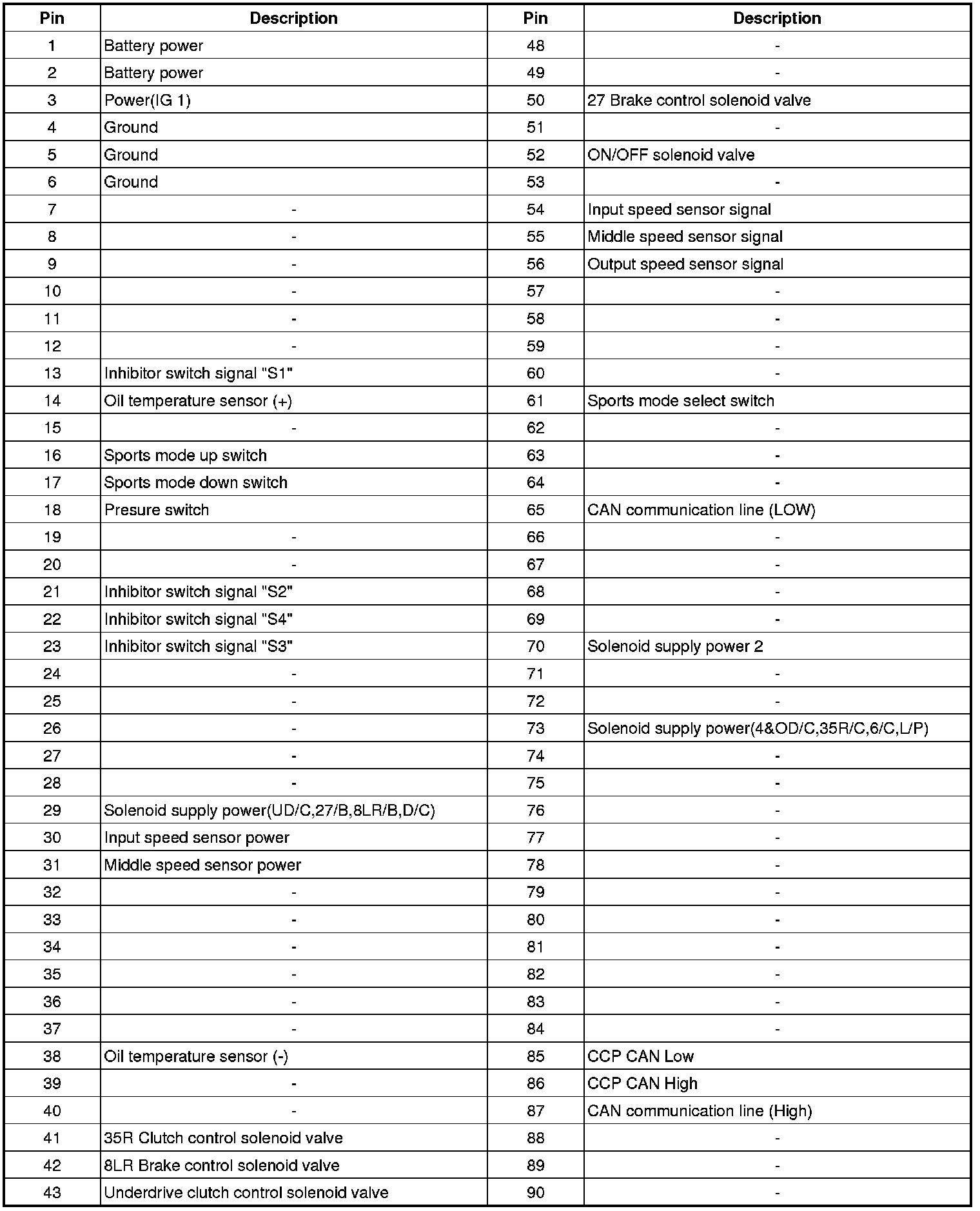

2. TCM Terminal Function

Connector [CTG-TG]

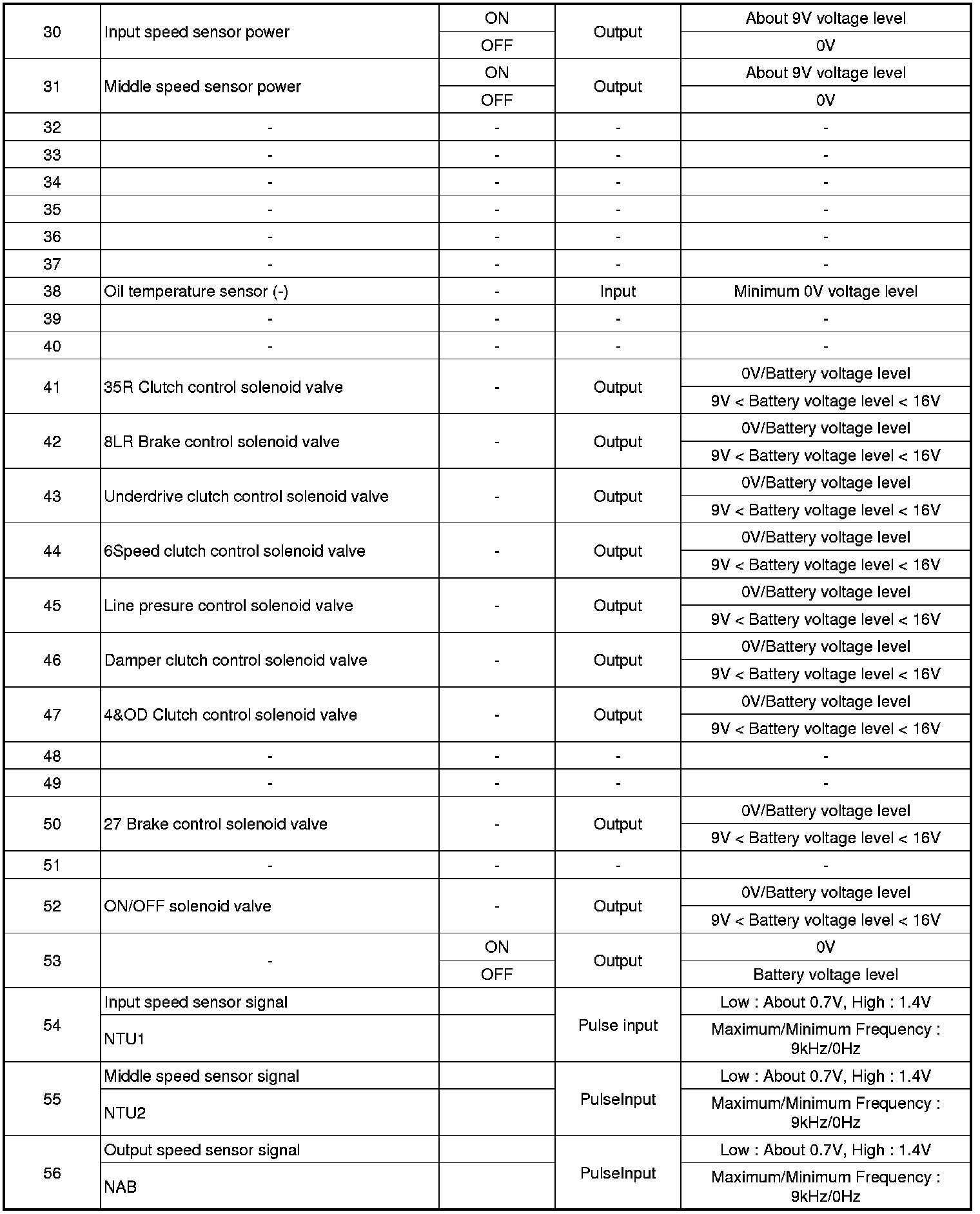

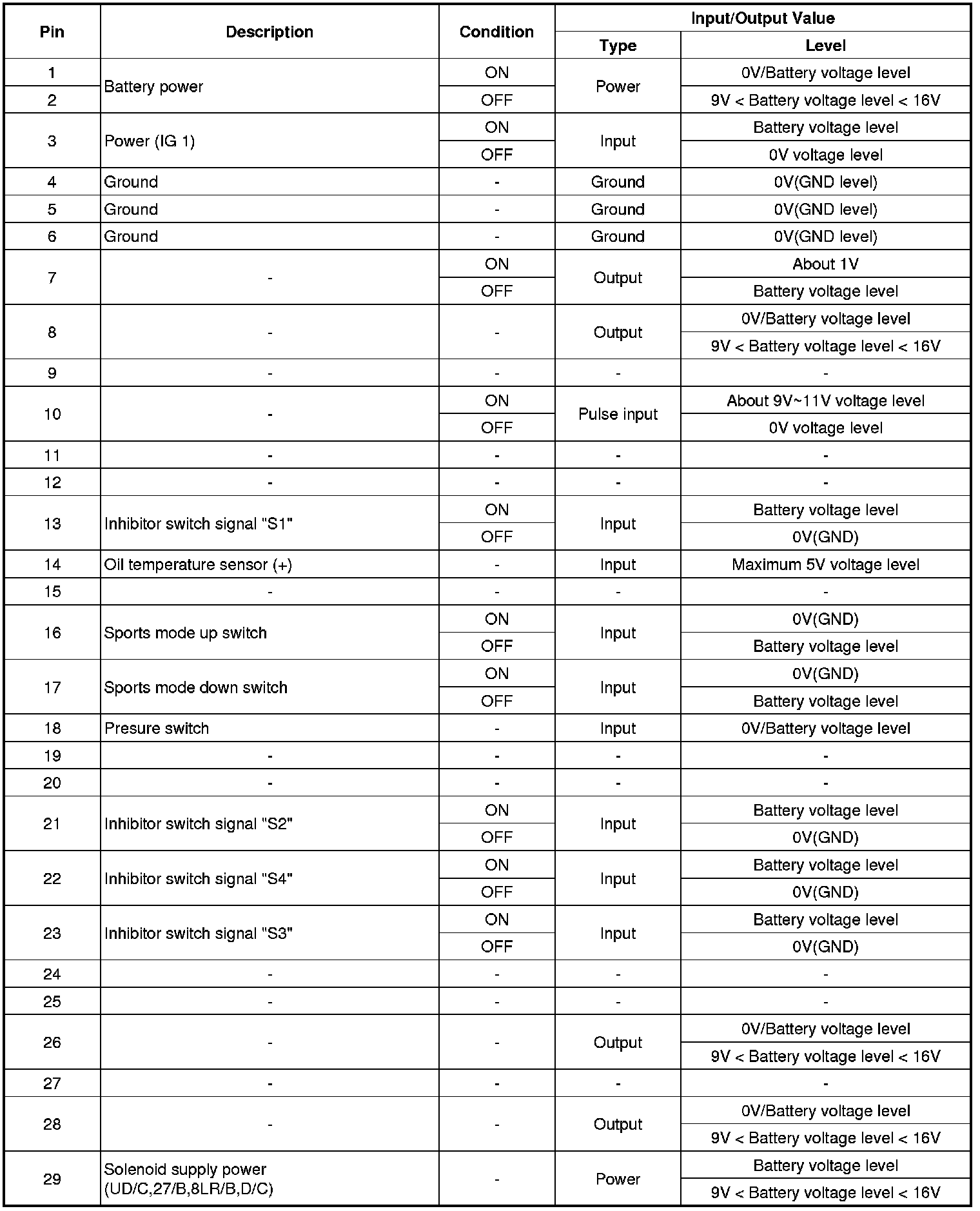

3. TCM Terminal input/output signal
